User Manual for Telefunken AR-70 Stereo Tube Condenser Microphone with Case Click to enlarge the picture
Contents of the user manual for the Telefunken AR-70 Stereo Tube Condenser Microphone
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken AR-70 Stereo Tube Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

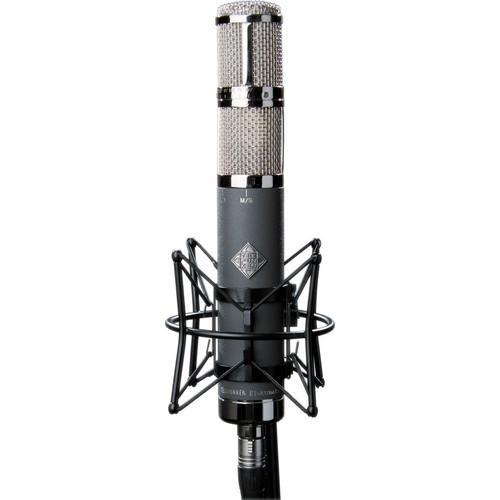

Product description The AR-70 Stereo Tube Condenser Microphone with Case from Telefunken features a matched pair of large diaphragm, dual-sided TK51D capsules, a NOS ECC81 vacuum tube, and a matched pair of German-built, custom-wound T14/1 output transformers.
The AR-70 Stereo includes one fixed cardioid capsule on the bottom, and on top, a capsule wired for remote multi-polar pattern capabilities. This allows the mic to perform multiple stereo recording techniques, as well as a standard single-channel monophonic recording. In stereo mode, the microphone can be set up in standard X/Y configuration, with each capsule orientated 90 degrees from one another. It can also be utilized in Mid-Side (M/S) technique, where the lower capsule is fixed in cardioid, and the upper capsule is rotated 90 degrees and set to the Figure 8 pick-up pattern. The AR-70 Stereo can even be used in "dual mono" mode, which opens up a realm of creative potential.
The AR-70 Stereo microphone includes a flight case, custom 7-pin cable, wooden mic box, and a power supply with remote polar pattern selector. - "Dual Mono" Capsule Configuration
- Using the AR-70's capsules in dual mono, you can utilize drastically different settings on two preamplifiers to create creative and interesting sonic combinations.
UPC: 899051002039 In the Box Telefunken AR-70 Stereo Tube Condenser Microphone with Case Power Supply with Remote Polar Pattern Selector Custom 7-Pin Cable Wooden Mic Box Flight Case Limited 1-Year Warranty* (Parts and Labor for the Capsule and Tube) Limited 4-Year Warranty * When Warranty Card is Filled Out and Registered Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken AR-70 Stereo Tube Condenser Microphone with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken AR-70 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 8.5 dB A-Weighted | | Maximum SPL | 128 dB SPL | | THD | 0.2% | | Impedance | 250 Ohms | | Sensitivity | 13 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 250 mA | | Length | 9.49" / 241 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 1.68 lb / 765 g | | | | Package Weight | 31.6 lb | | Box Dimensions (LxWxH) | 26.0 x 24.5 x 11.7" |
