User Manual for Telefunken CU-29 Copperhead Cardioid Tube Condenser Microphone with Flight Case Click to enlarge the picture
Contents of the user manual for the Telefunken CU-29 Copperhead Cardioid Tube Condenser
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken CU-29 Copperhead Cardioid Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

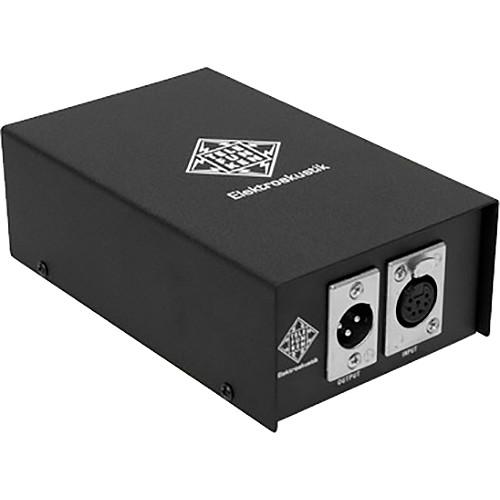

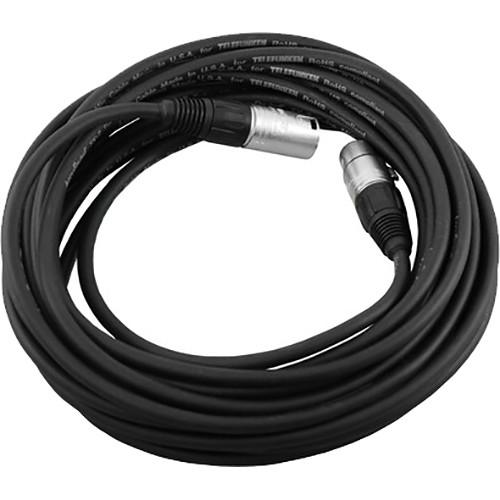

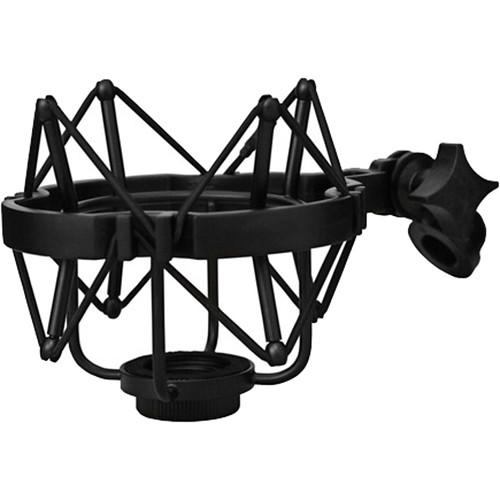

Product description The Telefunken CU-29 Copperhead Cardioid Tube Condenser Microphone with Flight Case is an R-F-T Series large-diaphragm tube condenser mic with a hardshell flight case designed to deliver versatility and full-range frequency reproduction of vocals and instruments for musicians, recordists, and audio engineers in home, project, and commercial recording studios. It features a 1" single-membrane, center-terminated capsule with a cardioid polar pattern. An NOS 6AK5W vacuum tube and Lundahl LL1935 output transformer contribute to the CU-29's tone, which yields low-frequency clarity and smooth, pristine highs. Its 20 Hz to 20 kHz frequency response and maximum SPL of 130 dB enable it to handle anything from soft vocals and delicate piano to pounding drums and blaring horns.The CU-29, its external power supply, proprietary 7-pin cable, and shockmount fit securely in the high-density foam interior of the rugged flight case, which is lockable, airtight, and waterproof up to a 3' depth. An automatic pressure equalization valve in the case ensures proper pressure at a variety of altitudes. - CU-29 Copperhead Tube Condenser Microphone The CU-29 Copperhead Tube Condenser Microphone from Telefunken is a part of their R-F-T line of coveted tube condenser microphones, and is a viable option for crucial recording of vocals and instruments. The CU-29 features a single-membrane version of the large diaphragm capsule used in the AR-51 and AK-47 Mk II microphones. The capsule reproduces audio with presence and detail. The Telefunken EF-95 vacuum tube output stage adds warmth and a wide frequency response. The microphone's cardioid polar pattern controls off-axis feedback and noise.
- The CU-29 Copperhead employs a single-membrane version of the large diaphragm capsule used in the AR-51 and AK-47 MkII microphones
- Hi-fidelity microphone with a "present" but not "harsh" character, with clarity and detail, but entirely devoid of the "bite" usually found in microphones in this price range
- The R-F-T line of tube condenser microphones utilizes American designed electronics in conjunction with New Old Stock tubes and standardized parts from overseas manufacturers

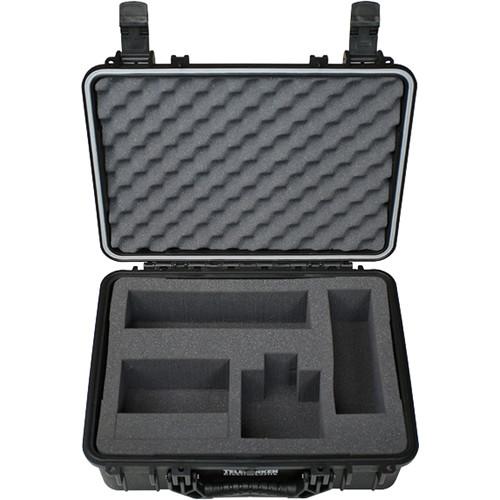

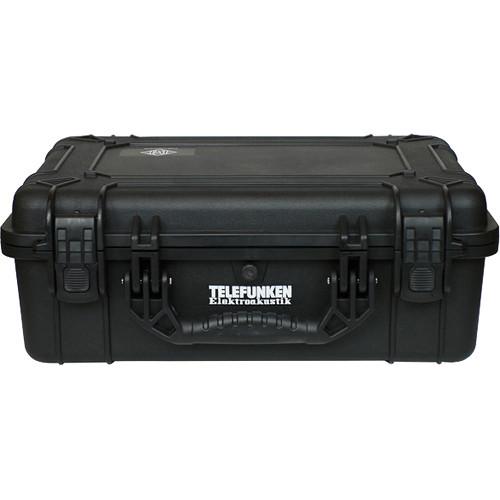

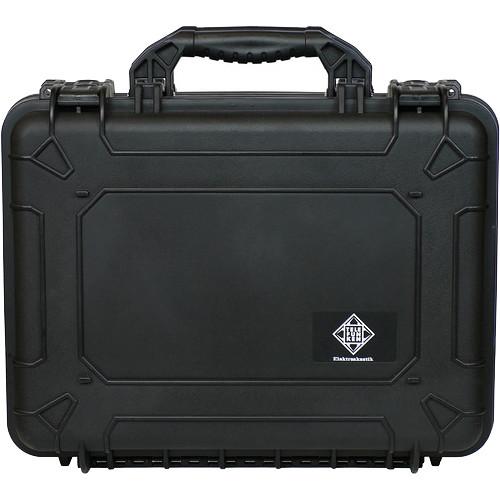

UPC: 899051002008 - HC00 Hardshell Flight Case for CU-29 Microphone System The Telefunken HC00 is a hardshell flight case designed to safely house a single CU-29 microphone system for audio engineers, vocalists, and musicians in studios and traveling from gig to gig. Being airtight and waterproof, it keeps moisture and dust from entering. Its hard plastic exterior and high-density foam interior protect your mic system components from dents, scratches, and shock.Air pressure regulation via an automatic pressure equalization valve ensures damage-free elevation changes during flights. Spring-release latches deliver stable, secure closure and padlocks (available separately) can be attached to the lock holders for enhanced safety. A thick, curved carry handle enables easy one-handed transport between rooms and venues.
- Rugged, hard plastic exterior
- High-density foam interior with cut-outs for microphone, power supply, shockmount, and cables
- Airtight and waterproof up to a depth of 3'
- Automatic pressure equalization valve enables proper air pressure regulation during elevation changes in flights
- Spring-release latches lock into place to provide secure closure
- Lock holders allow use of padlocks for additional security
- Thick, curved carry handle with hinges
- Made in the United States of America
In the Box Bundle Items CU-29 Copperhead Tube Condenser Microphone fwevzsbzec HC00 Hardshell Flight Case for CU-29 Microphone System Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken CU-29 Copperhead Cardioid Tube Condenser Microphone with Flight Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CU-29 Copperhead Tube Condenser Microphone
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 7 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | < 0.3% | | Impedance | 100 Ohms | | Sensitivity | 19.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 155 mA | | Length | 8.00" / 203.2 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 24.34 oz / 690 g | | | | Box Dimensions (LxWxH) | 20.4 x 12.9 x 5.6" | - HC00 Hardshell Flight Case for CU-29 Microphone System
| Material | Exterior: Plastic
Interior: High-density foam | | Type of Closure | Latches | | Exterior Dimensions | W x D x H: 20 x 16 x 8" / 508 x 406 x 203 mm | | Interior Dimensions | Foam cut-outs sized for components of microphone system | | Carrying/Transport Options | Handle | | Country of Manufacture | United States of America | | Weight | 9.6 lb / 4.4 kg | | | | Box Dimensions (LxWxH) | 19.9 x 16.3 x 7.9" |
