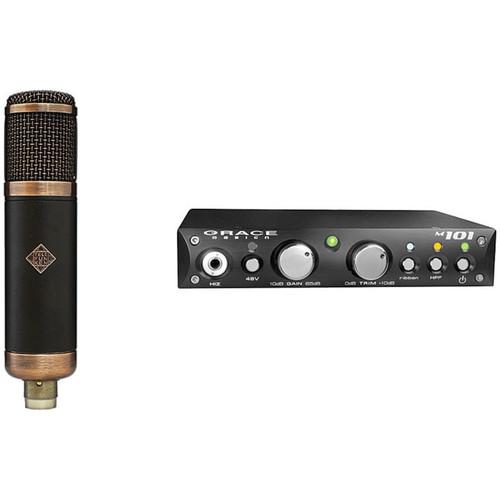

Product description The Telefunken CU-29 Copperhead Microphone + Grace Design M101 Preamp Bundle is a Kit that pairs a hi-fidelity microphone with a fully balanced, transformerless, single-channel microphone preamp with optimized DI instrument input.
The CU-29 microphone delivers clarity and detail and displays a "present" character, while the tube output stage adds warmth and a wide frequency response. The Grace Designs M101 provides a superb pairing to the microphone with a fast, musical transimpedance amplifier architecture that also delivers a clear and detailed signal. - Grace Design m101 - Microphone Preamp The m101 from Grace Design is a single-channel microphone preamplifier that uses the same fast, musical transimpedance amplifier architecture as the model 801 and model 201, but packaged and priced to be within the reach of any recording engineer, musician or studio. The preamp now employs 0.5% precision metal film resistors.An upgrade from the model 101, the unit still employs fully balanced, transformerless circuit topology and has no electrolytic capacitors in the signal path. With incredible bandwidth, headroom and resolution, the unit is remarkably natural, musical and detailed. A universal power supply is internally mounted.The m101 features a ribbon microphone mode which provides additional gain that is usually required by that type of microphone. Pushing the dedicated ribbon switch does three things. Phantom power is locked-out to prevent potential damage to ribbon microphones, the impedance of the microphone input is raised from 8.1kΩ to 20kΩ, and the 48V DC blocking input capacitors are bypassed with sealed gold contact relays.The included instrument DI input is designed to accommodate a wide variety of high impedance input sources, making the unit an excellent choice as a DI box which will flawlessly preserve the sound of any plugged-in instrument while imparting lackluster sounding instrument pickups with clarity and detail.
- Fully balanced, transformerless, single-channel microphone preamp with optimized DI instrument input
- Fast, musical transimpedance amplifier architecture
- Updated audio path with 0.5% precision metal film resistors
- Built-in switchable 75Hz, 12dB/8ve high pass filter
- Precision 12-position, gold contact, rotary switch gain control
- 10dB output trim controls for fine level adjustment
- Switchable 48V phantom power
- Ribbon microphone mode with an optimized signal path
- Input impedance, and 48V lockout
- No electrolytic capacitors in the signal path
- Enhanced RFI interference suppression
- Sealed gold contact relays for all signal switching
- Minimal internal signal wiring
- Three output connectors: XLR balanced, TRS balanced and 1/4" unbalanced
- Two color, bi-phase LED peak indicator
- Internal, universal power supply
UPC: 823821110105 In the Box - Grace Design - m101 - Microphone Preamp rausfayccqdtvwrvrxrzeeafd
- AC Power Cable
- Five (5) Year Warranty (Transferable)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken CU-29 Copperhead Microphone Grace Design M101 Preamp Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Grace Design m101 - Microphone Preamp
| Number of Channels | Single | | Inputs | 1 x XLR Microphone (rear panel)
1 x 1/4" TRS phone Instrument (front panel) | | Output | 1 x XLR
1 x 1/4" TRS phone
1 x 1/4" TS phone | | Phantom Power | Yes | | Multi Function | No | | Gain Range | 10dB to 65dB, in 5dB steps
Output trim control adds 0dB to +10dB | | Maximum Output Level | +25dBu, 100kΩ load, 0.1% THD | | Frequency Response | Mic Input: 4.5Hz to 390kHz, -3dB @ 40dB gain
Hi-Z Input: 2.5Hz to 195kHz, -3dB @ 20dB gain | | Noise | <-124dB, 600Ω source | | Power Requirements | 100~240VAC | | Dimensions (WxDxH) | 8.5 x 9.0 x 1.7" (216 x 228 x 43mm) | | Weight | 2.4 lbs (1.09 kg) | | Specialties | Peak LED meter | | | | Box Dimensions (LxWxH) | 16.4 x 14.2 x 4.7" |
