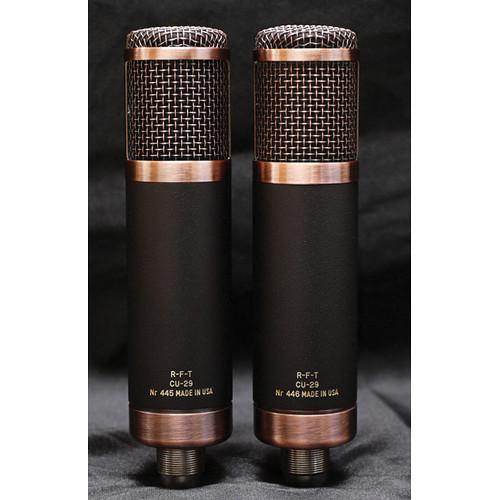

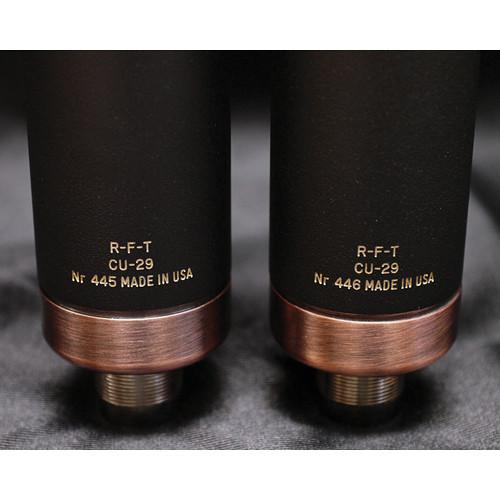

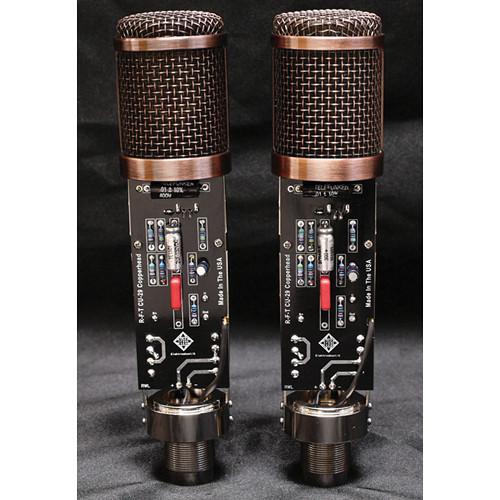

Product description The CU-29 Copperhead Stereo Set from Telefunken comes in a custom locking flight case that carries both sets of cables, shockmounts, microphones in wooden boxes, and a dual-channel power supply unit. The dual-channel supply can power one or both of the microphones at the same time. This upgraded power supply has a regulated design with a slow-ramping heater voltage to ensure vacuum tube longevity.The amplifier in the Copperhead Set features a 6AK5W vacuum tube, Lundahl LL1935 output transformer, and a single-membrane version of the TK67 large-diaphragm capsule used in the AK-47 MkII. This hi-fidelity microphone provides a warm, clear low end complemented by a smooth, detailed high end.Each component for the two microphones is hand-selected for matched pairs. The capsules have matched frequency responses, the tubes have matched gain and noise specs, and the amplifier circuits have matched gain and frequency response.Each CU-29 Stereo Set comes complete with an M900S dual-channel power supply, 2x M801 25' dual-shielded TX-7 tube microphone cables, 2x M700 elastic shockmounts, 2x wooden microphone boxes and a locking flight case. In the Box Telefunken CU-29 Copperhead Stereo Set M900S Dual-Channel Power Supply 2 x M801 25' Dual-Shielded TX-7 Tube Microphone Cable 2 x M700 Elastic Shockmounts 2 x Wooden Microphone Boxes Locking Flight Case Limited 90-Day Warranty on the Capsule and Tube (1 Year when Registered) Limited 1-Year Warranty on the Amplifier, Cable, and Power Supply (4 Years when Registered) Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken CU-29 Copperhead Stereo Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken CU-29 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 7 dB A-Weighted | | Maximum SPL | 138 dB SPL | | THD | < 0.3% | | Impedance | 100 Ohms | | Sensitivity | 19.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 155 mA | | Length | 8.00" / 203.2 mm | | Diameter | 1.75" / 44.45 mm | | Weight | 24.34 oz / 690 g |
