User Manual for Telefunken DD4 Dynamic Drum Microphone Set Click to enlarge the picture
Contents of the user manual for the Telefunken DD4 Dynamic Drum Microphone Set
- Product category: Dynamic Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Dynamic Microphones
|
User manual for the Telefunken DD4 Dynamic Drum Microphone Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

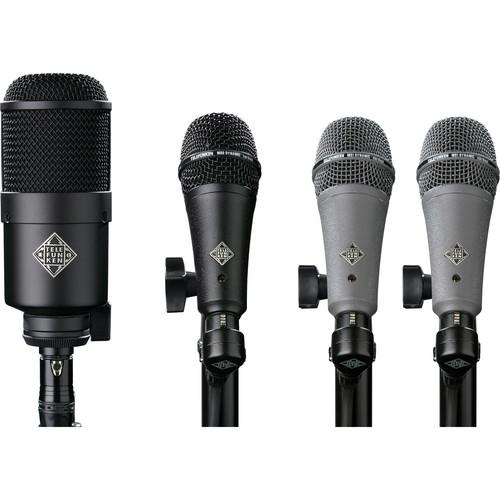

Product description Designed to provide you with the tools needs to close mic a typical jazz, or dual tom drum kit, the DD4 Dynamic Drum Microphone Set from Telefunken contains an M82 mic for kick drum, an M80-SH for snare drum, and two M81-SH mics for toms. Additionally, a metal kick-drum mount, three metal, and three plastic drum mounts are included to help with secure mic placement. To connect your drum mics to your recording source, four of Telefunken's SGMC-5R five-meter long right angle XLR cables are included.
While designed for drum applications, both the M82 and M80-SH mics are not uni-taskers and can also be used as vocal mics for studio or broadcast use. The included FC80 hardshell flight case can be used to store and transport the mics when not in use. - M82 Large Diaphragm Dynamic Microphone The M82 Large Diaphragm Dynamic Microphone from Telefunken is designed to capture kick drums and broadcast vocals and can also be used with general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments. It has an end-address configuration, a 35mm diaphragm, and features two separate EQ switches, allowing you to tailor the microphone's response to your sound source. These two switches work independently of each other and can be used together or not at all.
The kick EQ switch engages a passive filter that reduces the lower mid-range frequencies centered around 350 Hz, commonly cut when processing a kick drum. This keeps your kick drum from sounding "boxy" and allows the low end to remain strong. The high boost switch tilts the upper mid-range and high frequencies, starting around 2 kHz, with a 6 dB boost by 10 kHz. For kick drum use, this offers more beater attack when placed inside of a kick drum. For a source such as vocals or guitar amps, the high boost provides further articulation and airiness in the upper register. - Dynamic transducer with cardioid polar pattern
- Two separate EQ switches: a kick EQ switch and a high boost switch
- Designed to capture kick drums and broadcast vocals
- Suitable for general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments
- Includes leather carrying case and microphone clip
UPC: 899051002480 - M82 Kick Drum Microphone Mount The Telefunken M82 Kick Drum Microphone Mount is designed to hold Telefunken microphones. UPC: 858513005377
- M80-SH Dynamic Microphone The M80-SH Dynamic Microphone from Telefunken is built to deliver condenser-like audio reproduction for stage and studio applications. It is designed for snare drum and vocal scenarios where a short microphone with a right angle XLR connection is required. The M80-SH features a high SPL capability and a tight cardioid polar pattern with a subtle rise in the treble. The microphone is constructed with a black metal grill and includes a leather microphone bag, a microphone clip, and a 5 meter right-angle XLR cable.
- Delivers condenser-like performance in a dynamic design
- Equally suitable for voice, snare drums, and instruments
- Wide frequency response and higher SPL capabilities
- Low mass capsule and thin capsule membrane
- American made custom wound impedance matching transformer
UPC: 899051002596 - M81-SH Dynamic Microphone The M81-SH Dynamic Microphone from Telefunken is designed to produce condenser-like audio reproduction for use on stage and in the studio. The microphone rejects feedback, has a minimal proximity effect, and is suitable for tom drums and instrument applications where a shorter microphone is required. The M81-SH has a high SPL capability and features a tight cardioid polar pattern with a subdued treble for a flatter overall frequency response. The microphone is constructed with a nickel grill and includes a leather microphone bag, a microphone clip, and a 5 meter right-angle XLR cable.
- Delivers condenser-like performance in a durable dynamic design
- Equally suitable for toms and instruments on both stage and in the studio
- Wide frequency response and high SPL capabilities
- Low mass capsule and thin capsule membrane
- American made custom wound impedance matching transformer
UPC: 899051002473 - Metal Drum Microphone Mount The Telefunken Metal Drum Microphone Mount is designed to hold Telefunken microphones. UPC: 858513005391
- Plastic Drum Microphone Mount The Telefunken Plastic Drum Microphone Mount is designed to hold Telefunken microphones. UPC: 858513005407
- SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2') The 16.2' SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector from Telefunken is engineered for use on live sound stages and in recording studios. Featuring a 100% copper wire, this cable is suitable for use in lower profile applications around the drum set and percussion rig, as well as on vocals and instruments.
- 100% copper conductors for superior signal transfer
- Copper-braid shield for maximum RMI and EMI noise rejection
- Low capacitance for detailed, transparent sound quality
- Silver solder joints for maximum conductivity and strength
- Right-angle female XLR connector
UPC: 899051002565 In the Box Bundle Items M82 Large Diaphragm Dynamic Microphone sczzcadydqwubwvqtcctvwtyfvyqzr M82 Kick Drum Microphone Mount M80-SH Dynamic Microphone - 3-Pin XLR Right Angle Cable (16.4' / 5 m)
2 x M81-SH Dynamic Microphone - 3-Pin XLR Right Angle Cable (16.4' / 5 m)
3 x Metal Drum Microphone Mount 3 x Plastic Drum Microphone Mount 4 x SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken DD4 Dynamic Drum Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M82 Large Diaphragm Dynamic Microphone
| | | Transducer | Dynamic | | Diaphragm | 1.38" / 35.0 mm | | Polar Pattern | Cardioid | | Frequency Range | 25 Hz to 18 kHz | | Maximum SPL | 146 dB SPL | | Impedance | 300 Ohms | | Sensitivity | 1.85 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 350 Hz
6 dB/Octave @ 10 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.10" / 155 mm | | Diameter | 2.48" / 63 mm | | Weight | 22.40 oz / 635 g | | | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 4.6" | - M82 Kick Drum Microphone Mount
| | | Box Dimensions (LxWxH) | 4.6 x 2.4 x 1.3" | - M80-SH Dynamic Microphone
| | | Transducer | Dynamic | | Diaphragm | 0.98" / 25.0 mm | | Polar Pattern | Supercardioid | | Frequency Range | 30 Hz to 18 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 300 Ohms | | Sensitivity | 1.4 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 16.4' / 5 m | | Length | 4.93" / 125.1 mm | | Diameter | 2.48" / 63 mm | | Weight | 11.99 oz / 340 g | | | | Box Dimensions (LxWxH) | 10.7 x 7.2 x 4.3" | - M81-SH Dynamic Microphone
| | | Transducer | Dynamic | | Diaphragm | 0.98" / 25.0 mm | | Polar Pattern | Supercardioid | | Frequency Range | 30 Hz to 18 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 250 Ohms | | Sensitivity | 1 mV/Pa | | | | Cable Length | 16.4' / 5 m | | Length | 4.93" / 125.1 mm | | Diameter | 2.48" / 63.0 mm | | Weight | 0.75 lb / 340 g | | | | Box Dimensions (LxWxH) | 10.7 x 7.3 x 4.3" | - Metal Drum Microphone Mount
| | | Box Dimensions (LxWxH) | 3.0 x 2.0 x 1.0" | - Plastic Drum Microphone Mount
| | | Box Dimensions (LxWxH) | 4.8 x 2.4 x 1.4" | - SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2')
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 16.4' / 5 m | | Shielding | Copper Braid | | Conductor Material | Copper | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 11.3 x 3.4 x 0.9" |
