User Manual for Telefunken E88CC-TK 6922 Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken E88CC-TK 6922 Black Diamond Series
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken E88CC-TK 6922 Black Diamond Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

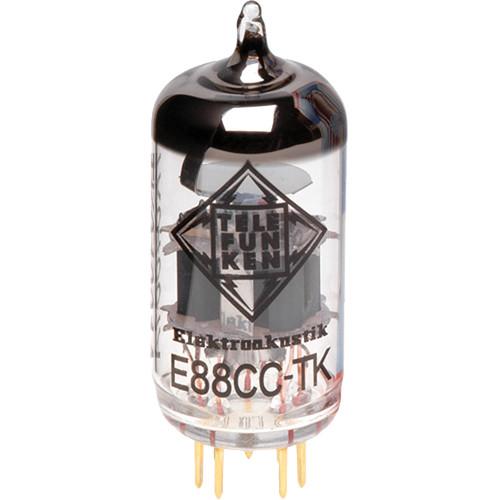

Product description The Telefunken E88CC-TK/6922 Black Diamond Series Vacuum Tube is ideal for use in microphone preamplifiers and phono stages in homes, studios, and live stage applications. For personal enjoyment or commercial recording, it grants accurate imaging and versatile, expressive dynamics. Offering medium gain and low noise, this dual triode tube delivers clean headroom and transparent tone critical to achieving sonically tight input stages. The E88CC-TK/6922 features gold-plated pins for enhanced signal integrity. - Newly manufactured and cryogenically treated to resurrect the transparent tone and harmonic impact of historical Siemens and Telefunken tubes
- Great for microphone preamplifiers, phono stages, and sonically tight audio input sections
- Also known as the 6922, the E88CC was originally targeted for test equipment and radar, but now serves audiophiles, musicians, and audio engineers
- Designed to offer precise imaging, significant dynamics, and a full-bodied soundstage
- Medium gain and low noise characteristics
- Dual-triode like the 12AX7 tube, but with a different pin configuration (not a direct plug-in replacement)
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and re-measured before final packing
UPC: 899051002503 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken E88CC-TK 6922 Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken E88CC-TK Specs | | | Type | R.F. dual triode | | Base | Noval | | Number of Pins | 9 | | | | Voltage | 6.3 V | | Current | 365 mA | | | | Capacitance | Grid to Cathode and Heater: 3.1 pF
Plate to Cathode and Heater: 0.18 pF
Grid to Plate: 1.4 pF | | | | Voltage | Plate Voltage: 550 V in cold conditions
Plate Voltage: 400 V at 0 mA plate current
Plate Voltage: 220 V
Plate Voltage: 250 V at <0.8 W plate dissipation
Grid Voltage: -100 V
Cathode Positive to Heater Negative Voltage: 120 V
Cathode Negative to Heater Positive Voltage: 60 V | | Current | Cathode Current: 20 mA | | Dissipation | Plate Dissipation: 1.5 W
Grid Dissipation: 30 mW | | Resistance | Cathode to Heater Resistance: 20 kOhms | | | | Voltage | Plate Voltage: 90 V
Grid Voltage: -1.3 V | | Current | Plate Current: 15 mA | | Transconductance | 12.5 mA/V | | Resistance | Internal Plate Resistance: 2.6 kOhms | | Amplification | Amplification Factor: 33
