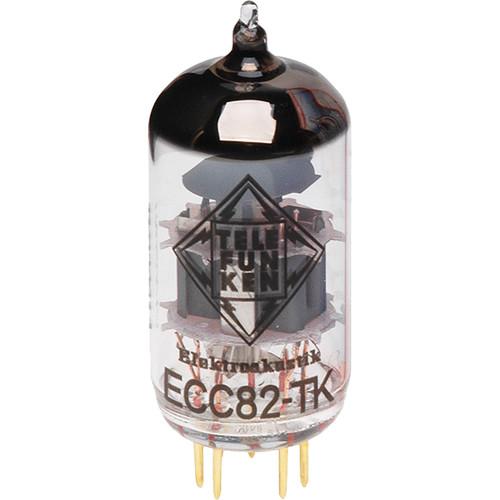

User Manual for Telefunken ECC82-TK 12AU7 Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken ECC82-TK 12AU7 Black Diamond Series
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken ECC82-TK 12AU7 Black Diamond Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken ECC82-TK/12AU7 Black Diamond Series Vacuum Tube is ideal for use in hi-fi equipment and instrument amplifiers in homes, studios, and live stage applications. Offering medium gain and low noise, this dual triode tube can also be used to replace ECC81/12AX7 tubes when lower gain is desired. The ECC82-TK/12AU7 is characterized by its brightness, flat midrange, focused low frequencies, and versatile dynamics. It features gold-plated pins and a gold-plated internal grid for enhanced signal integrity. - Newly manufactured and cryogenically treated rendition of the classic ECC82 dual triode vacuum tube, commonly known by the American designation 12AU7
- Great for hi-fi equipment, instrument amplifiers, and as a low-noise line amp, driver, and phase inverter in push-pull amplifier circuits
- Suitable replacement for an ECC81/12AX7 when lower gain is desired
- Medium gain and low noise characteristics
- Bright tone with a flat midrange and tight low end
- Accurate and focused image with wide dynamics
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and re-measured before final packing
UPC: 858513005001 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ECC82-TK 12AU7 Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ECC82-TK Specs | | | Type | R.F. dual triode | | Base | Noval | | Number of Pins | 9 | | | | Voltage | Parallel Configuration: 6.3 V
Series Configuration: 12.6 V | | Current | Parallel Configuration: 300 mA
Series Configuration: 150 mA | | | | Capacitance | Grid to Cathode and Heater: 1.9 pF
Plate to Cathode and Heater: 1.9 pF
Grid to Plate: 1.63 pF | | | | Voltage | Plate Voltage: 300 V
Grid Voltage: -50 V
Cathode to Heater Voltage: 180 V | | Current | Cathode Current: 20 mA | | Dissipation | Plate Dissipation: 2.75 W | | Resistance | Grid Resistor (self bias): 1 MOhm Cathode to Heater Resistance: 150 kOhms | | | | Voltage | Plate Voltage: 250 V
Grid Voltage: -8.5 V | | Current | Plate Current: 10.5 mA | | Transconductance | 2.2 mA/V | | Resistance | Internal Plate Resistance: 7.7 kOhms (approximate) | | Amplification | Amplification Factor: 17
