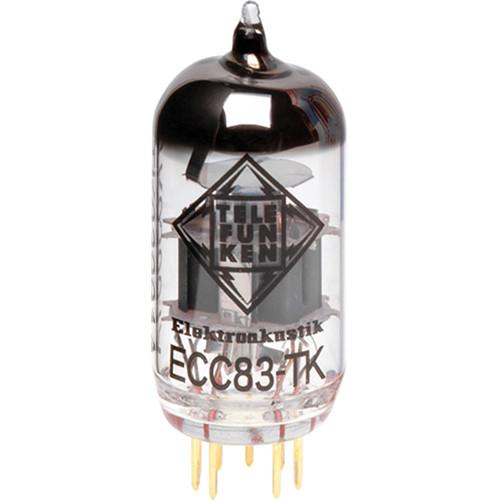

User Manual for Telefunken ECC83-TK 12AX7 Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken ECC83-TK 12AX7 Black Diamond Series
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken ECC83-TK 12AX7 Black Diamond Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken ECC83-TK/12AX7 Black Diamond Series Vacuum Tube is ideal for use in input and inter-stage audio amplifiers in homes, studios, and live stage applications. From stompboxes and guitar amps to compressors and microphones, 12AX7 tubes are widely used for their even-order harmonic distortion and full frequency range. Offering high gain and low noise, this dual-triode tube delivers extended headroom and balanced tone complementary to an array of musical genres. The ECC83-TK/12AX7 is characterized by its clean highs, thick midrange, and prominent bass. - Newly manufactured and cryogenically treated rendition of the classic ECC83 dual triode vacuum tube, commonly known by the American designation 12AX7
- Great for input and inter-stage audio amplifiers used in all types of music and playing styles
- Designed to allow cleaner headroom than higher gain 12AX7s when pushed into overdrive
- Strongly defined lows, a rich midrange, and clean, smooth highs
- High gain and low noise characteristics
- Rich even-order harmonic distortion when driven into overdrive
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and re-measured before final packing
UPC: 899051002497 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ECC83-TK 12AX7 Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ECC83-TK Specs | | | Type | R.F. dual triode | | Base | Noval | | Number of Pins | 9 | | | | Voltage | Parallel Configuration: 6.3 V
Series Configuration: 12.6 V | | Current | Parallel Configuration: 300 mA
Series Configuration: 150 mA | | | | Capacitance | Grid to Cathode and Heater: 1.6 pF
Plate to Cathode and Heater: 0.33 pF
Grid to Plate: 1.7 pF | | | | Voltage | Plate Voltage: 300 V
Grid Voltage: -50 V
Cathode to Heater Voltage: 180 V | | Current | Cathode Current: 8 mA | | Dissipation | Plate Dissipation: 1 W | | Resistance | Grid Resistor (self bias): 2.2 MOhms
Cathode to Heater Resistance: 150 kOhms | | | | Voltage | Plate Voltage: 250 V
Grid Voltage: -2 V | | Current | Plate Current: 1.2 mA | | Transconductance | 1.6 mA/V | | Resistance | Internal Plate Resistance: 62.5 kOhms (approximate) | | Amplification | Amplification Factor: 100
