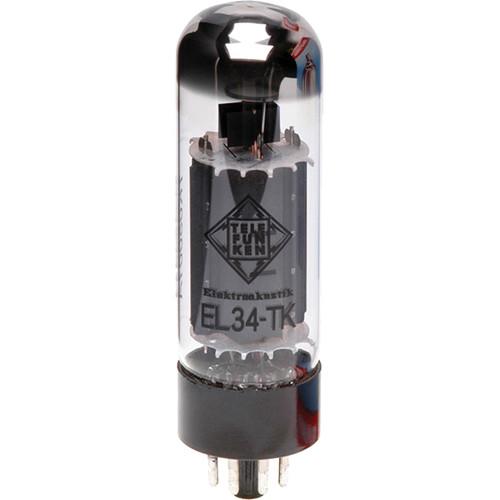

User Manual for Telefunken EL34-TK Black Diamond Series Vacuum Tube Click to enlarge the picture
Contents of the user manual for the Telefunken EL34-TK Black Diamond Series Vacuum
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken EL34-TK Black Diamond Series Vacuum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken EL34-TK Black Diamond Series Vacuum Tube is ideal for use in guitar amplifiers and hi-fi equipment in homes, studios, and live stage applications. For personal enjoyment or commercial recording, it grants a focused low-frequency response and smooth midrange frequencies. Supporting higher plate voltages than a 6L6 and higher grid voltages than a traditional EL34, this high-output pentode tube delivers a characteristic "British" tone. - Designed to handle a slightly higher grid voltage than a traditional EL34
- Great for guitar amplifiers and hi-fi equipment
- Smaller in diameter and taller than a 6L6, and capable of a higher plate voltage
- Commonly used in pairs in a Class-AB1 push-pull configuration
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and re-measured before final packing
UPC: 899051002510 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken EL34-TK Black Diamond Series Vacuum Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken EL34-TK Specs | | | Type | A.F. output pentode | | Base | Octal | | Number of Pins | 7 | | | | Voltage | 6.3 V | | Current | 1.5 A | | | | Capacitance | Grid #1 to All Except Plate: 15.5 pF
Plate to All Except Grid #1: 10 pF
Plate to Grid #1: 1.5 pF | | | | Voltage | Plate Voltage (in cold conditions): 2000 V
Plate Voltage: 800 V
Grid #2 Voltage (in cold conditions): 800 V
Grid #2 Voltage: 450 V
Cathode to Heater Voltage: 100 V | | Current | Cathode Current: 150 mA | | Dissipation | Plate Dissipation: 25 W
Grid #2 Dissipation: 8 W | | Resistance | Cathode to Heater Resistance: 20 kOhms | | | | Voltage | Plate Voltage: 250 V
Grid #3 Voltage: 0 V
Grid #2 Voltage: 265 V
Grid #1 Voltage: -10 to -13.5 V | | Current | Plate Current: 100 mA
Grid #2 Current: 14.9 mA/V
Plate Current at Cutoff: <7 mA | | Transconductance | 11 mA/V | | Resistance | Internal Plate Resistance: 15 kOhms | | Amplification | Amplification Factor: 11
