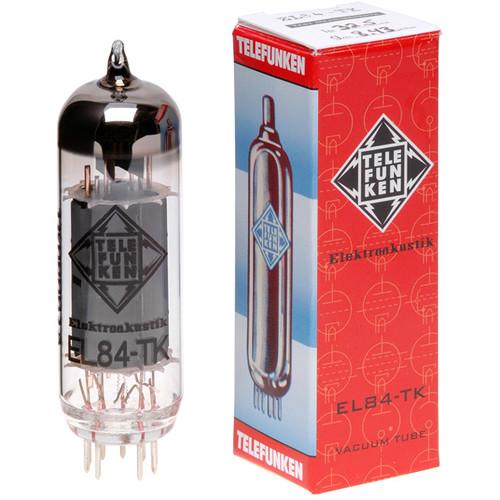

Product description This matched pair of Telefunken EL84-TK Black Diamond Series Vacuum Tubes is ideal for use in guitar amplifiers and hi-fi equipment in homes, studios, and live stage applications. For personal enjoyment or commercial recording, they grant a detailed, bell-like chime and clearly distinguished sound. In a smaller footprint than an EL34, these pentode tubes deliver a characteristic "British" tone and up to 17W of output power. - Ideal replacement for any EL84/6BQ5 tube
- Thermionic valve of the power pentode type
- Great for guitar amplifiers and hi-fi equipment
- Originally designed for the output stages of audio frequency amplifiers
- Delivers up to 17W while remaining compact
- Similar to an EL34 with a lower output power
- When overdriven, EL84 power tubes contribute to a distinctive chiming and articulate sound when compared to 6L6 tubes
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken EL84-TK Black Diamond Series Vacuum Tubes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken MATCHED PAIR OF EL84-TK Specs | | | Type | R.F. output pentode | | Base | Noval | | Number of Pins | 9 | | | | Voltage | 6.3 V | | Current | 760 mA | | | | Capacitance | Grid #1 to Cathode: 10 pF
Plate to All Except Grid #1: 5.1 pF
Grid #1 to Plate: 0.6 pF
Grid #1 to Heater: 0.15 pF | | | | Voltage | Plate Voltage: 300 V
Grid #2: 300 V
Grid #1: -100 V
Cathode to Heater Voltage: 100 V | | Current | Cathode Current: 65 mA | | Dissipation | Plate Dissipation: 12 W
Grid #2 Dissipation: 2 W | | Resistance | Grid #1 Resistor (Automatic Bias): 1 MOhm
Grid #1 Resistor (Fixed Bias): 0.3 MOhms | | | | Voltage | Plate Voltage: 250 V
Grid #2 Voltage: 250 V
Grid #1 Voltage: -7.3 V
Grid #1 Driving Voltage (when PO = 50 mW): 0.3 V
Grid #1 Driving Voltage (when PO = 6 W): 4.3 V | | Current | Plate Current: 48 mA
Grid #2 Current: 5.5 mA | | Transconductance | 11.3 mA/V | | Resistance | Cathode Resistor: 135 Ohms
Plate Resistor: 5.2 kOhms
Internal Plate Resistance: 40 kOhms | | Output Power | 5.7 W @ 10% THD with fixed grid bias
6 W when Ig1 = 0.3
