Product description - Mic Roundup Part 2: Affordable Tube Condenser Mics

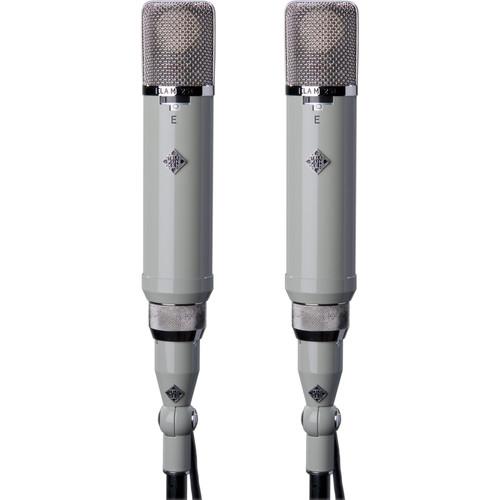

The ELA M 251E Classic Tube Microphone Stereo Set from Telefunken is a matched stereo pair of the company's ELA M 251E tube condenser microphones.The ELA M 251E is regarded as one of the most essential microphones in recording, and is sought after by leading industry professionals, recording studios, and artists. The ELA M 251E sits in line with Telefunken's history of quality professional microphones, and its lineage can be traced back to the original Neumann U-47 microphone produced in 1947 (distributed by Telefunken).The ELA M 251E with the 6072a tube has been known to capture a warm, rich and detailed sound that can be found in countless recordings throughout history. The capsule houses the famous CK12 1.0" dual-sided gold-sputtered diaphragm, and the switchable cardioid, omnidirectional, and figure-8 polar patterns are accessible on the microphone itself.The ELA M 251E stereo set will provide recording engineers with a variety of stereo-recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs while using the mics in either cardioid or omni. Designed for convenience, the set comes with a dual microphone-capable power supply included. Each component is hand selected and matched to allow for as close of a match between the two microphones in each system as possible. Capsules are tuned to each other, and transformers and tubes are tested for matched gain and frequency response. - Stereo pair with each component selected and matched to allow for as close of a match between the two microphones in each set as possible
- The Telefunken ELA M 251E features the 6072a for unparalleled warmth and detail
- Cardioid, omnidirectional, and figure-8 patterns

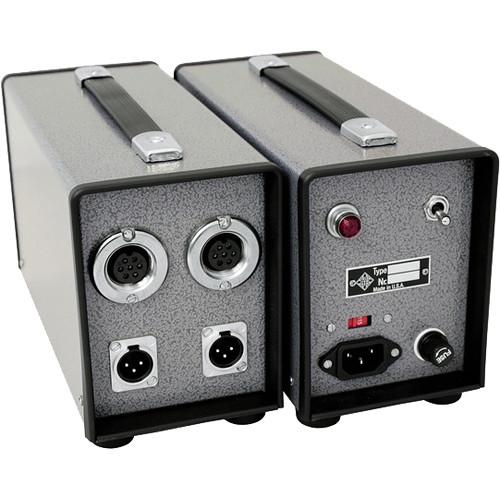

- Custom-dual power supply powers both mics at once
- The famous 1.0" CK12 gold-sputtered diaphragm reproduces audio in pristine detail

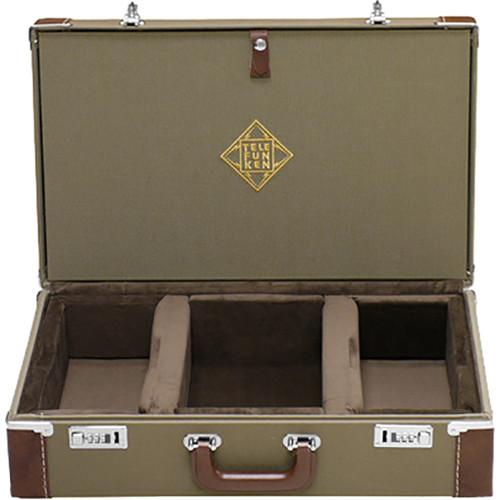

- Locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply

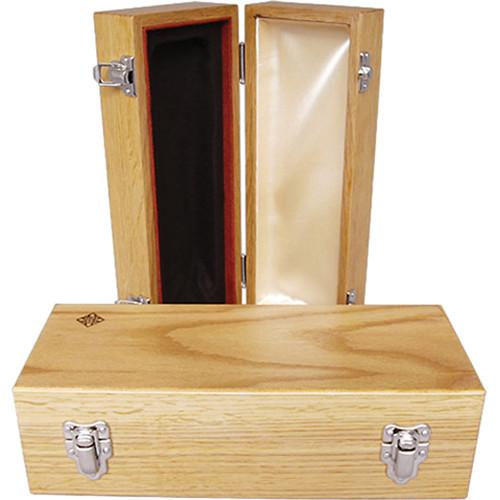

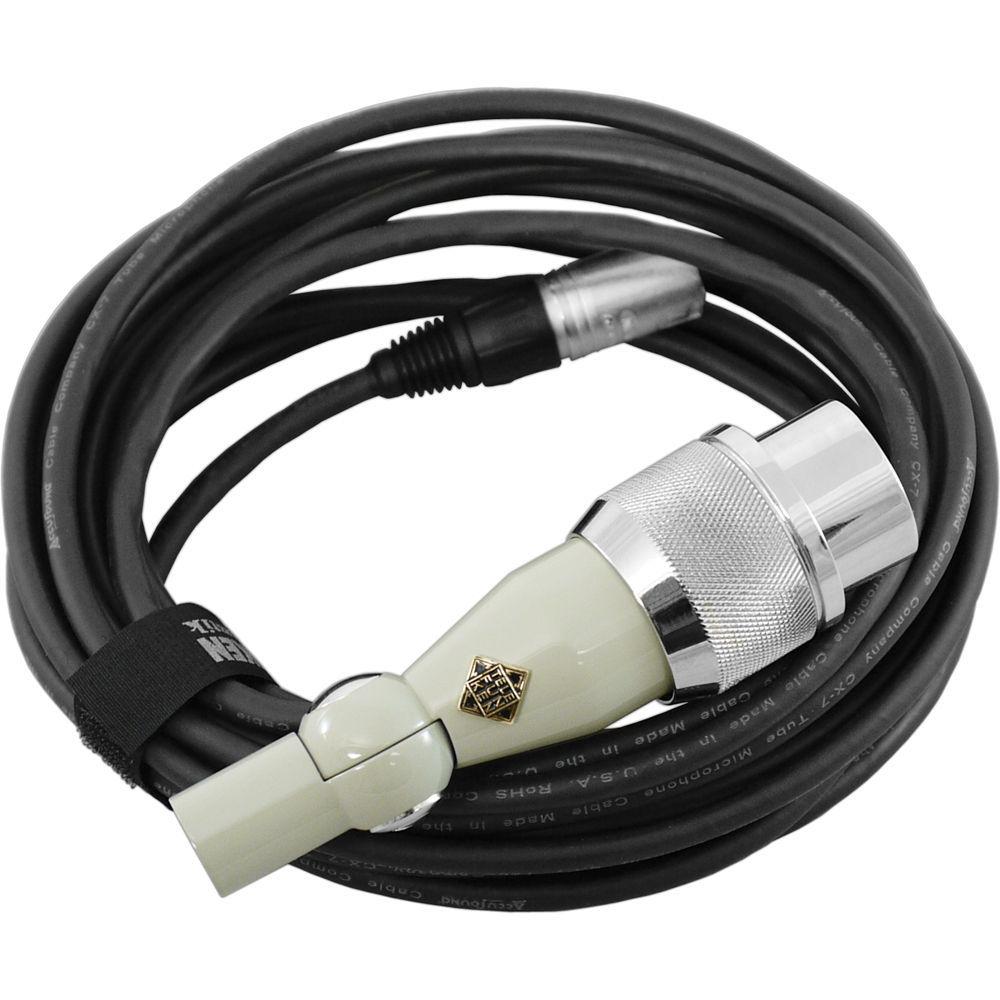

In the Box Telefunken ELA M 251E Classic Tube Microphone Stereo Set 2 x ELA M 251E Tube Microphones Dual Power Supply 2 x Connecting Cables 2 x Wooden Storage Boxes Locking Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ELA M 251E Classic Tube Microphone Stereo Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ELA M 251E Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | < 0.2% | | Impedance | 200 Ohms | | Sensitivity | 17 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 150 mA | | Length | 8.50" / 216 mm | | Diameter | 2.01" / 51 mm | | Weight | 20.00 oz / 567 g |
