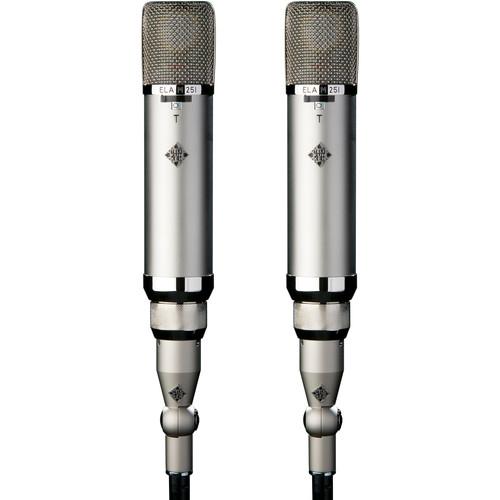

Product description The Telefunken ELA M 251T Stereo Set is a matched pair of Diamond Series ELA M 251T large-diaphragm tube condenser microphones offering the sound of the legendary ELA M 251 with an updated twist. Ideal in stereo configurations on instruments such as drums, strings, piano, horns, and vocals, the ELA M251T Stereo Set microphones are tested and tuned with hand-selected components for the closest possible match. Each mic features a 25mm dual-sided, edge-terminated capsule with a selectable cardioid, omnidirectional, or figure-8 polar pattern. By utilizing Alloy 2213 for the membrane material, weight is decreased, rigidity is improved, and a higher damping factor is achieved. NOS ECC801S vacuum tubes and Haufe T14/1 output transformers contribute to the renowned low-frequency clarity and smooth, pristine highs of the ELA M 251T. The 20 Hz to 20 kHz frequency response and maximum SPL of 132 dB enable handling of anything from soft vocals and delicate piano to pounding drums and blaring horns, all while delivering vintage-style tube warmth, accurate low frequencies, and a detailed high register. This stereo set includes an external dual power supply, universal shockmounts, 25' XLR 7-pin cables, oak mic boxes, and a locking flight case. - The dual-sided 25mm CK-13 capsule reproduces audio in pristine detail with greater low-frequency accuracy than the CK-12
- Utilization of Alloy 2213 instead of gold for the membrane enhances rigidity while providing airiness in the high frequencies
- The NOS ECC801S tube and Haufe T14/1 transformer contribute warmth and detail
- Selectable cardioid, omnidirectional, or figure-8 polar pattern
- To ensure the closest possible match between microphones, all components are hand-selected; capsules are tuned to each other, and transformers and tubes are tested for matched gain and frequency response
- The ELA M 251T sheds the classic mint green body color of the ELA M 250, 250E, 251, 251E, and 270 in favor of a sleek sulfamate nickel-plated finish to reflect the proprietary capsule technology
- Includes external power supply, 7-pin tube microphone cables, universal shockmounts, oak storage boxes, and a flight case

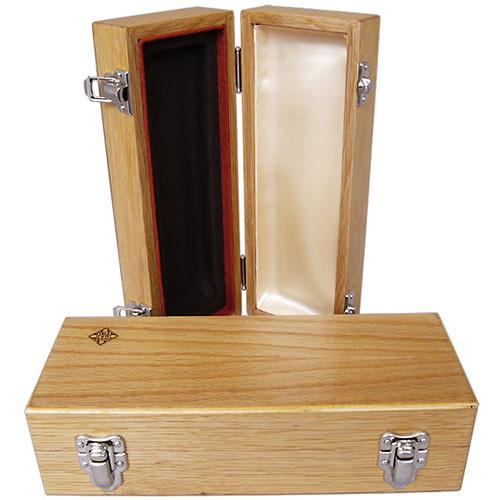

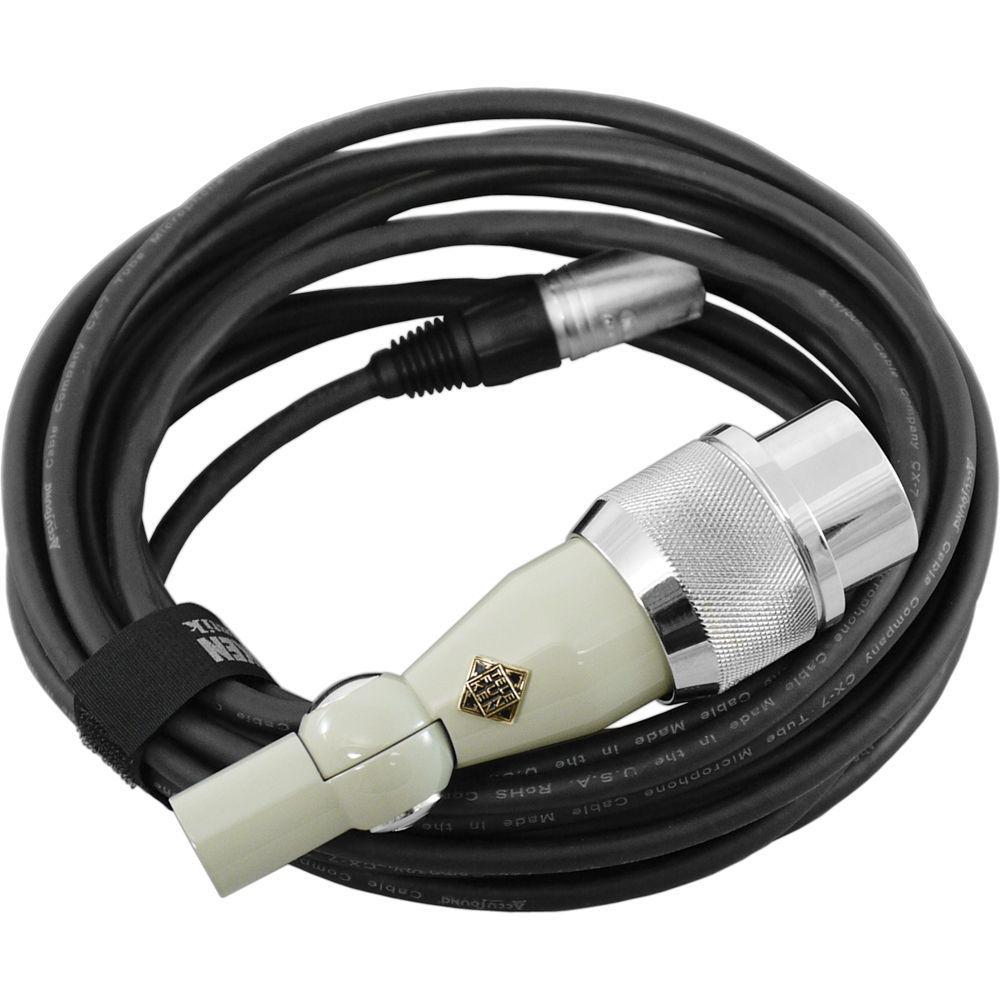

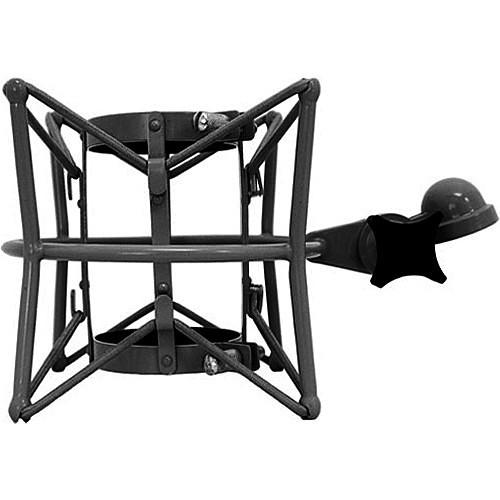

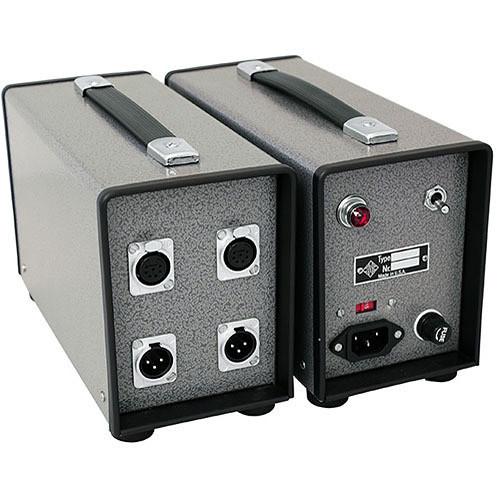

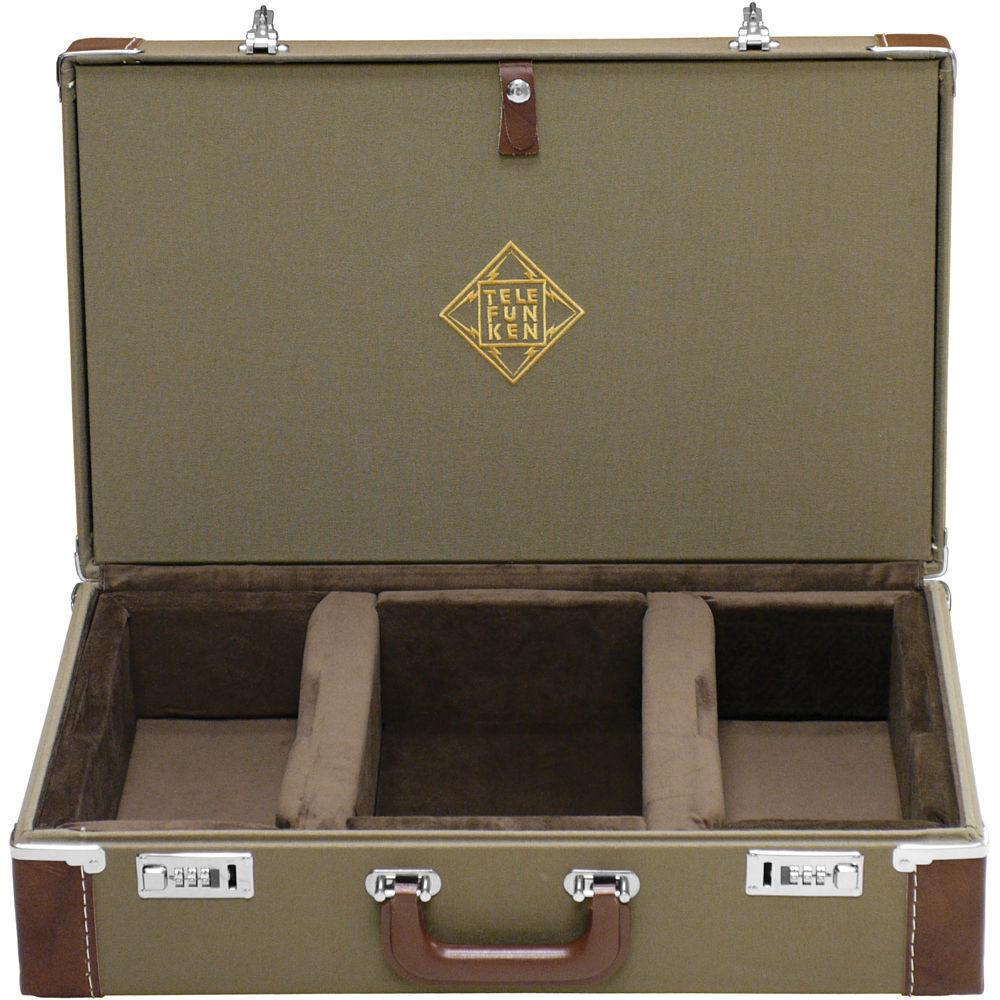

In the Box Telefunken ELA M 251T Stereo Set Large-Diaphragm Tube Condenser Microphones (Matched Pair) 2 x M 751 Universal Rycote Shockmount 2 x 25' Accusound CX-7 Quad-Shielded Cable with Microphone Stand-Mount Swivel Connector M 950ES Dual Power Supply for ELA M 250E / 251E 2 x WB50 Oak Microphone Box With Diamond Logo Combination Locking Flight Case for an ELA M 250/251 Stereo Set Limited 1-Year Warranty on Amplifier, Cable, and Power Supply Limited 90-Day Warranty on Capsule and Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ELA M 251T Stereo Set Large-Diaphragm Tube Condenser Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken Ela M 251T Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.98" / 25 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 87 dB A-Weighted | | Equivalent Noise Level | 7 dB A-Weighted | | Maximum SPL | 132 dB SPL | | Pad | None | | THD | < 0.15% | | Impedance | 200 Ohms | | Sensitivity | 11.5 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 7-Pin XLR
1 x 3-Pin XLR Microphone Output: XLR 7-pin
Power Supply Output: XLR 3-pin | | Cable Length | 25' / 7.62 m | | Operating Current Consumption | 80 mA | | Length | 8.50" / 216 mm | | Diameter | 1.97" / 50 mm | | Weight | 21.02 oz / 596 g |
