User Manual for Telefunken ELA M 251T Tube Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken ELA M 251T Tube Microphone
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken ELA M 251T Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description - Mic Roundup Part 2: Affordable Tube Condenser Mics
The ELA M 251T Tube Microphone from Telefunken is considered by many one of the most essential microphones in recording history and is continuously sought after by artists and leading industry professionals in the most prestigious recording facilities in the world. It sits at the top of Telefunken's lineage of quality, professional microphones tracing back to the original Neumann U-47 sold under the Telefunken name and logo.Both the ELA M 251T and its brother, the ELA M 251E feature switchable cardioid, omnidirectional and figure 8 polar patterns and use the 6072a tube which captures the unparalleled warm, detailed sound found in countless recordings. The difference between the two however is the capsule. The ELA M 251E uses the original CK-12 while the ELA M 251T features the more recently designed CK-13. Despite being housed in the CK-12 body, the CK-13 capsule is constructed of a much lighter material called Alloy 2213 which is an amalgam of titanium and aluminum developed by the aerospace industry. This metal is not only far more lightweight than the gold used in the original CK-12 but it is also notably more rigid. As a result, the CK-13 has proven to provide greater accuracy in low frequency ranges while also displaying a higher degree of detail than the CK-12, without losing the depth of audio the ELA M 25x microphones have always been known for.This microphone also comes equipped with all essential accessories such as the power supply, custom mic stand end, 25' Gotham cable, oak storage box, and leather-bound Cordora combination locking flight case. - The CK-13 capsule reproduces audio in pristine detail with greater low frequency accuracy than CK-12
- The 6072a tube captures unparalleled warmth and detailed sound
- Selectable cardioid, omnidirectional and figure 8 patterns
- External power supply, cable, custom mic stand end, oak storage box, and flight case included

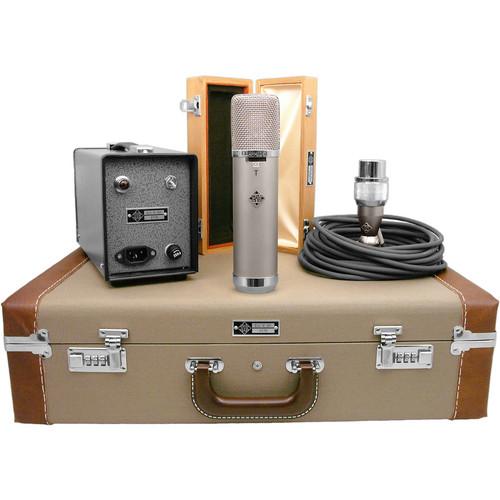

In the Box Telefunken ELA M 251T Tube Microphone Dedicated Power Supply Oak Storage Box Custom Microphone Stand End Locking Flight Case 25' Gotham Microphone Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ELA M 251T Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ELA M 251T Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 7 dB A-Weighted | | Maximum SPL | 132 dB SPL | | THD | < 0.15% | | Impedance | 200 Ohms | | Sensitivity | 1.2 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 100 mA | | Length | 8.50" / 216 mm | | Diameter | 2.01" / 51 mm | | Weight | 20.00 oz / 567 g |
