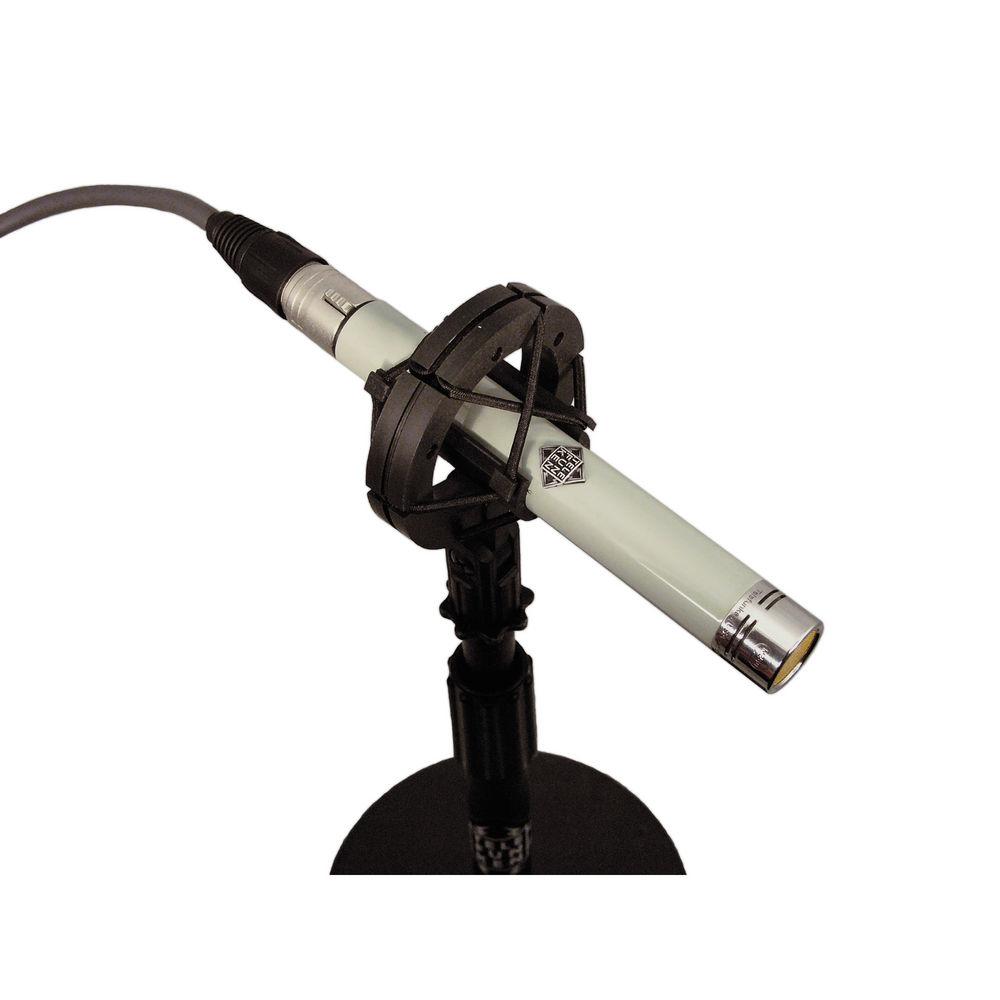

User Manual for Telefunken ELA M 260 Small Diaphragm Tube Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken ELA M 260 Small Diaphragm
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken ELA M 260 Small Diaphragm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

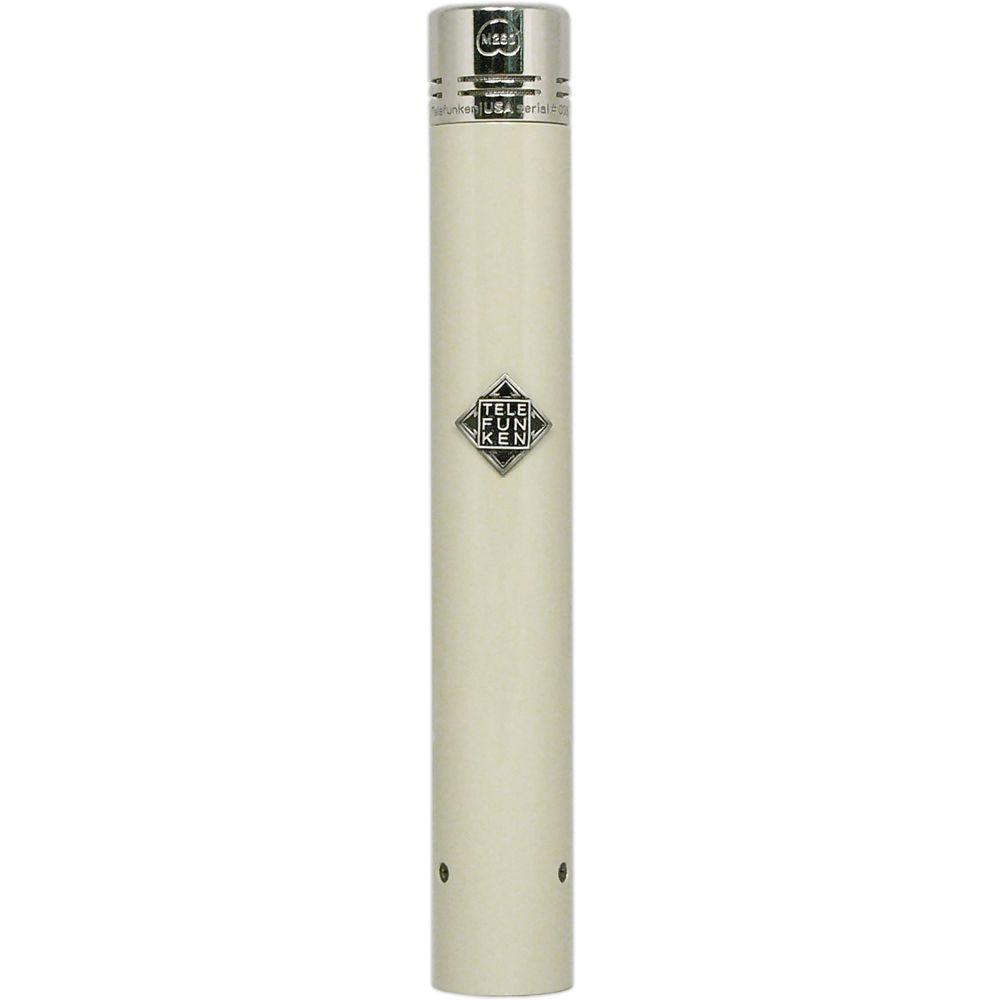

Product description The ELA M 260 Small Diaphragm Tube Microphone from Telefunken is engineered for accurate reproduction of instrument and vocal signals with pristine detail and warmth. While Telefunken may not have produced a historic replica of the original ELA M 260 (as in the Diamond series), this version will achieve an equal level of performance and sound made famous by the original.Its interchangeable capsule design gives the microphone its flexibility, and cardioid, omnidirectional, and hypercardioid capsules are included. The custom adapter is designed to allow AKG CK series capsules, and Neumann bayonet-style capsules to be used as well. The ELA M 260 is fitted with a Telefunken EF-732 vacuum tube and a dedicated power supply, shock mount, power supply cable, and wooden storage box are included. - Interchangeable capsule design with cardioid, hypercardioid, and omnidirectional capsules included
- Custom fitting designed by fellow audio enthusiast Chip Machokas permits the use of any of the AKG "CK" series of capsules (or capsules made by other manufacturers with the same thread) and Neumann bayonet-style capsules
- Brand-new circuit design based around a Telefunken EF-732 vacuum tube and a custom wound output transformer made in the United States
- Plenty of tone with excellent detail and clarity
- Well suited for drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar

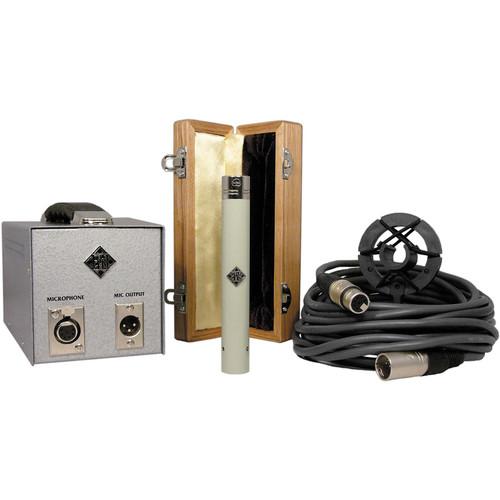

In the Box Telefunken ELA M 260 Small Diaphragm Tube Microphone Power Supply Unit Connecting Cable Cardioid, Omnidirectional and Hypercardioid Capsules Mic Clip Shock Mount Wooden Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ELA M 260 Small Diaphragm Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ELA M 260 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 11 dB A-Weighted | | Maximum SPL | 135 dB SPL | | THD | < 0.15% | | Impedance | 200 Ohms | | Sensitivity | 16.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Operating Current Consumption | 135 mA | | Length | 5.51" / 140 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.20 oz / 119 g | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 19.6 x 11.7 x 5.2" |
