Telefunken ELA M 260 Small-Diaphragm Tube

Search your instruction manual in PDF to download

User Manual for Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set

Click to enlarge the picture
Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set Contents of the user manual for the Telefunken ELA M 260 Small-Diaphragm Tube
  • Product category: Small Diaphragm Condenser Telefunken
  • Brand: Telefunken
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Telefunken Small Diaphragm Condenser

Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set
User manual for the Telefunken ELA M 260 Small-Diaphragm Tube contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Telefunken product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!



Product description

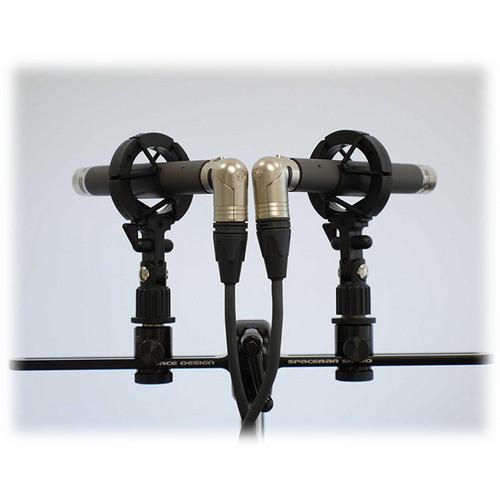

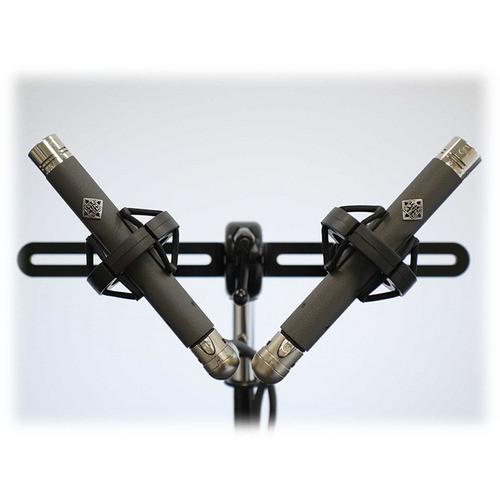

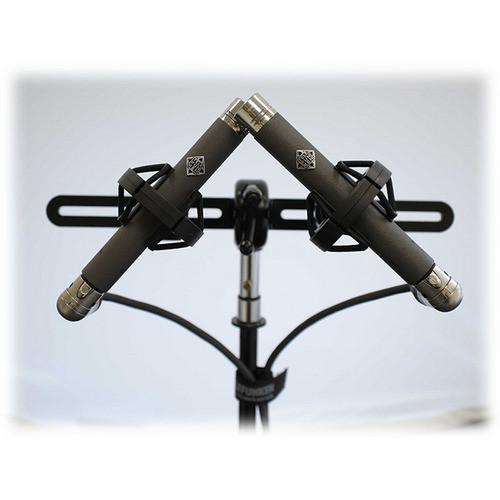

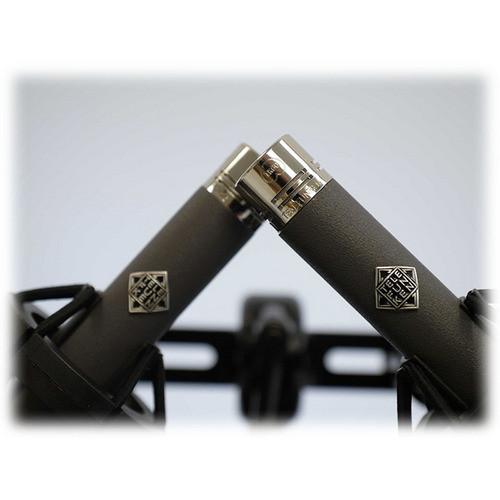

The ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set from Telefunken contains a matched pair of ELA M 260 microphones intended for crucial stereo recordings of instruments, vocals, performances and ambient audio signals in remote locations, without access to power. The set includes a single, dual-microphone power supply, and rechargeable battery pack, omnidirectional, cardioid, and hypercardioid capsules, shockmounts, protective cases, and a rugged flight case. The ELA M 260 is engineered for accurate reproduction of instrument and vocal signals with pristine detail and warmth.While Telefunken may not have produced a historic replica of the original ELA M 260 (as in the Diamond series), this version will achieve an equal level of performance and sound made famous by the original. Its interchangeable capsule design gives the microphone its flexibility. The custom adaptor is designed to allow AKG CK-series capsules and Neumann bayonet-style capsules to be used as well. The ELA M 260 is fitted with a Telefunken EF-732 vacuum tube.
  • Stereo matched pair for accurate, pristine stereo recordings
  • Delivered with a rechargeable battery power supply capable of powering both ELA M 260s at once
  • Includes Novuscell E-Series rechargeable Li-ion Battery Pack with charger and carrying case
  • Gotham Audio GAC7 tube microphone cables with right-angle XLR connectors
  • Interchangeable capsule design with cardioid, hypercardioid and omnidirectional capsules included
  • Custom fitting designed by fellow audio enthusiast Chip Machokas permits the use of any of the AKG "CK" series of capsules (or capsules made by other manufacturers with the same thread) and Neumann bayonet-style capsules
  • Brand-new circuit design based around a Telefunken EF-732 vacuum tube and a custom-wound output transformer made in the United States
  • Plenty of tone with excellent detail and clarity
  • Well suited for drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar
In the Box Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set
  • Dual Power Supply Unit
  • Novuscell E Series Rechargeable Li-ion Battery Pack with Charger and Carrying Case
  • 2 x 12' Gotham Audio GAC7 Tube Microphone Cables with Right-Angle XLR Connectors
  • 2 x Cardioid, Omnidirectional and Hypercardioid Capsules
  • 2 x Microphone Clips
  • 2 x Shockmounts
  • 2 x Wooden Storage Boxes
  • Leather-Bound Flight Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Telefunken ELA M 260 Small-Diaphragm Tube Microphone Field-Recording Set in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Telefunken ELA M 260 Specs

    Operating Principle Pressure Gradient
    Transducer Condenser
    Tube Yes
    Polar Pattern Cardioid, Hypercardioid, Omnidirectional
    Pattern Selection Switched
    Frequency Range 20 Hz to 20 kHz
    Equivalent Noise Level 11 dB A-Weighted
    Maximum SPL 135 dB SPL
    Impedance 200 Ohms
    Sensitivity 16.5 mV/Pa
    Output Connectors 1 x 3-Pin XLR
    Operating Current Consumption 1 mA
    Length 5.5" / 139.70 mm
    Diameter 0.83" / 21 mm
    Weight 4.2 oz / 119 g Weight per microphone
