User Manual for Telefunken ELA M 260 Tri-Mono Set Small-Diaphragm Tube Condenser Microphones Click to enlarge the picture
Contents of the user manual for the Telefunken ELA M 260 Tri-Mono Set
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken ELA M 260 Tri-Mono Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

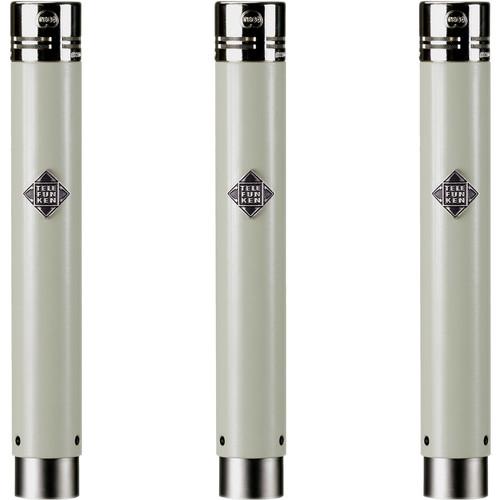

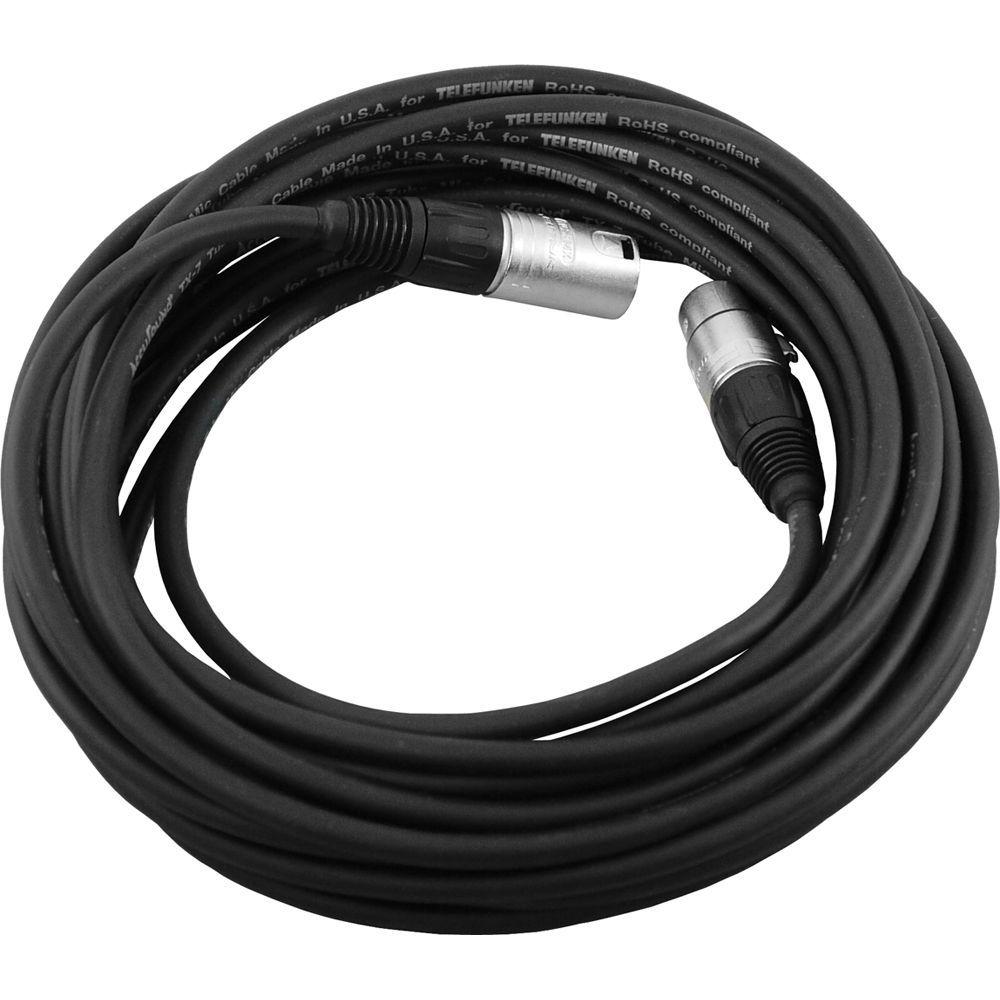

Product description The Telefunken ELA M 260 Tri-Mono Set is a matched set of three ELA M 260 small-diaphragm tube condenser microphones intended for crucial recording of orchestras, ensembles, or individual instruments using the Decca Tree mic arrangement. Each mic features three interchangeable 15mm edge-terminated capsules in omnidirectional, cardioid, and hypercardioid polar patterns, allowing flexible configurations while delivering consistent tone and clarity. The EF732/5840W vacuum tube and custom Telefunken T60 transformer impart vintage-style sonics along with the low noise, high SPL handling, and wide frequency response expected for high-resolution applications.The ELA M260 Tri-Mono Set is supplied with three 25' XLR 7-pin cables for connection to the included three-channel power supply, three vibration-isolating shockmounts, three wooden mic boxes, and a locking flight case to house the entire system. - Matched set of three ELA M 260 mics for accurate, pristine recordings in the Decca Tree "reverse T" configuration

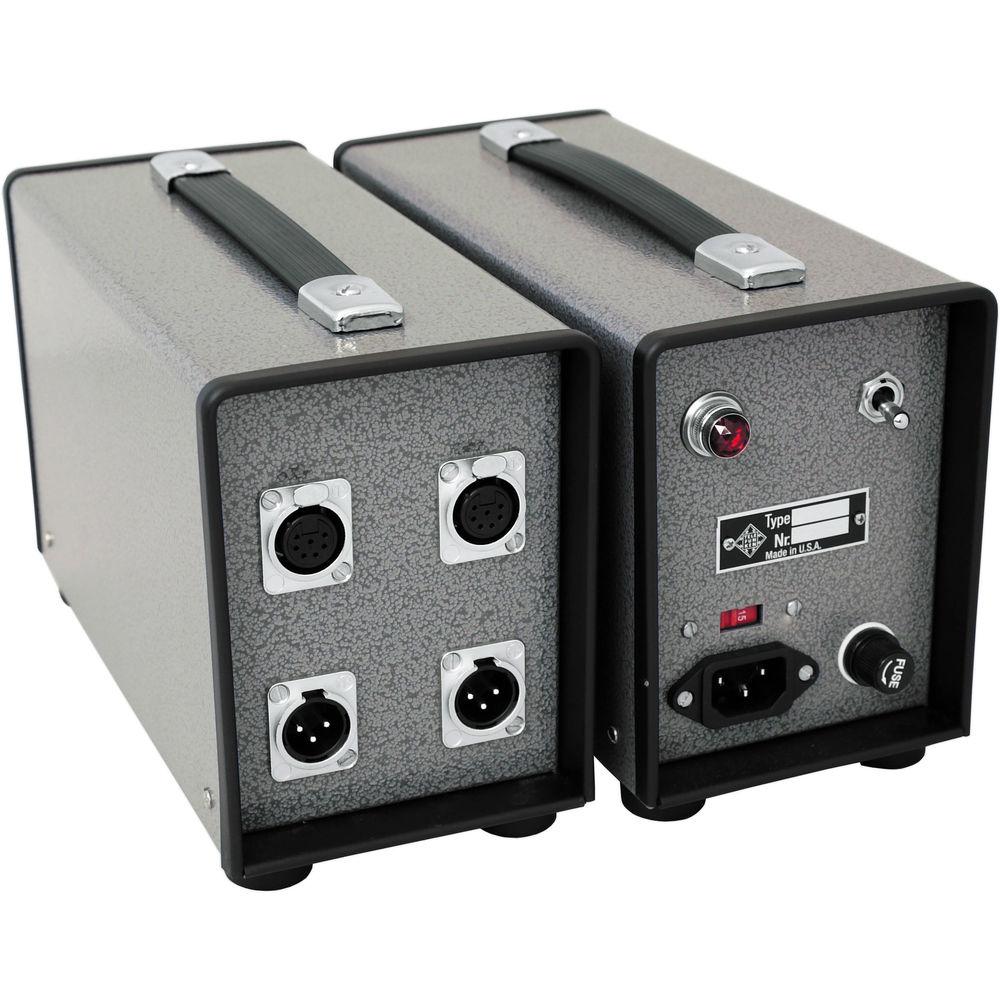

- Delivered with a single power supply unit capable of powering all three ELA M 260s at once
- Interchangeable capsule design with cardioid, hypercardioid, and omnidirectional capsules included
- Circuit design based around an NOS EF732/5840W vacuum tube and a custom output transformer made in the United States
- Plenty of tone with excellent detail and clarity
- Well suited for orchestral recording as well as capturing individual instruments such as drum overheads, percussion, woodwinds, saxophones, strings, and acoustic guitar

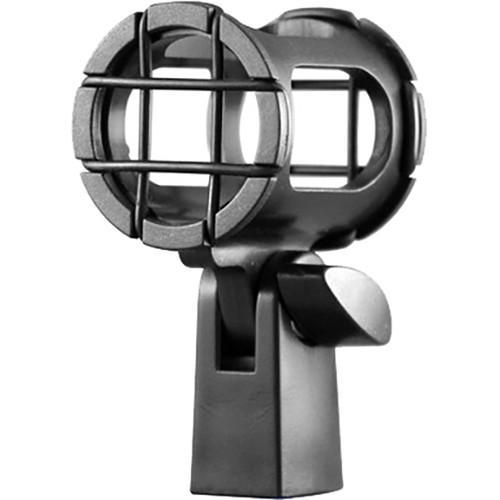

- Includes shockmounts, XLR 7-pin cables, wooden mic boxes, and a locking flight case for the entire system

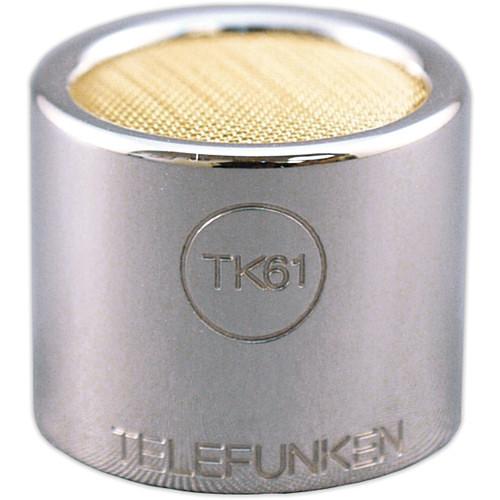

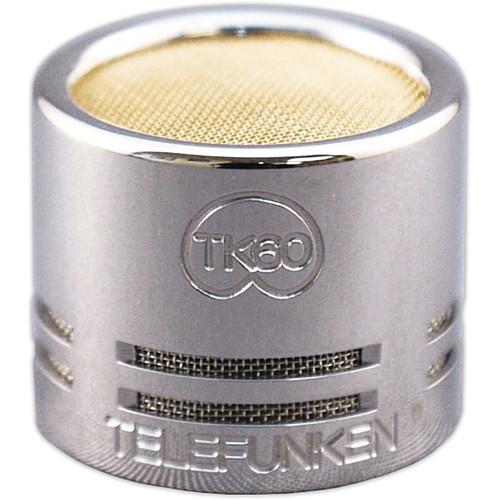

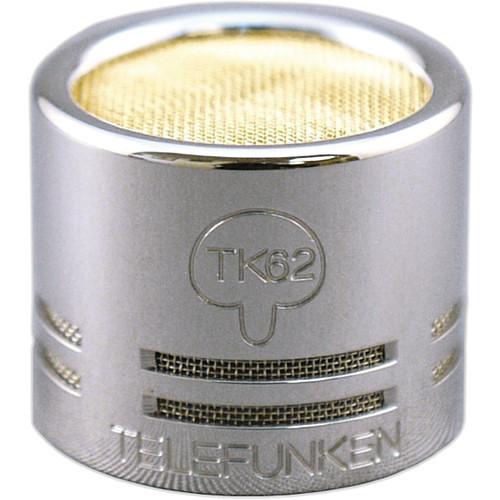

In the Box Telefunken ELA M 260 Tri-Mono Set Small-Diaphragm Tube Condenser Microphones (Matched Set of 3) M 963 3-Channel Microphone Power Supply 3 x M 801R Tube Microphone Cable with Right-Angle Female Connector (25') 3 x TK60 Cardioid Capsule for M 260 and M60 Microphones 3 x TK61 Omnidirectional Capsule for M 260 and M60 Microphones 3 x TK62 Hypercardioid Capsule for M 260 and M60 Microphones 3 x Elastic Shockmounts for ELA M 260 Tube Microphone 3 x WB60 Oak Microphone Box With Diamond Logo Combination Locking Flight Case for an ELA M 260 Tri-Mono Set Limited 1-Year Warranty on Amplifier and Power Supply (Extendable to 4 Years Upon Online Registration) Limited 90-Day Warranty on Capsule and Tube (Extendable to 1 Year Upon Online Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken ELA M 260 Tri-Mono Set Small-Diaphragm Tube Condenser Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken ELA M 260-TM Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.59" / 15 mm | | Tube | Yes | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 83 dB A-Weighted | | Equivalent Noise Level | 11 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | None | | THD | < 0.15% | | Impedance | 200 Ohms | | Sensitivity | 16.5 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 7-Pin XLR XLR 7-pin output on microphone
XLR 3-pin output on power supply | | Cable Length | 25' / 7.62 m | | Operating Current Consumption | 55 mA | | Length | 5.51" / 140 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.09 oz / 116 g |
