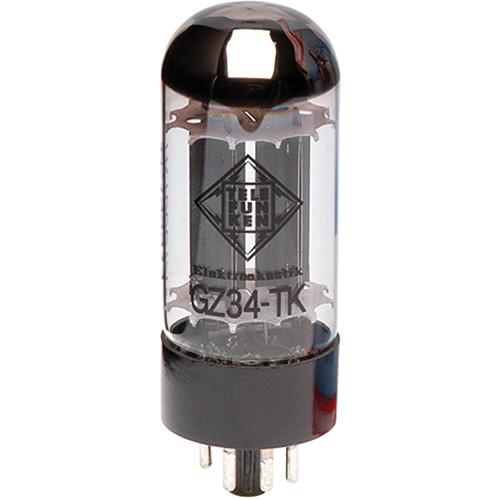

Product description The GZ34-TK Black Diamond Series Rectifier Tube from Telefunken is designed as a replacement for GZ34 and 5AR4 tubes. UPC: 899051002558 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken GZ34-TK Black Diamond Series Rectifier Tube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken GZ34-TK Specs | | | Type | Double Anode Rectifying Tube | | Base | Octal | | Number of Pins | 5 | | | | Voltage | 5 V | | Current | 1.9 A | | | | Voltage | Peak Inverse Plate Voltage (Capacitor Input): 1500 V
Peak Inverse Plate Voltage (Choke Input): 1500 V
Transformer Voltage (Capacitor Input): 2x 300, 2x 550 V
Transformer Voltage (Choke Input): 2x 300, 2x 550 V | | Current | Peak Plate Current (Capacitor Input): 750 mA
Peak Plate Current (Choke Input): 750 mA
Output D.C. Current (Capacitor Input): 250, 160 mA
Output D.C. Current (Choke Input): 250, 225 mA | | Capacitors | Input Capacitor of Smoothing Filter: 60 µF | | Limiting Resistor | 2x 50 ohms, 2x 175 ohms, minimum | | | | Voltage | Transformer Voltage (Capacitor Input): 2x 300, 2x 400, 2x 500, 2x 550 V
Transformer Voltage (Choke Input): 2x 300, 2x 400, 2x 500, 2x 550 V
Output D.C. Voltage (Capacitor Input): 330, 430, 560, 640 V
Output D.C. Voltage (Choke Input): 250, 330, 420, 465 V | | Current | Output D.C. Current (Capacitor Input): 250, 250, 200, 160 mA
Output D.C. Current (Choke Input): 250, 250, 250, 225 mA | | Capacitors | Input Capacitor of Smoothing Filter (Capacitor Input): 60, 60, 60, 60 µF | | Limiting Resistor | Capacitor Input: 2x 175, 2x 125, 2x 175, 2x 200 ohms (minimum)
Choke Input: 0, 0, 0, 5 ohms (minimum) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.2 x 1.8 x 1.7" |
