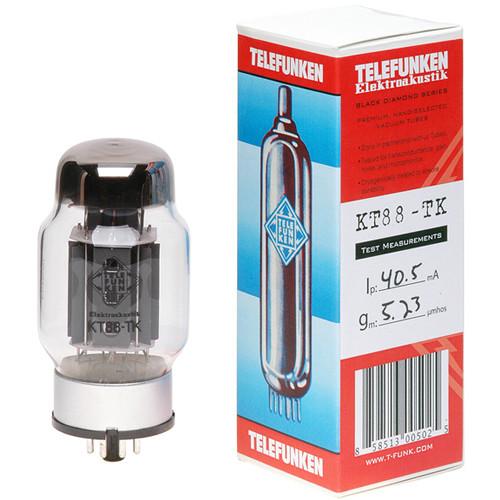

Product description This matched pair of Telefunken KT88-TK Black Diamond Series Vacuum Tubes is ideal for use in guitar amplifiers and hi-fi power amps in homes, studios, and live stage applications. For personal enjoyment or commercial recording, they grant the signature KT88 midrange with the added benefit of expanded low and high frequencies. Among the largest in their class, these beam-power tetrode tubes deliver high power and low distortion while handling plate voltages up to 800V. Depending on the circuit type, they can be used as beam-power tetrodes or output-beam pentodes. - Newly manufactured and cryogenically treated version of the legendary KT88
- Beam-power tetrode tube design similar to the 6L6 and EL34
- Great for guitar amps and hi-fi power amplifiers
- One of the largest tubes in its class
- Handles plate voltages up to 800V
- High power and low distortion make it ideal for scenarios where higher gain with less distortion than a 6550 is desired
- Yields the characteristic midrange of the original KT88 manufactured by MOV (Marconi-Osram Valve) plus expanded low and high frequencies
- Each tube is meticulously measured for all critical parameters of performance including transconductance, gain, noise, and microphonics
- Tubes are selected by hand, rigorously tested, subjected to an extended burn-in period for stability, and remeasured before final packing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken KT88-TK Black Diamond Series Vacuum Tubes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken MATCHED PAIR OF KT88-TK Specs | | | Type | A.F. beam pentode | | Base | Octal | | Number of Pins | 7 | | | | Voltage | 6.3 V | | Current | 1.6 A | | | | Capacitance | Grid #1 to All Except Plate: 16.5 pF
Plate to All Except Grid #1: 10 pF
Plate to Grid #1: 2.3 pF | | | | Voltage | Plate Voltage: 800 V
Grid #2: 600 V
Plate to Grid #2 Voltage: 600 V
Grid #1 Voltage (Negative Bias Value): -200 V
Cathode to Filament Voltage: 250 V | | Current | Cathode Current: 230 mA | | Dissipation | Plate Dissipation: 42 W
Grid #2 Dissipation: 8 W | | | | Voltage | Plate Voltage (Pentode Connection): 250 V
Grid #2 Voltage (Pentode Connection): 250 V
Grid #1 Voltage (Pentode Connection): -15 V
Grid #1 Voltage (Triode Connection): -15 V
Plate to Grid #2 Voltage (Triode Connection): 250 V | | Current | Plate Current (Pentode Connection): 140 mA
Grid #2 Current (Pentode Connection): 7 mA
Plate to Grid #2 Current (Triode Connection): 147 mA | | Transconductance | Pentode Connection: 11.5 mA/V
Triode Connection: 12 mA/V | | Resistance | Internal Plate Resistance (Pentode Connection): 12 kOhms, approximate
Internal Plate Resistance (Triode Connection): 670 Ohms | | Amplification | Amplification Factor (Pentode Connection): 8
