User Manual for Telefunken M60 Small-Diaphragm FET Condenser Stereo Master Set Click to enlarge the picture
Contents of the user manual for the Telefunken M60 Small-Diaphragm FET Condenser Stereo
- Product category: Small Diaphragm Condenser Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Small Diaphragm Condenser
 |
User manual for the Telefunken M60 Small-Diaphragm FET Condenser Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

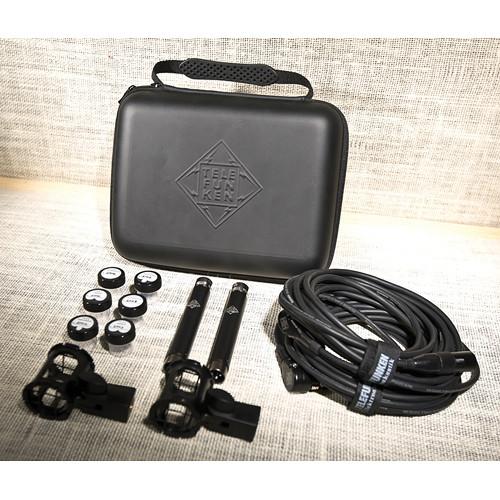

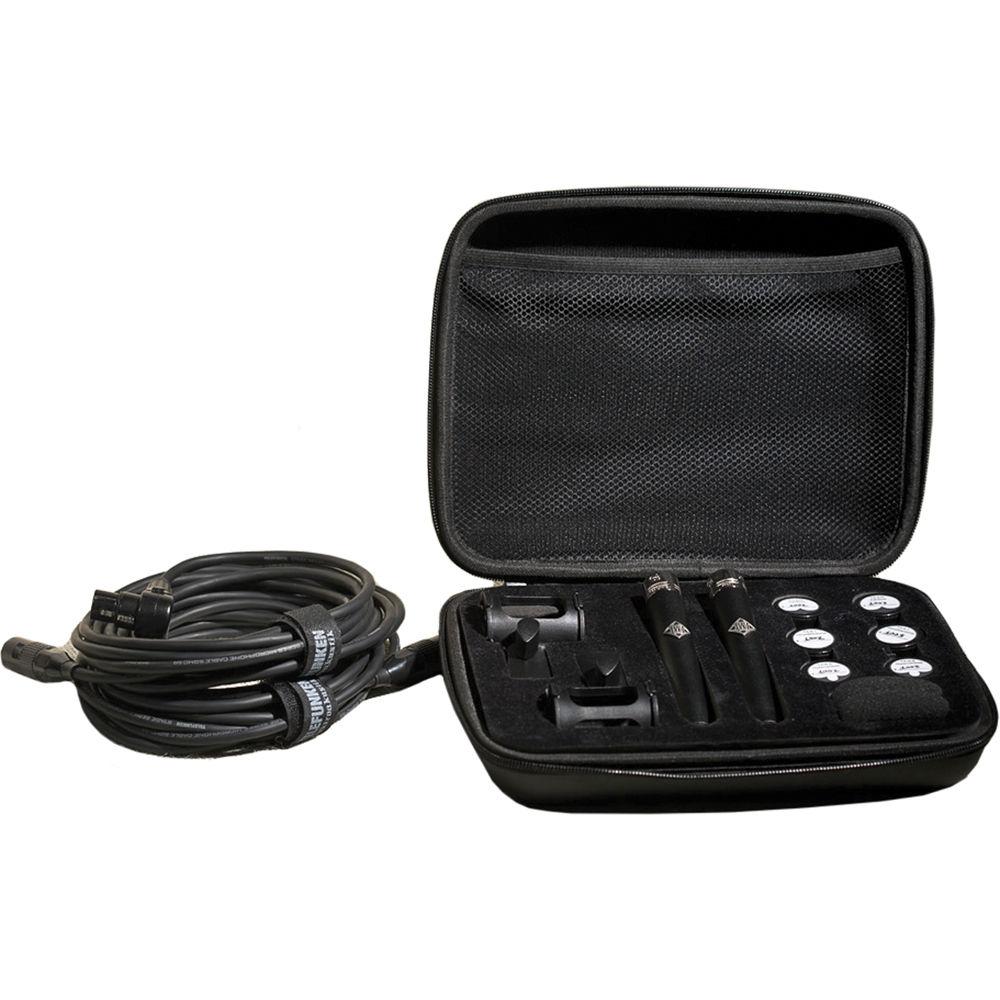

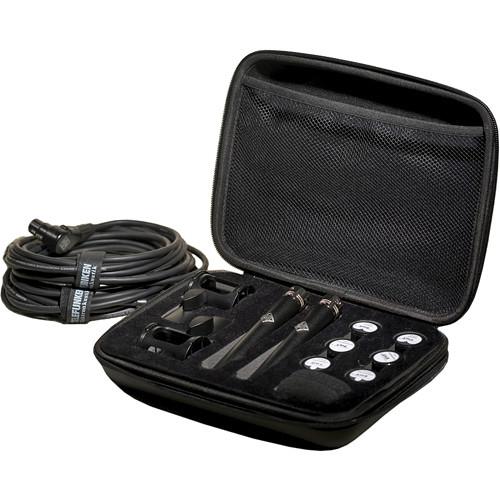

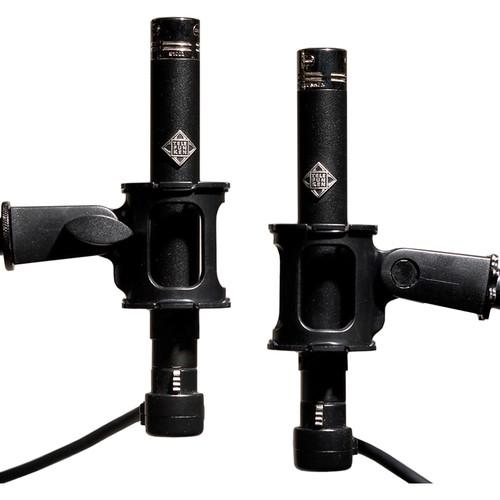

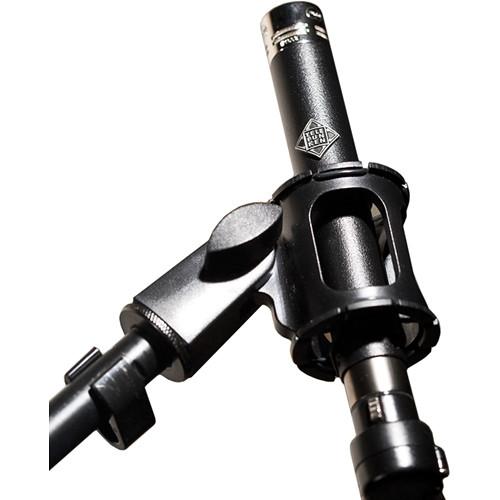

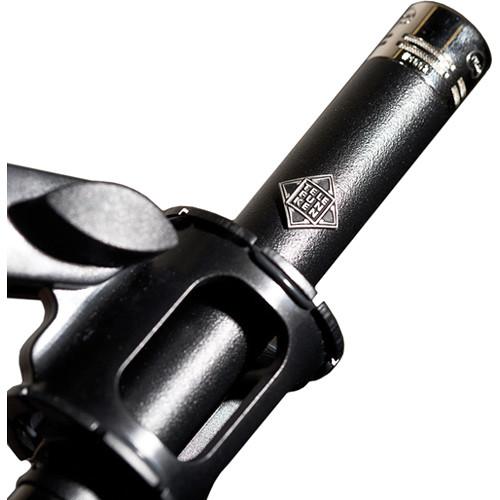

Product description The M60 Small-Diaphragm FET Condenser Stereo Master Set from Telefunken consists of 2 M60 amplifier bodies and includes a TK60 cardioid capsule, a TK61 omnidirectional capsule, and a TK62 hypercardioid capsule for each microphone. The mic provides a fast and accurate transient response, and can handle up to 130 dB of maximum SPL, allowing it to be placed in front of a variety of sound sources.
The TK60 cardioid capsule has a frequency response that is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz, making it optimal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments. The TK61 omnidirectional capsule's frequency response is flat from 20 Hz to 5 kHz, with a smooth, airy presence peak at 8 kHz, while the TK62 hypercardioid capsule provides a flat frequency response from 150 Hz to 3 kHz, with a dip at 6 kHz, and a smooth, airy presence peak at 8 kHz, making it optimal for use on cymbals and percussion. 2 shockmounts, 2 XLR cables, and a zippered case are included. UPC: 858513005100 In the Box Telefunken M60 Small-Diaphragm FET Condenser Stereo Master Set 2 x TK60 Cardioid Capsule for M 260 and M60 Microphones 2 x TK61 Omnidirectional Capsule for M 260 and M60 Microphones 2 x TK62 Hypercardioid Capsule for M 260 and M60 Microphones 2 x Elastic Shockmounts for ELA M 260 Tube Microphone 2 x SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2') zcrcvabvzburvdxyctzavtcbezduuawcwvz FC62 Zippered Carrying Case Limited 1-Year Warranty Limited 4-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken M60 Small-Diaphragm FET Condenser Stereo Master Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken M60 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 120 Ohms | | Sensitivity | 8.6 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 5.5" / 139.70 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.2 oz / 119 g | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 11.2 x 8.9 x 3.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
