User Manual for Telefunken M61 Small-Diaphragm FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken M61 Small-Diaphragm FET Condenser Microphone
- Product category: Small Diaphragm Condenser Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Small Diaphragm Condenser
 |
User manual for the Telefunken M61 Small-Diaphragm FET Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

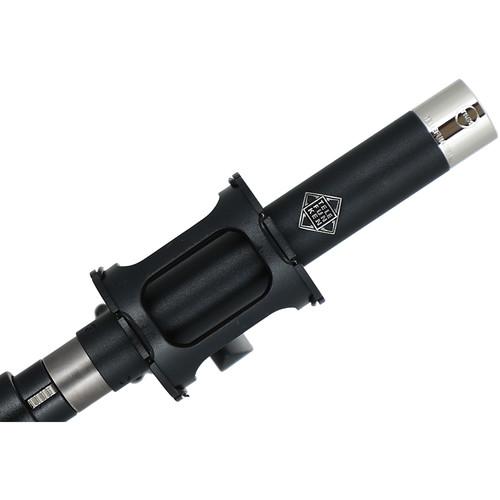

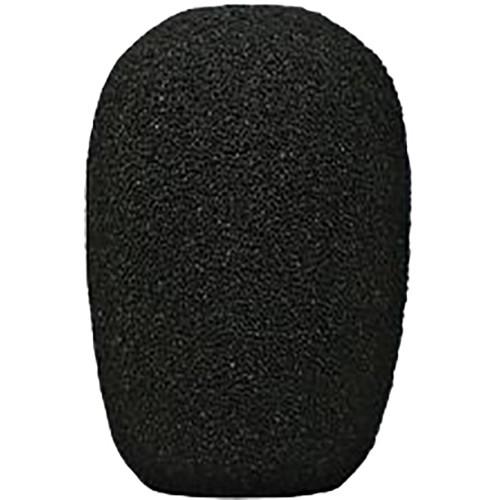

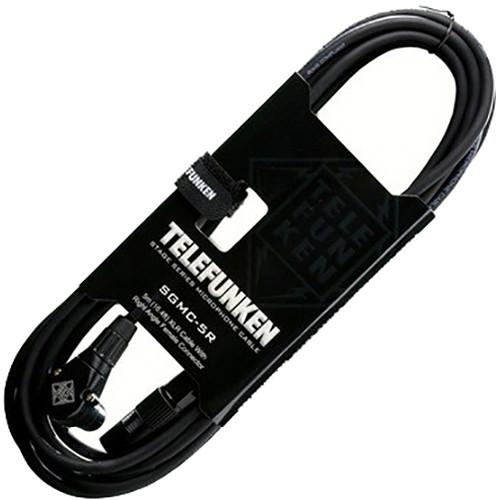

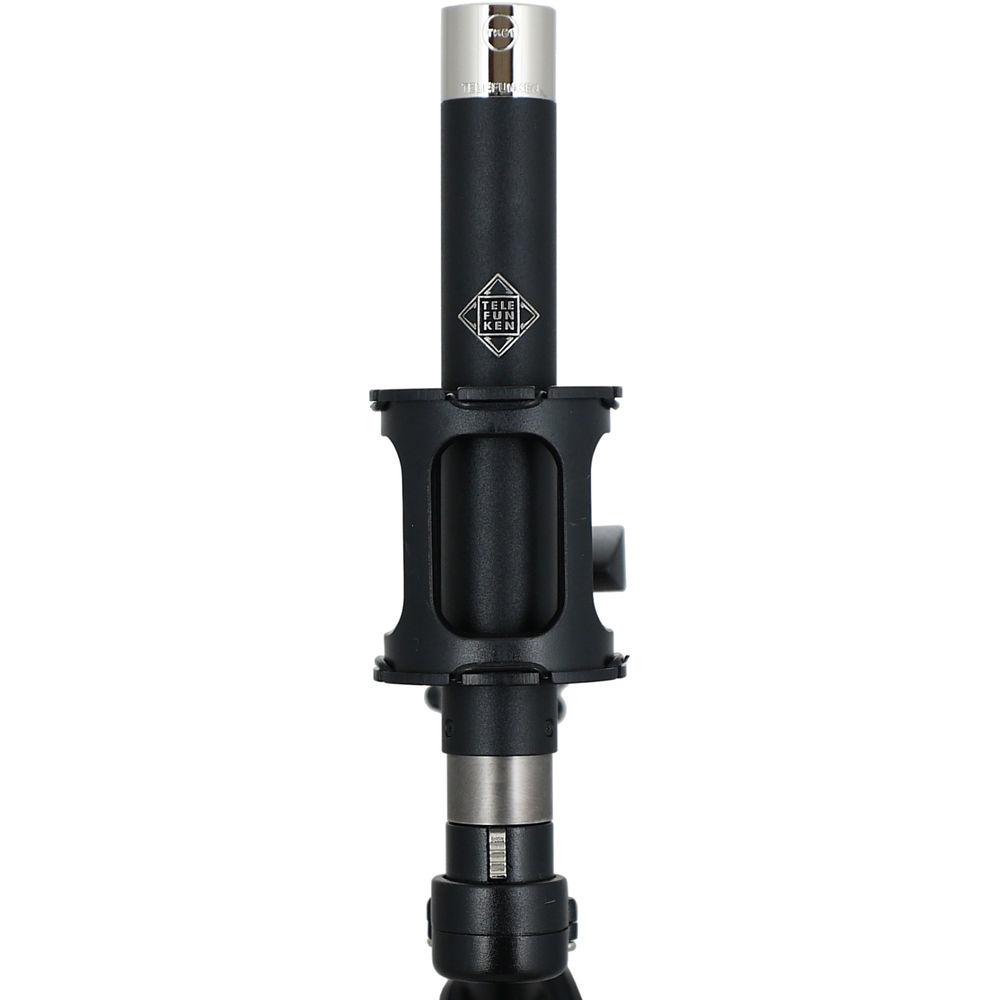

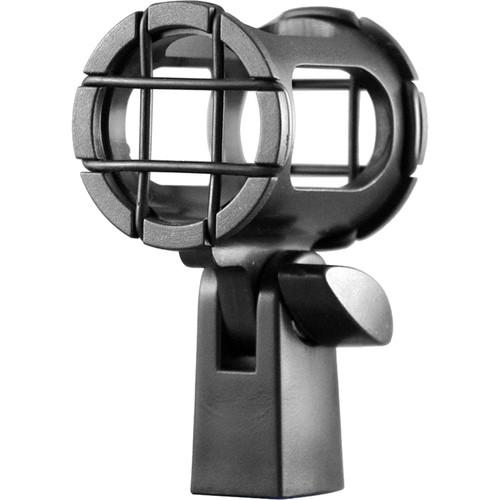

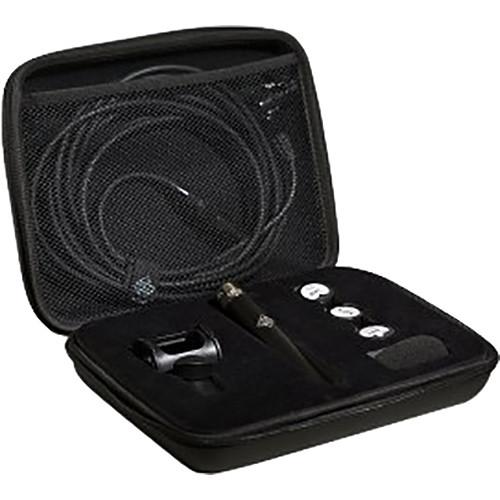

Product description The Telefunken M61 is a small-diaphragm omnidirectional FET condenser microphone designed to deliver fast transient response and accurate, yet musical frequency reproduction for musicians and recording engineers in home, project, and commercial studios. The M60 FET body features a custom-wound transformer, an active FET transistor, and a Class-A discrete amplifier. The included TK61 capsule utilizes a 6-micron, gold-sputtered membrane and exhibits an omnidirectional polar pattern.The M61's 130 dB maximum SPL, 20 Hz to 31.5 kHz frequency response, low self-noise, and fast transient response make it ideal for critical capture of a wide variety of instruments and room ambience. The supplied shockmount isolates the microphone from vibrations that would otherwise be transferred through the mic stand. A windscreen is included for reduction of noise from gusts of air. The M61 includes an XLR cable and a zipper carrying case. - Detailed Frequency Response
- The M61 package includes one M60 amplifier paired with a TK61 omnidirectional capsule, which features a 6-micron gold-sputtered membrane measuring 15mm in diameter. It offers a large, open sound perfect for capturing the ambience and vibe of your instrument or recording environment sounds to breathe life into any recording. The frequency response is flat from 20 Hz to 5 kHz with a smooth, airy presence peak at 8 kHz.
- Sonic Characteristics
- The M61's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
- Circuit Design
- Utilizing a proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class-A discrete amplifier with a frequency response of
|
Upload User Manual
Have you got an user manual for the Telefunken M61 Small-Diaphragm FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken M61 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.59" / 15 mm (Condenser) | | Tube | No | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 31.5 kHz | | Signal to Noise Ratio | 89 dB A-Weighted | | Equivalent Noise Level | 5 dB A-Weighted | | Maximum SPL | 130 dB SPL | | Pad | None | | THD | < 0.01% | | Impedance | 120 Ohms | | Sensitivity | 8.6 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 16.40' / 5 m | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V | | Length | 5.51" / 140 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.88 oz / 110 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
