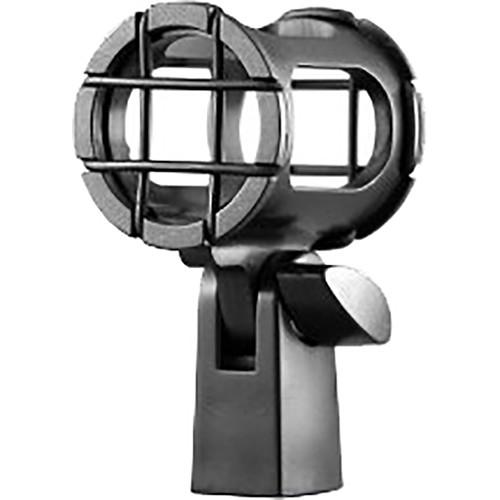

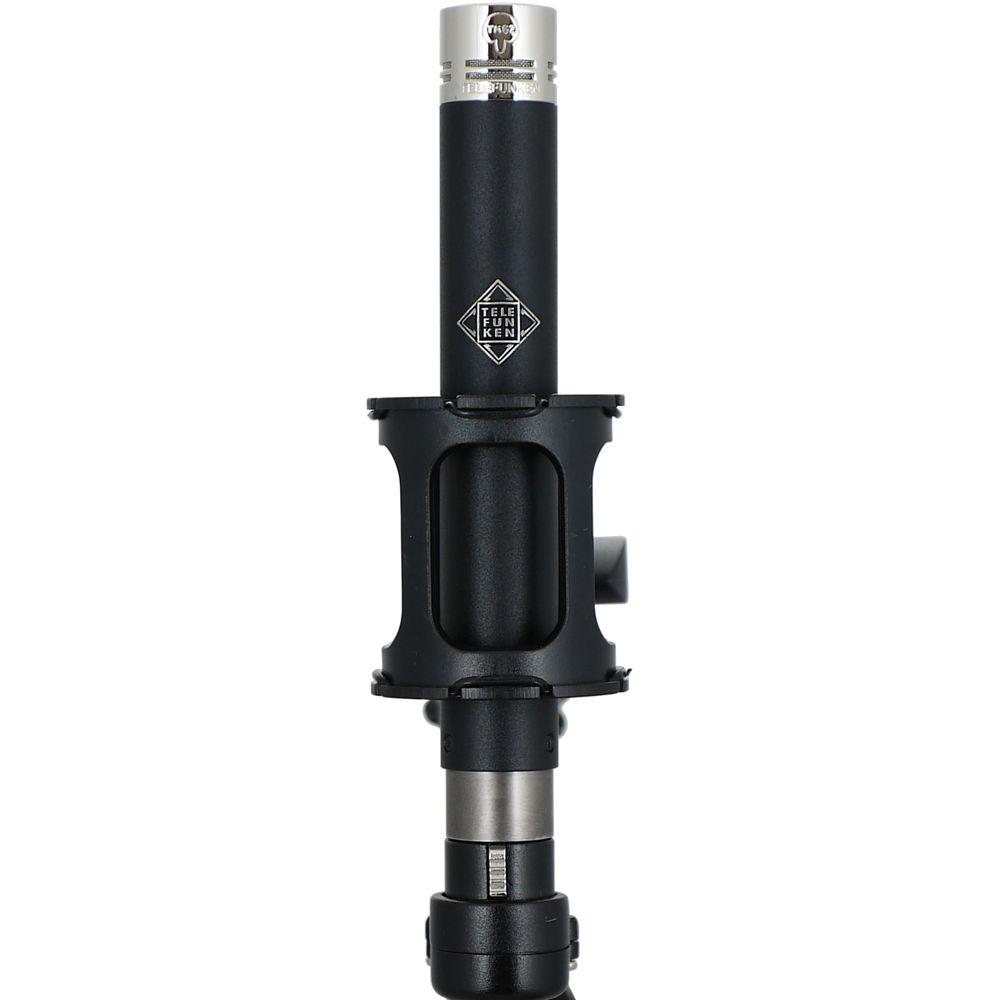

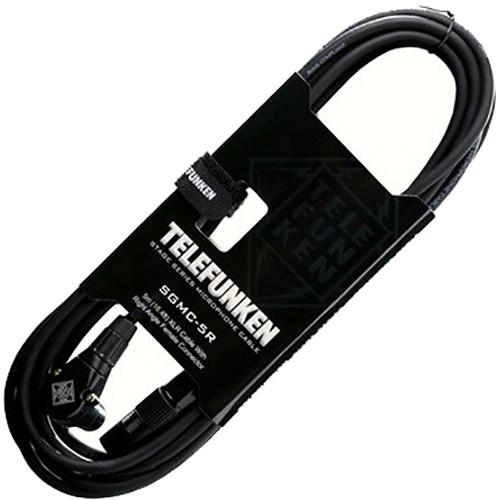

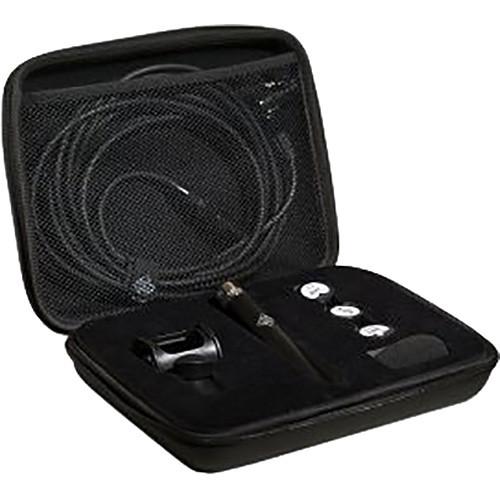

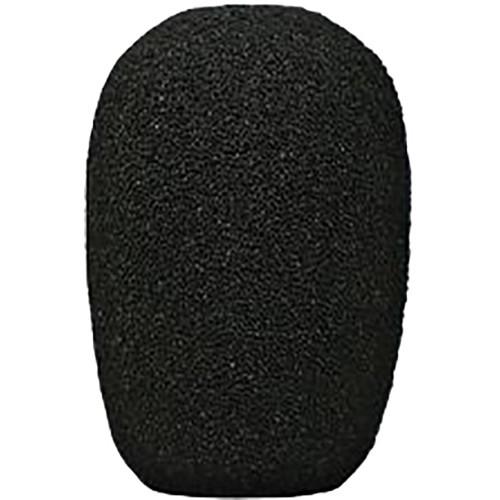

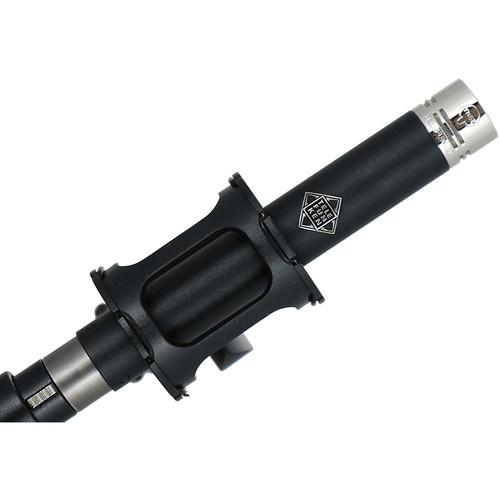

Product description The Telefunken M62 is a small-diaphragm hypercardioid FET condenser microphone designed to deliver fast transient response and accurate, yet musical frequency reproduction for musicians and recording engineers in home, project, and commercial studios. The M60 FET body features a custom-wound transformer, an active FET transistor, and a Class-A discrete amplifier. The included TK62 capsule utilizes a 6-micron, gold-sputtered membrane and exhibits a hypercardioid polar pattern.The M62's 130 dB maximum SPL, 20 Hz to 31.5 kHz frequency response, low self-noise, and fast transient response make it ideal for critical capture of a wide variety of instruments and room ambience. The supplied shockmount isolates the microphone from vibrations that would otherwise be transferred through the mic stand. A windscreen is included for reduction of noise from gusts of air. The M62 includes an XLR cable and a zipper carrying case. - Detailed Frequency Response
- The M62 package includes one M60 amplifier paired with a TK62 hypercardioid capsule, which features a 6-micron gold-sputtered membrane measuring 15mm in diameter. It offers surprisingly full low end and a quick, accurate transient response. The TK62 is flat in response from 150 Hz to 3 kHz with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz. This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.
- Sonic Characteristics
- The M62's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
- Circuit Design
- Utilizing a proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class-A discrete amplifier with a frequency response of
|
Upload User Manual
Have you got an user manual for the Telefunken M62 Small-Diaphragm FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken M62 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.59" / 15 mm (Condenser) | | Tube | No | | Polar Pattern | Hypercardioid | | Frequency Range | 20 Hz to 31.5 kHz | | Signal to Noise Ratio | 89 dB A-Weighted | | Equivalent Noise Level | 5 dB A-Weighted | | Maximum SPL | 130 dB SPL | | Pad | None | | THD | < 0.01% | | Impedance | 120 Ohms | | Sensitivity | 8.6 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 16.40' / 5 m | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V | | Length | 5.51" / 140 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.88 oz / 110 g |
