User Manual for Telefunken M81 Custom Handheld Supercardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken M81 Custom Handheld Supercardioid Dynamic
- Product category: Dynamic Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Dynamic Microphones
|
User manual for the Telefunken M81 Custom Handheld Supercardioid Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

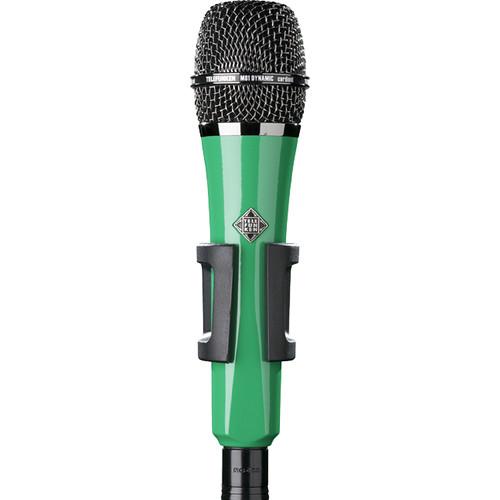

Product description Presented in a green body with a black grille, the Telefunken M81 Custom Handheld Supercardioid Dynamic Microphone delivers the sonic essence of a condenser in a rugged dynamic design. It features a wide 50 Hz to 18 kHz frequency response and high maximum SPL of 135 dB, making it equally suitable for voice, instruments, or drums onstage and in the studio. Its tonal character is tuned to soften bright or thin sources and yield a stronger emphasis on midrange clarity.The M81's head and capsule assembly is designed to reduce proximity effect while still providing present bass. Its supercardioid polar pattern provides enhanced off-axis rejection and high immunity to feedback. The M81 also features a custom-wound Telefunken T80 transformer. It ships with a mic clip and leather storage bag. - High Performance Features
-
- Tuned for guitars, drums, percussion, and brass
- Minimal proximity effect with articulate midrange
- Subdued high-end response tames bright vocals and instruments
- Supercardioid polar pattern provides enhanced directionality and immunity to feedback
- Custom-wound Telefunken T80 transformer
- Dynamic moving coil requires no batteries or phantom power
In the Box Telefunken M81 Custom Handheld Supercardioid Dynamic Microphone (Green Body, Black Grille) Leather Zipper Bag M 780 Mic Clip Limited 90-Day Warranty for Capsule with Extension to 1 Year Upon Registration Limited 1-Year Warranty for Amplifier Parts and Labor with Extension to 4 Years Upon Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken M81 Custom Handheld Supercardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken m81 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Diaphragm | 0.98" / 25 mm | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 135 dB SPL | | Pad | None | | Impedance | 325 Ohms | | Sensitivity | 1.54 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.24" / 184 mm | | Diameter | 1.89" / 48 mm | | Weight | 13.65 oz / 387 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
