User Manual for Telefunken M81-SH Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken M81-SH Dynamic Microphone
- Product category: Dynamic Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Dynamic Microphones
 |
User manual for the Telefunken M81-SH Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

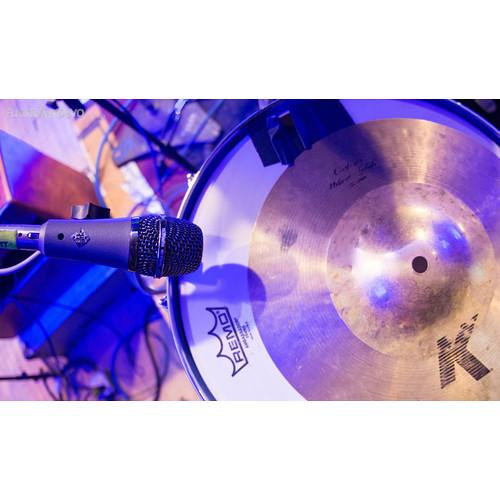

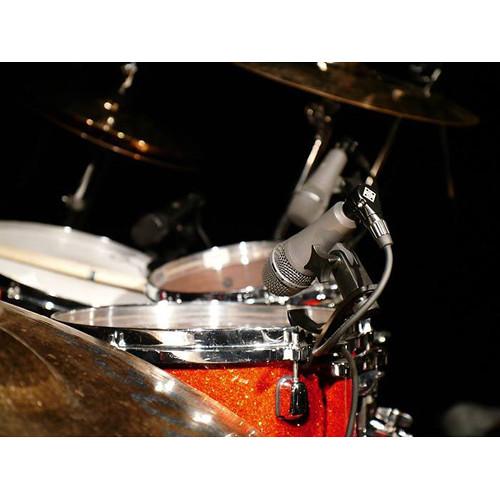

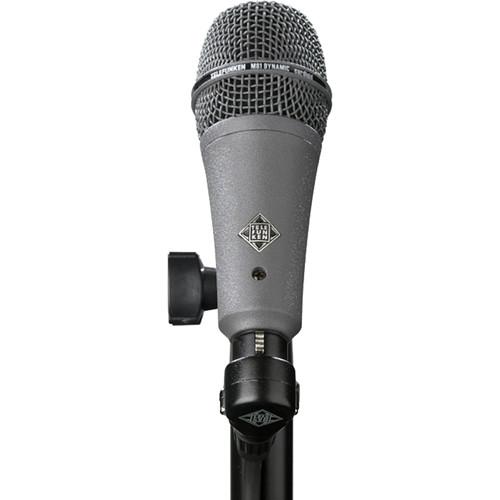

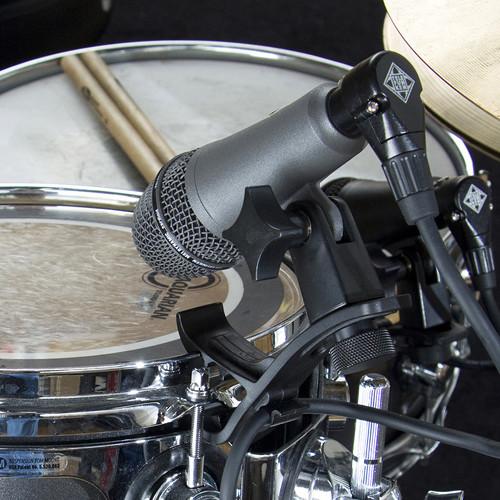

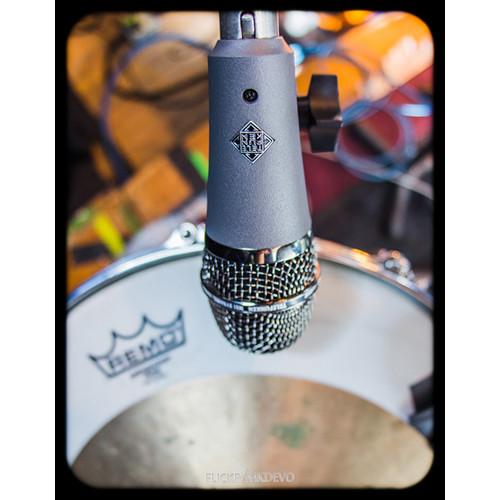

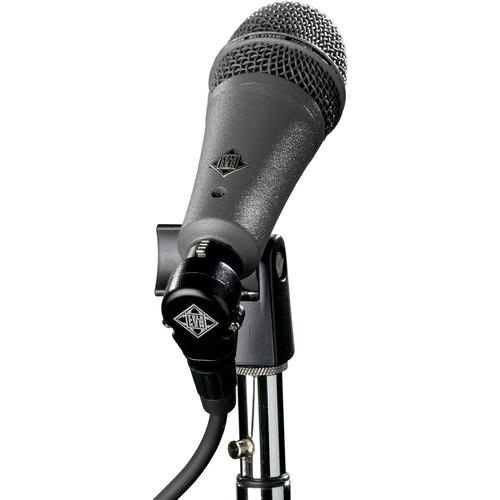

Product description The M81-SH Dynamic Microphone from Telefunken is designed to produce condenser-like audio reproduction for use on stage and in the studio. The microphone rejects feedback, has a minimal proximity effect, and is suitable for tom drums and instrument applications where a shorter microphone is required. The M81-SH has a high SPL capability and features a tight cardioid polar pattern with a subdued treble for a flatter overall frequency response. The microphone is constructed with a nickel grill and includes a leather microphone bag, a microphone clip, and a 5 meter right-angle XLR cable. - Delivers condenser-like performance in a durable dynamic design
- Equally suitable for toms and instruments on both stage and in the studio
- Wide frequency response and high SPL capabilities
- Low mass capsule and thin capsule membrane
- American made custom wound impedance matching transformer
UPC: 899051002473 In the Box Telefunken M81-SH Dynamic Microphone 3-Pin XLR Right Angle Cable (16.4' / 5 m) Leather Carrying Case Microphone Clip 2 x Drum Mounts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken M81-SH Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken M81 Specs | | | Transducer | Dynamic | | Diaphragm | 0.98" / 25.0 mm | | Polar Pattern | Supercardioid | | Frequency Range | 30 Hz to 18 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 250 Ohms | | Sensitivity | 1 mV/Pa | | | | Cable Length | 16.4' / 5 m | | Length | 4.93" / 125.1 mm | | Diameter | 2.48" / 63.0 mm | | Weight | 0.75 lb / 340 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 10.7 x 7.3 x 4.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
