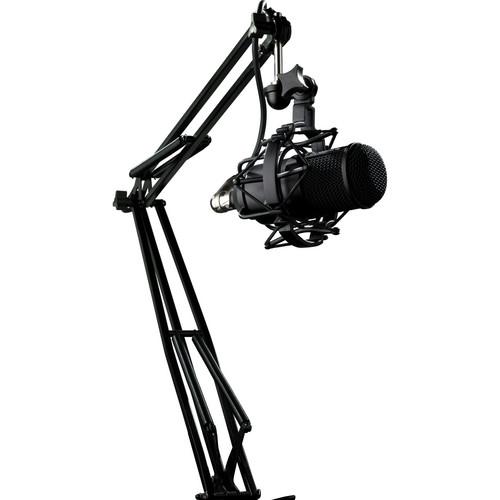

Product description The M82 Broadcast Package from Telefunken caters to the M82's abilities as a broadcast and voice-over microphone, and includes an M786 radio boom arm with built-in XLR cable, an M700 elastic shock mount, and a 5-meter right angle XLR cable.
The M82 features both a high boost EQ setting, allowing you to boost frequencies to accentuate the vocal range, allowing it to be used on vocals as well as kick drum. A zippered case is included for storing the M82 when not in use. - M82 Large Diaphragm Dynamic Microphone The M82 Large Diaphragm Dynamic Microphone from Telefunken is designed to capture kick drums and broadcast vocals and can also be used with general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments. It has an end-address configuration, a 35mm diaphragm, and features two separate EQ switches, allowing you to tailor the microphone's response to your sound source. These two switches work independently of each other and can be used together or not at all.
The kick EQ switch engages a passive filter that reduces the lower mid-range frequencies centered around 350 Hz, commonly cut when processing a kick drum. This keeps your kick drum from sounding "boxy" and allows the low end to remain strong. The high boost switch tilts the upper mid-range and high frequencies, starting around 2 kHz, with a 6 dB boost by 10 kHz. For kick drum use, this offers more beater attack when placed inside of a kick drum. For a source such as vocals or guitar amps, the high boost provides further articulation and airiness in the upper register. - Dynamic transducer with cardioid polar pattern
- Two separate EQ switches: a kick EQ switch and a high boost switch
- Designed to capture kick drums and broadcast vocals
- Suitable for general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments
- Includes leather carrying case and microphone clip
UPC: 899051002480 - M786 Radio Boom Arm with Built-In XLR Cable The M786 Radio Boom Arm from Telefunken provides an unobtrusive and convenient solution for mounting the company's M82 mic—or other popular broadcast microphones—to your desk. It is ideal for on-air radio, podcasts, or voice-over applications. The two-section spring design allows for easy mic positioning and minimizes handling noise as you move during your broadcast, while the built-in XLR cable provides a clean look and lets you connect to your mixer or interface. The M786 comes with a c-clamp for quick and easy setup and a plate mount for permanent installation.
-
- Two sections with spring tension
- Built-in XLR cable
- Two mounting options
UPC: 858513005414 - M 700 Microphone Elastic Shockmount for CU-29 The Telefunken M 700 Microphone Elastic Shockmount for CU-29 is a base threaded elastic shockmount for their CU-29 microphone. UPC: 858513005292
- SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2') The 16.2' SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector from Telefunken is engineered for use on live sound stages and in recording studios. Featuring a 100% copper wire, this cable is suitable for use in lower profile applications around the drum set and percussion rig, as well as on vocals and instruments.
- 100% copper conductors for superior signal transfer
- Copper-braid shield for maximum RMI and EMI noise rejection
- Low capacitance for detailed, transparent sound quality
- Silver solder joints for maximum conductivity and strength
- Right-angle female XLR connector
UPC: 899051002565 In the Box Bundle Items M82 Large Diaphragm Dynamic Microphone sczzcadydqwubwvqtcctvwtyfvyqzr M786 Radio Boom Arm with Built-In XLR Cable M 700 Microphone Elastic Shockmount for CU-29 SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2')
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken M82 Broadcast Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M82 Large Diaphragm Dynamic Microphone
| | | Transducer | Dynamic | | Diaphragm | 1.38" / 35.0 mm | | Polar Pattern | Cardioid | | Frequency Range | 25 Hz to 18 kHz | | Maximum SPL | 146 dB SPL | | Impedance | 300 Ohms | | Sensitivity | 1.85 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 350 Hz
6 dB/Octave @ 10 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.10" / 155 mm | | Diameter | 2.48" / 63 mm | | Weight | 22.40 oz / 635 g | | | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 4.6" | - M786 Radio Boom Arm with Built-In XLR Cable
| For Use with | Elektroakustik M82 microphone | | | | Box Dimensions (LxWxH) | 21.9 x 7.1 x 3.2" | - M 700 Microphone Elastic Shockmount for CU-29
| | | Box Dimensions (LxWxH) | 6.5 x 5.2 x 5.2" | - SGMC-5R Stage Series Microphone Cable with Right-Angle Female XLR Connector (16.2')
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 16.4' / 5 m | | Shielding | Copper Braid | | Conductor Material | Copper | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 11.3 x 3.4 x 0.9" |
