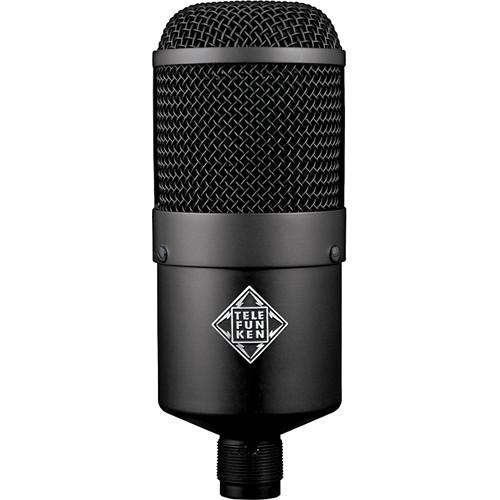

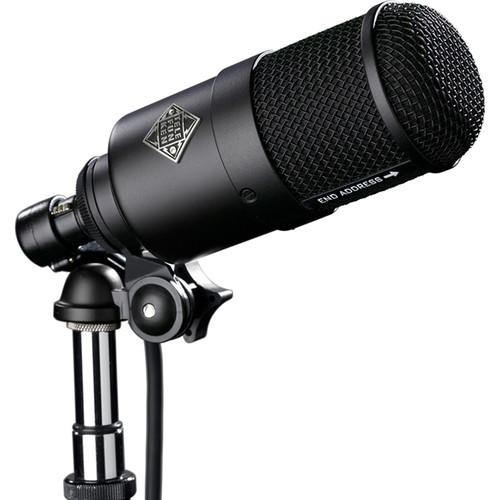

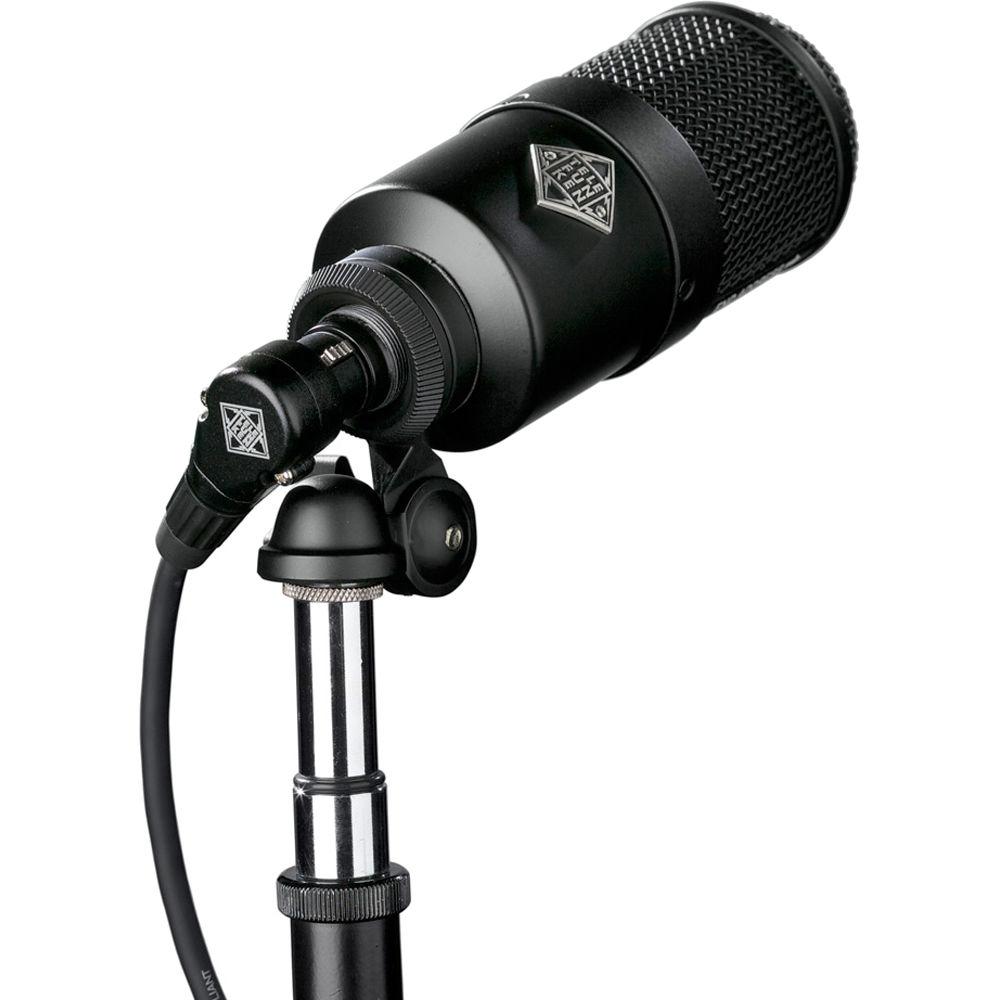

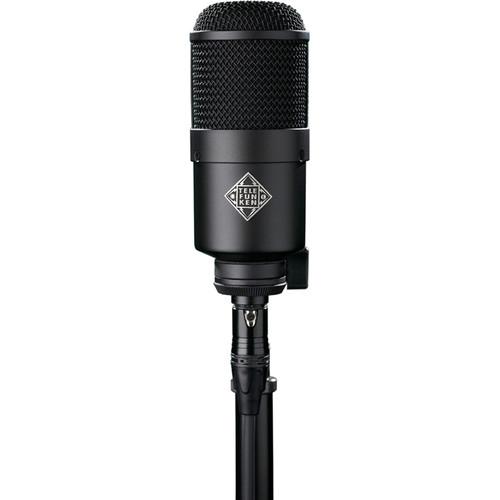

Product description The M82 Large Diaphragm Dynamic Microphone from Telefunken is designed to capture kick drums and broadcast vocals and can also be used with general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments. It has an end-address configuration, a 35mm diaphragm, and features two separate EQ switches, allowing you to tailor the microphone's response to your sound source. These two switches work independently of each other and can be used together or not at all.
The kick EQ switch engages a passive filter that reduces the lower mid-range frequencies centered around 350 Hz, commonly cut when processing a kick drum. This keeps your kick drum from sounding "boxy" and allows the low end to remain strong. The high boost switch tilts the upper mid-range and high frequencies, starting around 2 kHz, with a 6 dB boost by 10 kHz. For kick drum use, this offers more beater attack when placed inside of a kick drum. For a source such as vocals or guitar amps, the high boost provides further articulation and airiness in the upper register. - Dynamic transducer with cardioid polar pattern
- Two separate EQ switches: a kick EQ switch and a high boost switch
- Designed to capture kick drums and broadcast vocals
- Suitable for general vocals, percussion, broadcast voice, guitar amplifiers, bass amplifiers, organ, and brass instruments
- Includes leather carrying case and microphone clip
UPC: 899051002480 In the Box Telefunken M82 Large Diaphragm Dynamic Microphone Microphone Clip Leather Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken M82 Large Diaphragm Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken M82 Specs | | | Transducer | Dynamic | | Diaphragm | 1.38" / 35.0 mm | | Polar Pattern | Cardioid | | Frequency Range | 25 Hz to 18 kHz | | Maximum SPL | 146 dB SPL | | Impedance | 300 Ohms | | Sensitivity | 1.85 mV/Pa | | Low-Cut Filter | 6 dB/Octave @ 350 Hz
6 dB/Octave @ 10 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.10" / 155 mm | | Diameter | 2.48" / 63 mm | | Weight | 22.40 oz / 635 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.8 x 7.3 x 4.6" |
