User Manual for Telefunken TDA-1 Single-Channel Active Direct Box Click to enlarge the picture
Contents of the user manual for the Telefunken TDA-1 Single-Channel Active Direct Box
- Product category: Direct Boxes Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Direct Boxes
 |
User manual for the Telefunken TDA-1 Single-Channel Active Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

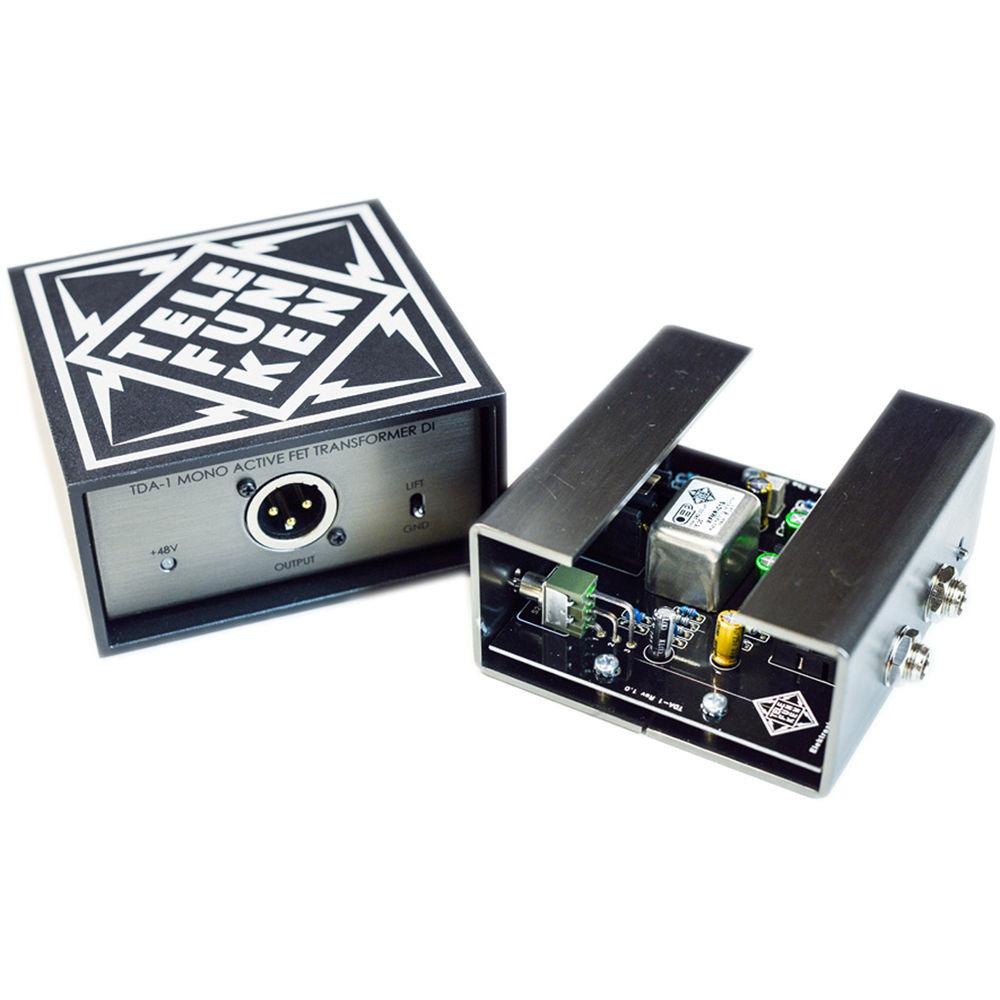

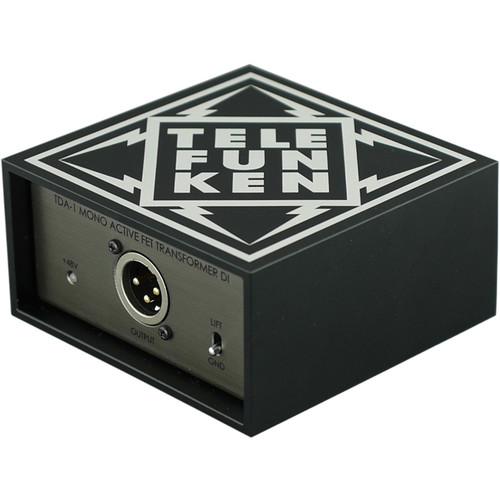

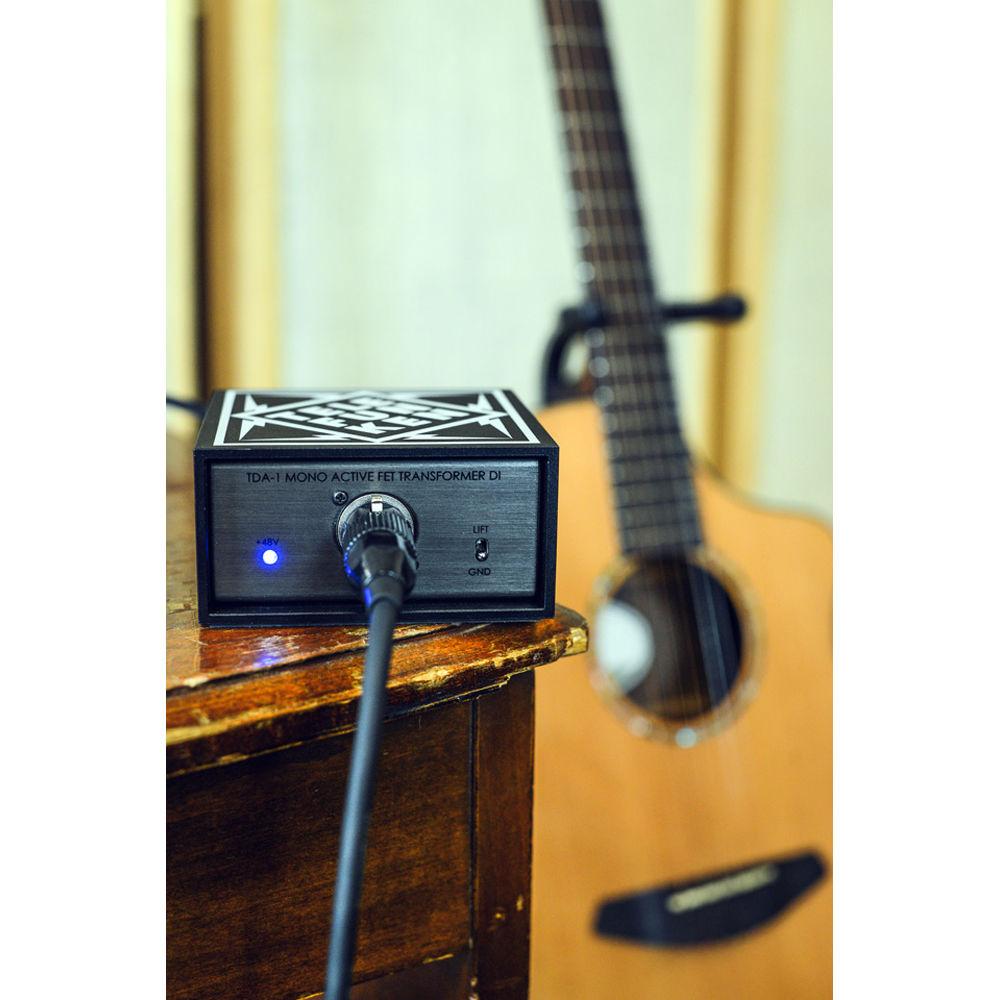

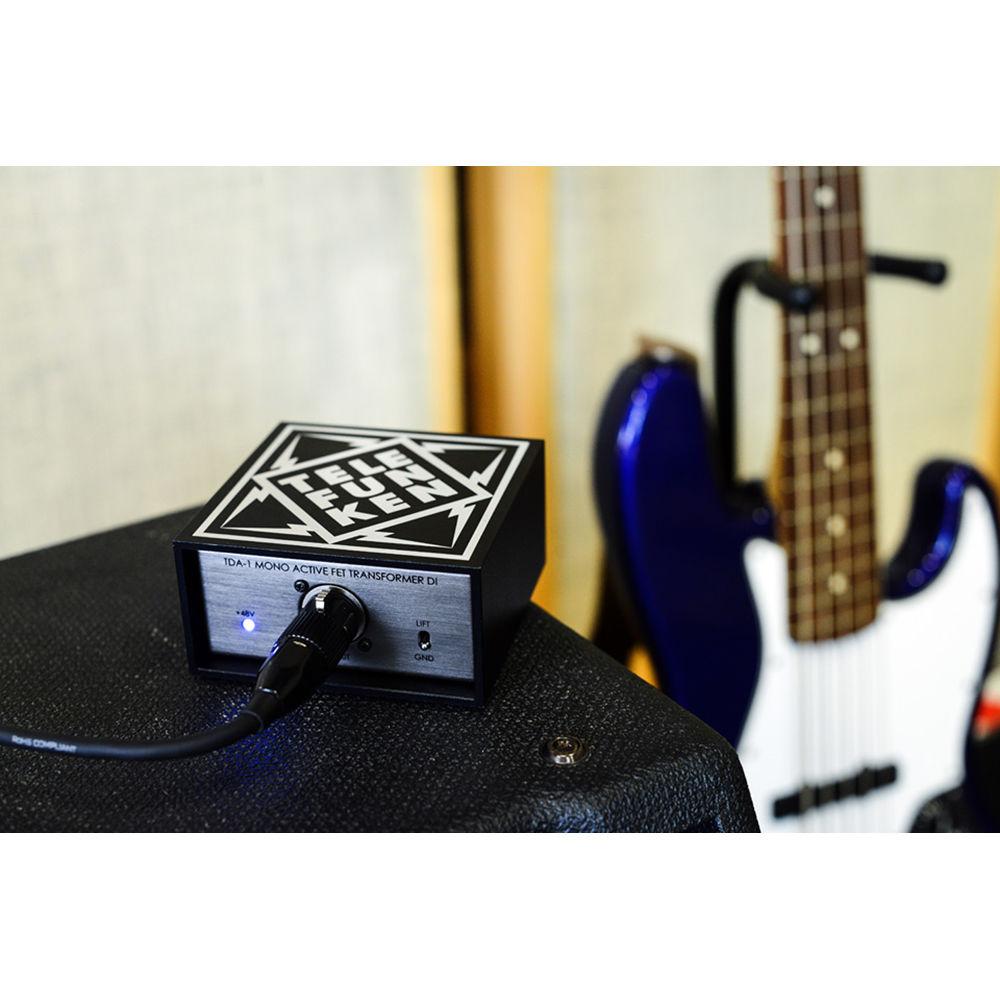

Product description Useful in connecting a guitar, keyboard, bass—or indeed, any other instrument with a 1/4" output—to an XLR input, the Telefunken TDA-1 is a single-channel DI box. The unit utilizes active, discrete class-A FET circuitry which, when coupled with components such as an OEP/Carnhill transformer, helps you to achieve a tone with clean, high headroom and a warm, saturated timbre. The TD-1 sports other constructive features which recommend it heartily; for instance, its printed circuit boards are assembled by hand with through-hole components; this ensures both security and reliability in its connection points. Additionally, all circuit traces have been gold-plated to bolster conductivity, while the circuit itself has been encased in an extruded aluminum enclosure. As such, you'll find it more than suitable for the wear and tear of gigging.

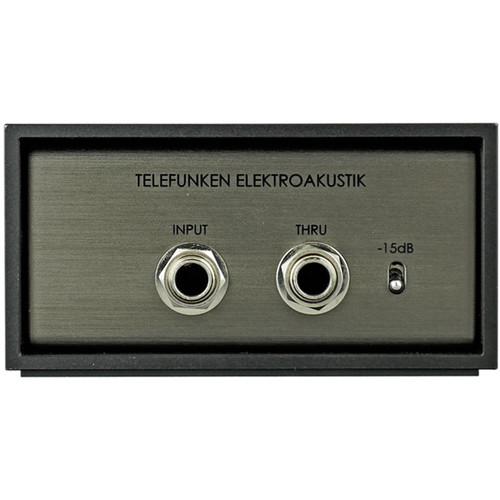

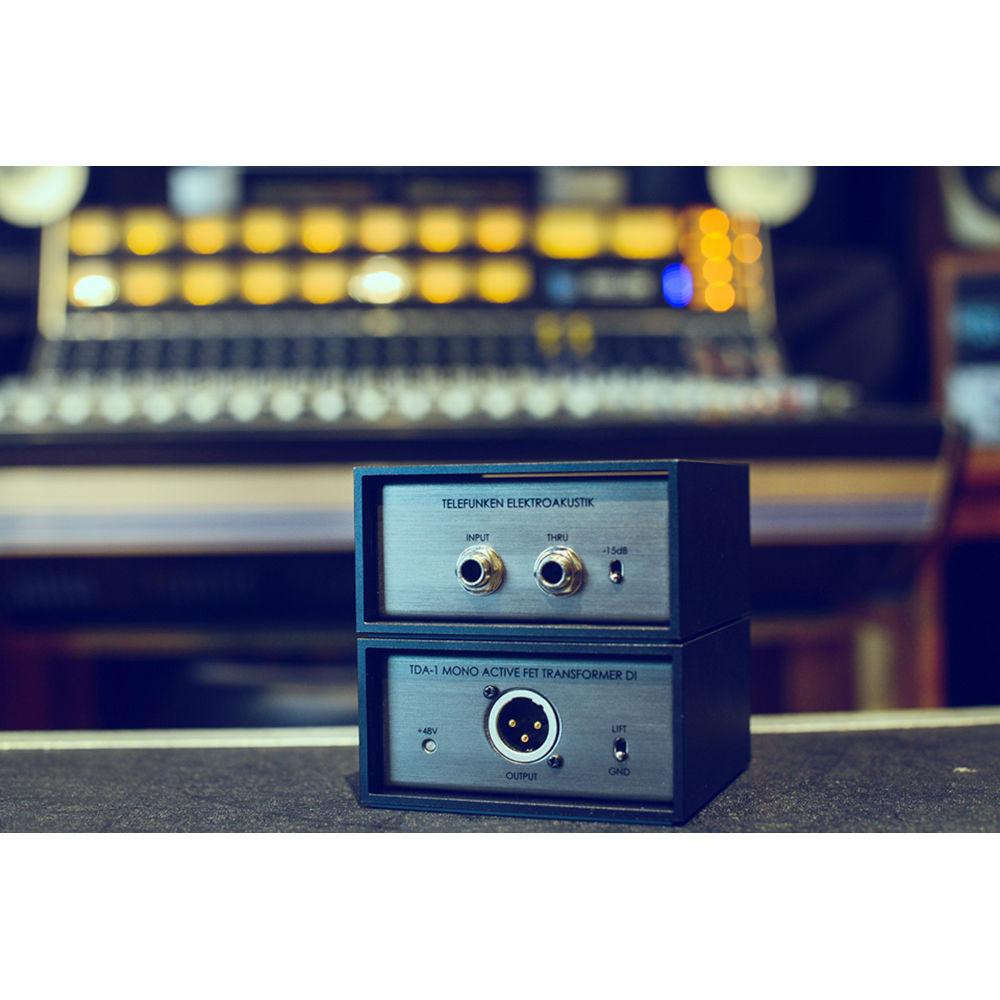

The DI box provides a frequency range of 20 Hz to 70 kHz, giving you both a -15 dB pad and a ground lift, should you encounter noise issues. A 1/4" pass-through output is also provided, making this unit very handy in the studio; for instance, you could take a DI off an electric guitar and use the 1/4" pass-through to plug into an amplifier. In this manner, you can record both the sound of an amped guitar and a clean, dry guitar, giving yourself options in the mix. This is but one of the many uses you may find for this feature.

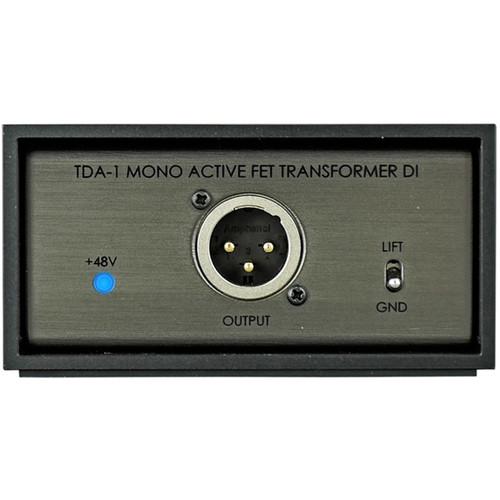

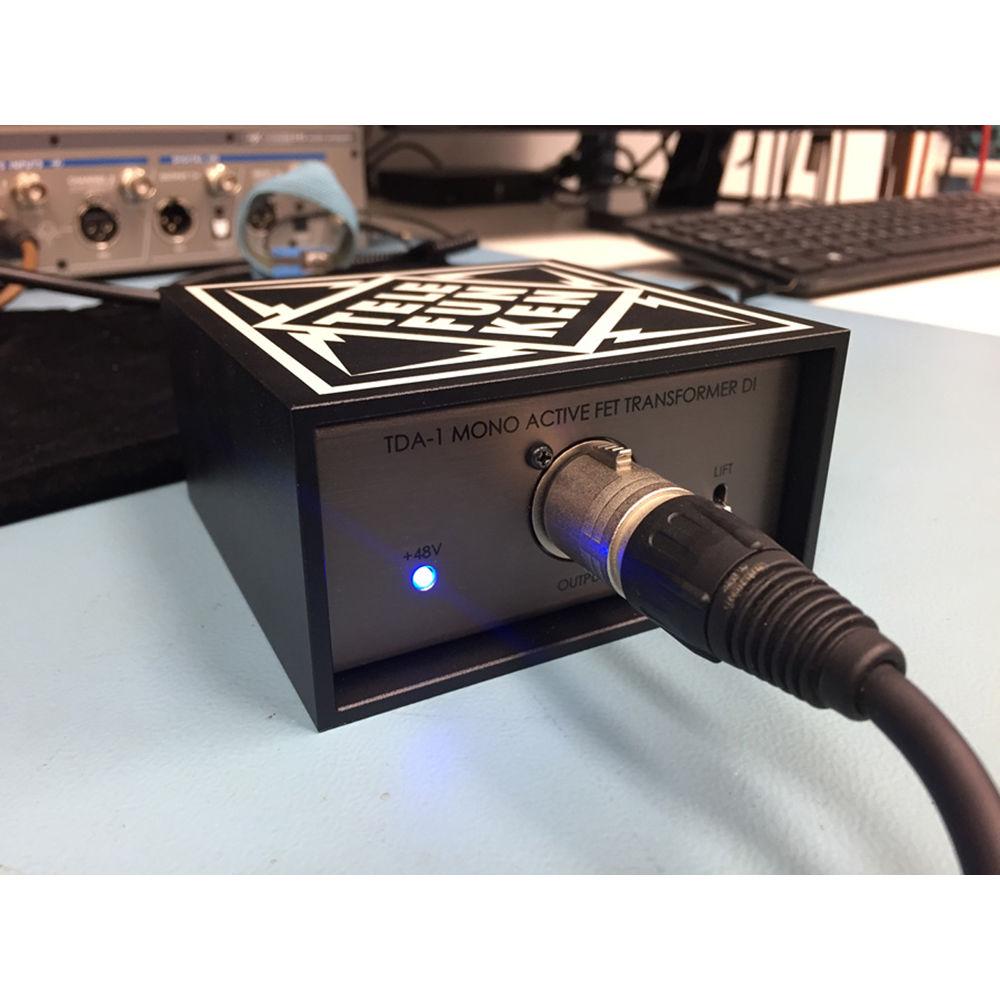

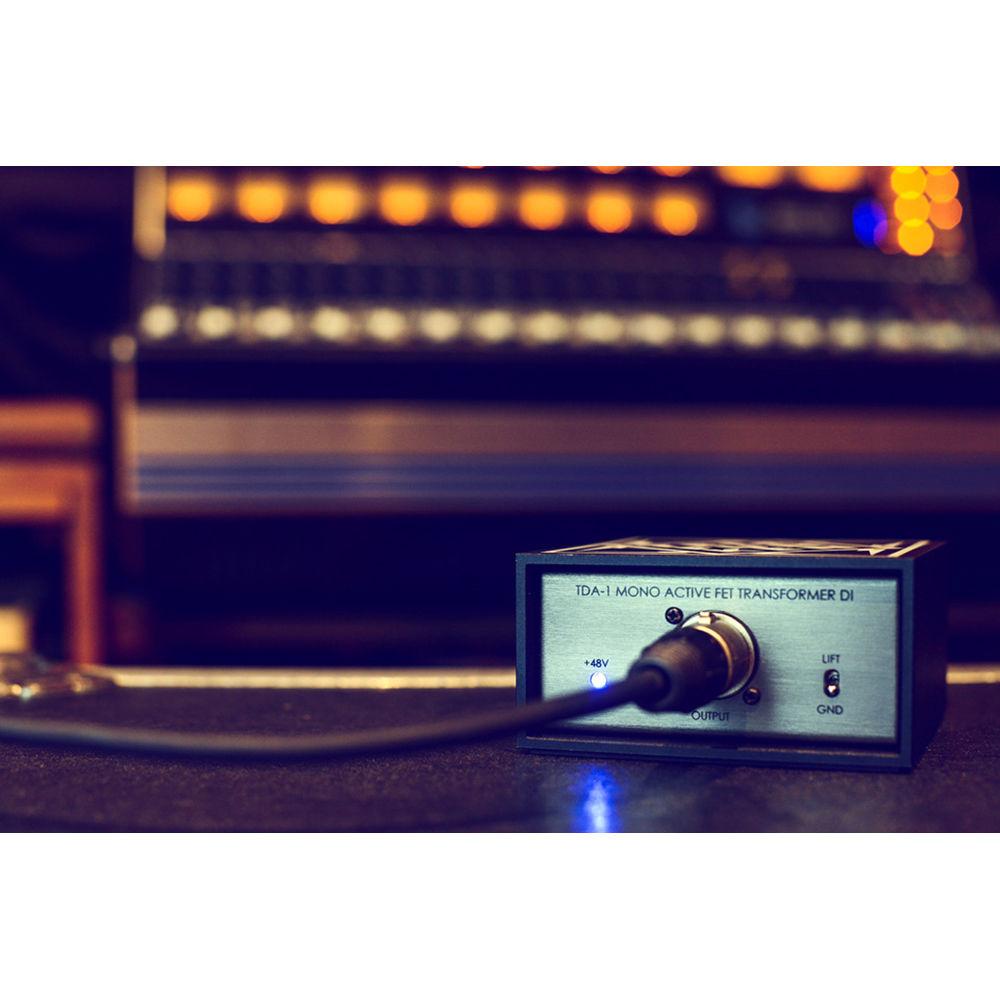

The circuit runs off of 48 VDC phantom power supplied from a console or recording interface, and an LED indicates when phantom power has been instantiated. Please note that if phantom power isn't running, you'll only get a substantially lower, weaker signal out of your instrument. - Key Features at a Glance
-
- Custom-wound OEP/Carnhill transformer, made in the UK
- Rugged aluminum construction
- Class-A discrete FET circuitry
- Recessed switches and connectors for protection
- +48V phantom powered with LED indicator
- -15 dB pad switch
- Ground lift switch
- 100% through-hole components
- Amphenol connectors
- WIMA, Nichicon, and Panasonic capacitors
- 1% 1/4W metal film resistors
UPC: 863212000325 In the Box Telefunken TDA-1 Single-Channel Active Direct Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken TDA-1 Single-Channel Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken TDA-1 Specs | Channels | 1 | | Connections | 2 x 1/4" jack (1 input, 1 pass through)
1 x XLR output | | Transformer | Custom-Wound OEP/Carnhill | | Frequency Range | 20 Hz to 70 kHz, ± 2 dB | | Noise | -116 dBV (unweighted) | | Input Impedance | 1 MOhm | | Output Impedance | < 100 Ohms | | Power Requirement | +48 VDC Phantom Power | | Current Draw | 3.8 mA | | Max Input | +1 dBV (no pad), +17 dBV (with pad) | | Dimensions (L x W x H) | 3.9 x 3.9 x 2.0" / 10.0 x 10.0 x 5.0 cm | | Weight | 16.2 oz / 459.0 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.8 x 5.4 x 3.4" |
