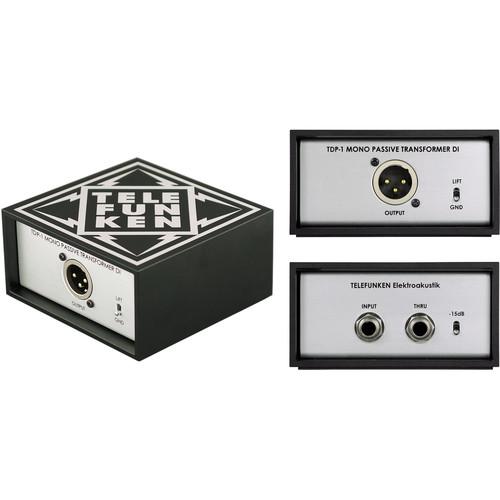

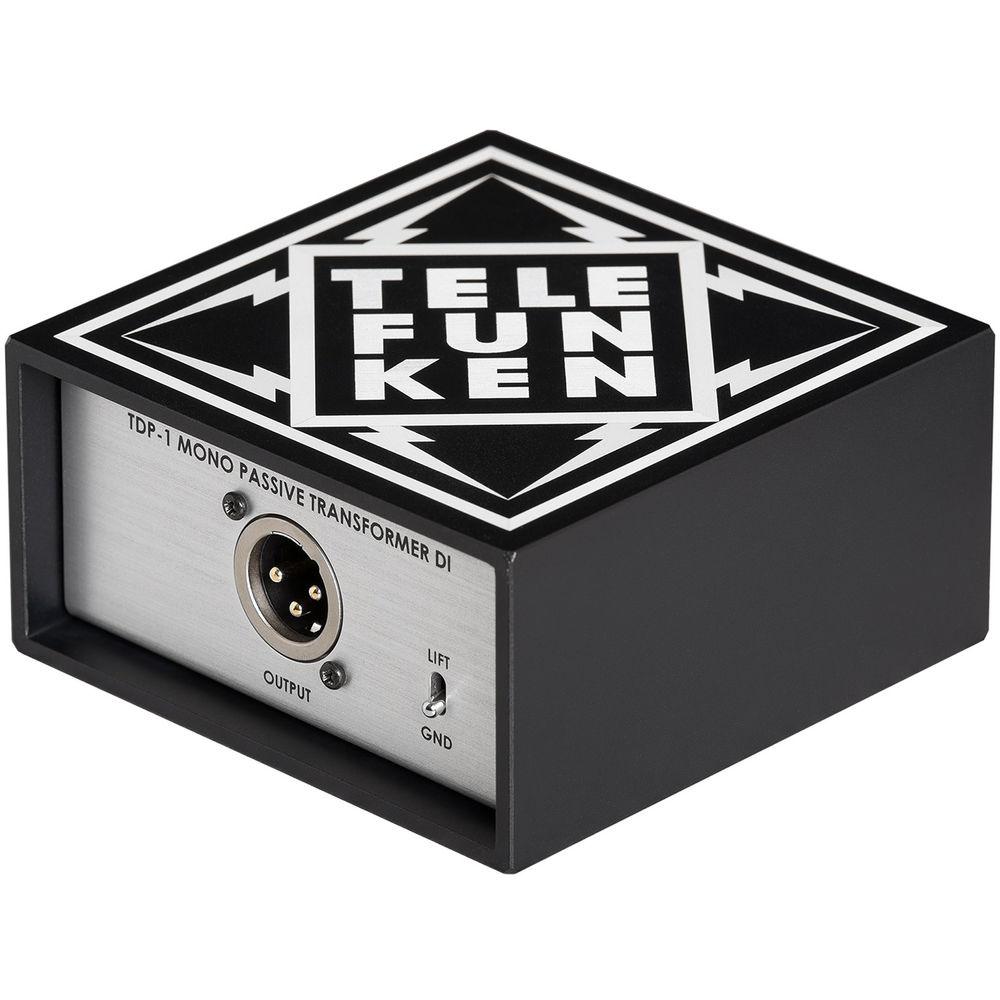

Product description Useful in connecting a guitar, keyboard, bass—or indeed, any other instrument with a 1/4" output—to an XLR input, the Telefunken TDP-1 is a single-channel DI box. It is passive in its construction, requiring no power whatsoever to run, though components such as an OEP/Carnhill transformer assist in lending the box tone both warm and rich.
The TDP-1 sports other constructive features which recommend it heartily; for instance, its printed circuit boards are assembled by hand with through-hole components; this ensures both security and reliability in its connection points. Additionally, all circuit traces have been gold-plated to bolster conductivity, while the circuit itself has been encased in an extruded aluminum enclosure. As such, you'll find it more than suitable for the wear and tear of gigging.
The DI box provides a frequency range of 10 Hz to 40 kHz, giving you both a -15 dB pad and a ground lift, should you encounter noise issues. A 1/4" pass-through output is also provided, making this unit very handy in the studio; for instance, you could take a DI off an electric guitar and use the 1/4" pass-through to plug into an amplifier. In this manner, you can record both the sound of an amped guitar and a clean, dry guitar, giving yourself options in the mix. This is but one of the many uses you may find for this feature. - Key Features at a Glance
-
- OEP/Carnhill transformer, made in the UK
- -15 dB pad switch
- Ground lift switch
- Rugged aluminum construction
- Recessed switches and connectors for protection
- 100% through-hole components
- Amphenol connectors
- WIMA and Nichicon capacitors
- 1% 1/4W metal film resistors
UPC: 863212000301 In the Box Telefunken TDP-1 Single-Channel Passive Direct Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken TDP-1 Single-Channel Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

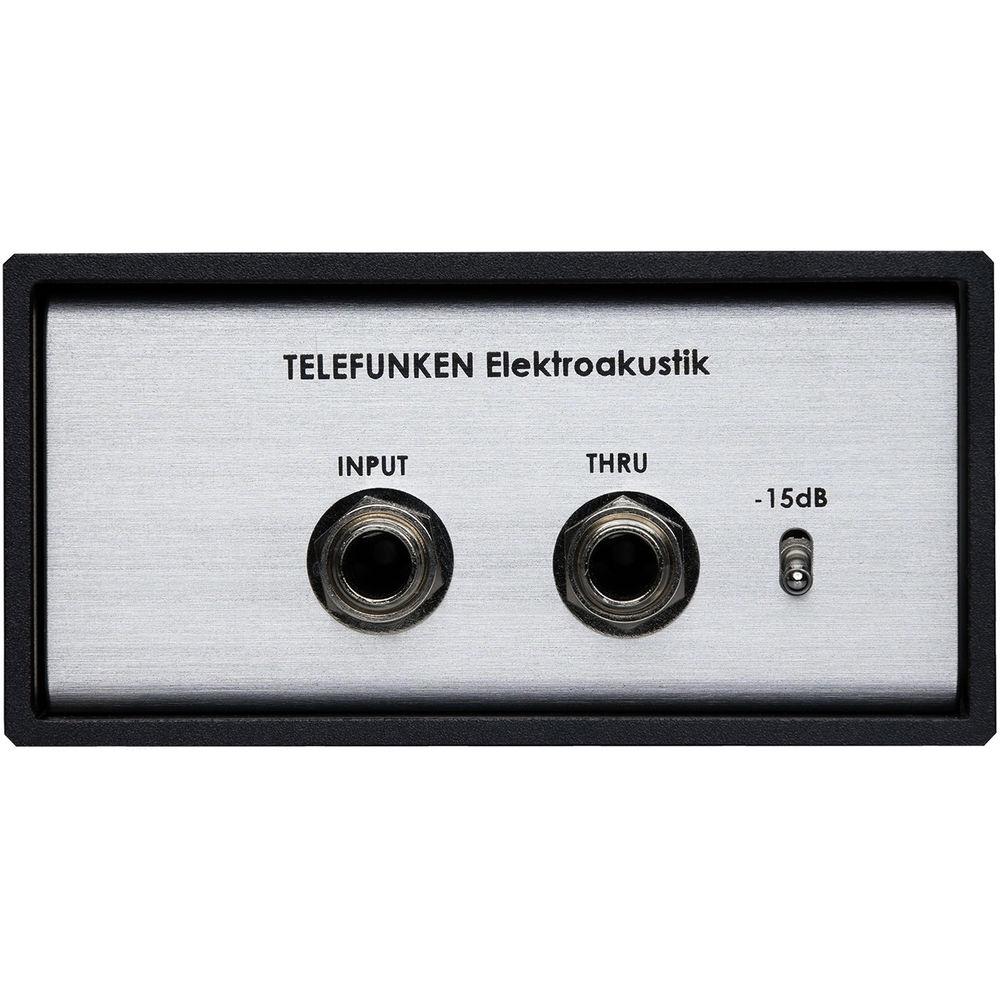

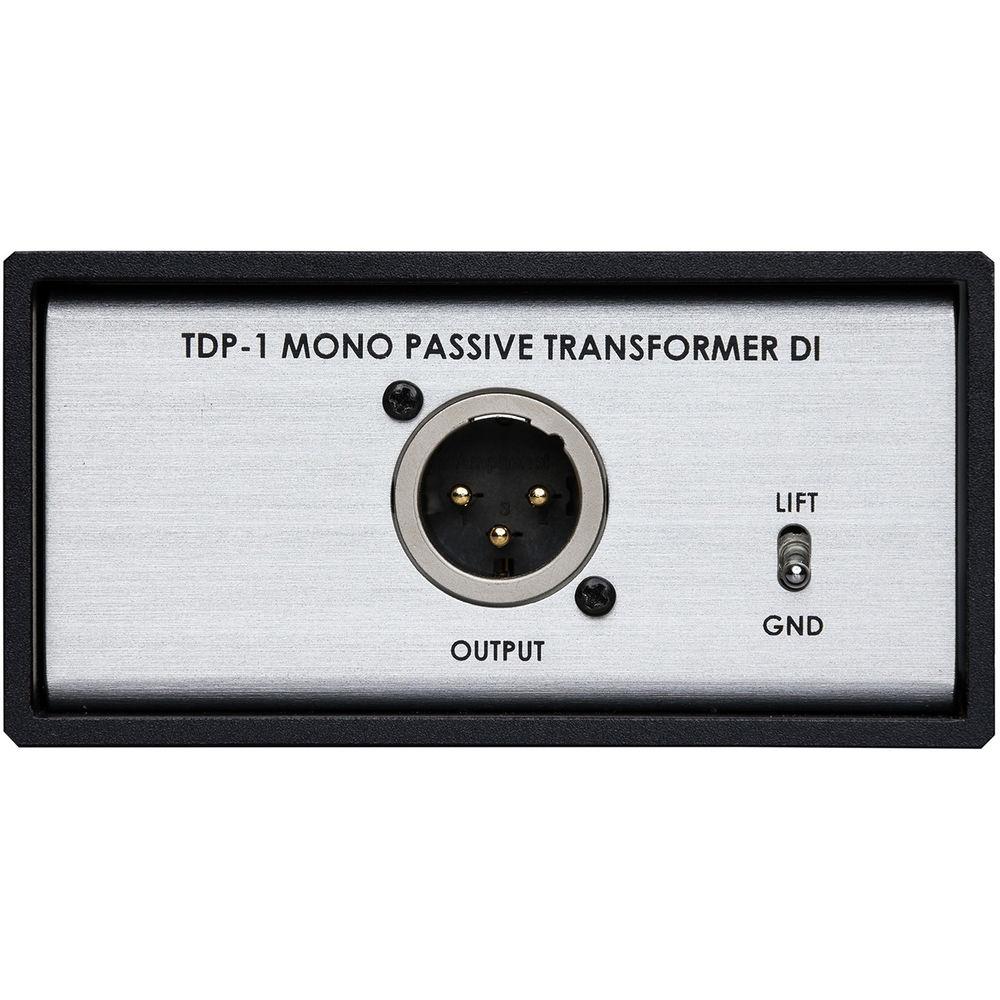

Technical parametersTelefunken TD-1 Specs | Channels | 1 | | Connections | 2 x 1/4" jack (1 input, 1 pass through)
1 x XLR output | | Transformer | Custom-Wound OEP/Carnhill | | Frequency Range | 10 Hz to 40 kHz, ± 2 dB | | Input Impedance | > 100 kOhms | | Output Impedance | > 100 kOhms | | Max Input | > +18 dBV | | Dimensions (L x W x H) | 3.9 x 3.9 x 2.0" / 10.0 x 10.0 x 5.0 cm | | Weight | 17.0 oz / 482.0 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 5.7 x 5.5 x 3.4" |
