User Manual for Telefunken U 48 Dual Pattern Tube Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken U 48 Dual Pattern Tube
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken U 48 Dual Pattern Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The U 48 Dual Pattern Tube Microphone from Telefunken was a favorite of Beatle's producer George Martin. Its cardioid and figure 8 polar patterns make it well suited for single and group vocal recordings, as well as instrument capturing. The famous M7 capsule features pristine tonal response and high SPL, and is coupled with Telefunken's BV8 output transformer and VF14K vacuum tube. The VF14K tube is Telefunken's first plug-and-play design. The coveted U 48 is sought after by leading recording professionals for capturing both vocals and instruments alike. - Cardioid and figure 8 polar patterns
- The head assembly from a U-47 can be fitted to a U-48 amplifier
- The large, chrome head grille houses the newly manufactured M7 capsule
- New BV8 output transformer and new "plug-n-play" VF-14k vacuum tube
- Authoritative mid-range and extended low-end response

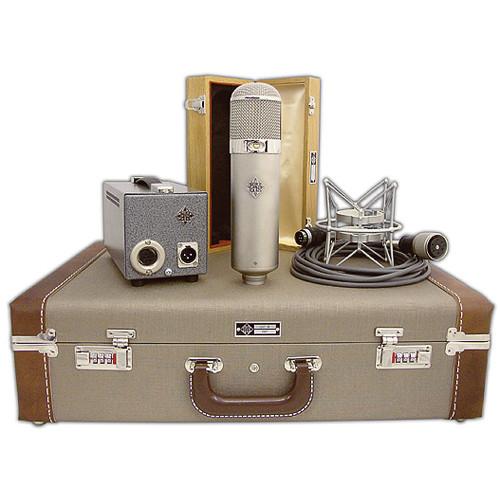

In the Box Telefunken U 48 Dual Pattern Tube Microphone Locking Case Power Supply Shock Mount Wooden Box 25' (7.6 m) Accusound Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken U 48 Dual Pattern Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken U 48 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8 | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9.5 dB A-Weighted | | Maximum SPL | 127 dB SPL | | THD | < 0.3% | | Impedance | 400 Ohms | | Sensitivity | 24.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 85 mA | | Length | 9.76" / 248 mm | | Diameter | 2.24" / 57 mm | | Weight | 22.01 oz / 624 g |
