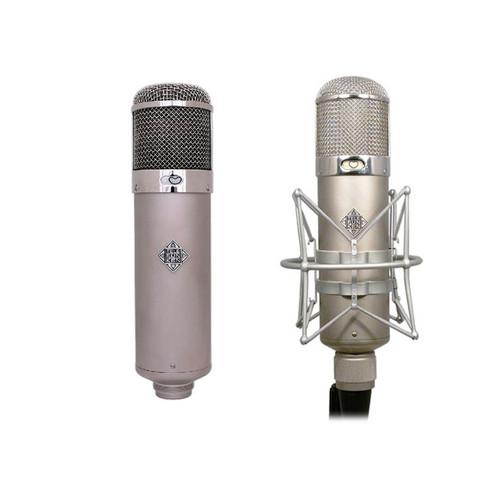

User Manual for Telefunken U47 48 Studio Set Click to enlarge the picture
Contents of the user manual for the Telefunken U47 48 Studio Set
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken U47 48 Studio Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The Telefunken U47/48 Studio Set delivers two coveted, classic microphones in a single package. Both Telefunken U47 and U48 microphones are included in the Studio Set along with a case, shockmounts, a power supply, and power supply cables. - U47 Dual Pattern Tube Microphone The U47 Dual Pattern Tube Microphone from Telefunken has been a staple in the recording industry since 1946. The first microphone to provide switchable cardioid and omnidirectional polar patterns, the U47 delivers both the warmth and versatility expected of the vintage studio tube microphone. The famous M7 capsule features pristine tonal response and high SPL, and is coupled with Telefunken's BV8 output transformer and VF14K vacuum tube. The VF14K tube is Telefunken's first plug-and-play design. The coveted U47 is sought after by leading recording professionals for capturing both vocals and instruments alike.
- The first condenser microphone to offer selectable polar patterns (cardioid and omni)
- The large, chrome head grille houses the newly manufactured M7 capsule
- New BV8 output transformer and new "plug-n-play" VF14K vacuum tube
- Authoritative mid-range and extended low-end response
UPC: 899051002244 - U 48 Dual Pattern Tube Microphone The U 48 Dual Pattern Tube Microphone from Telefunken was a favorite of Beatle's producer George Martin. Its cardioid and figure 8 polar patterns make it well suited for single and group vocal recordings, as well as instrument capturing. The famous M7 capsule features pristine tonal response and high SPL, and is coupled with Telefunken's BV8 output transformer and VF14K vacuum tube. The VF14K tube is Telefunken's first plug-and-play design. The coveted U 48 is sought after by leading recording professionals for capturing both vocals and instruments alike.
- Cardioid and figure 8 polar patterns
- The head assembly from a U-47 can be fitted to a U-48 amplifier
- The large, chrome head grille houses the newly manufactured M7 capsule
- New BV8 output transformer and new "plug-n-play" VF-14k vacuum tube
- Authoritative mid-range and extended low-end response
In the Box Bundle Items U47 Dual Pattern Tube Microphone fqxectqsbezevydbtaszuvxwdd - Limited 1-Year Warranty (4-Year Additional Warranty After Registration)
U 48 Dual Pattern Tube Microphone - 25' (7.6 m) Accusound Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken U47 48 Studio Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - U47 Dual Pattern Tube Microphone
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 127 dB SPL | | THD | < 0.3% | | Impedance | 400 Ohms | | Sensitivity | 24.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 85 mA | | Length | 9.76" / 248 mm | | Diameter | 2.24" / 57 mm | | Weight | 22.01 oz / 624 g | | | | Box Dimensions (LxWxH) | 25.9 x 24.8 x 11.5" | - U 48 Dual Pattern Tube Microphone
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8 | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9.5 dB A-Weighted | | Maximum SPL | 127 dB SPL | | THD | < 0.3% | | Impedance | 400 Ohms | | Sensitivity | 24.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 85 mA | | Length | 9.76" / 248 mm | | Diameter | 2.24" / 57 mm | | Weight | 22.01 oz / 624 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
