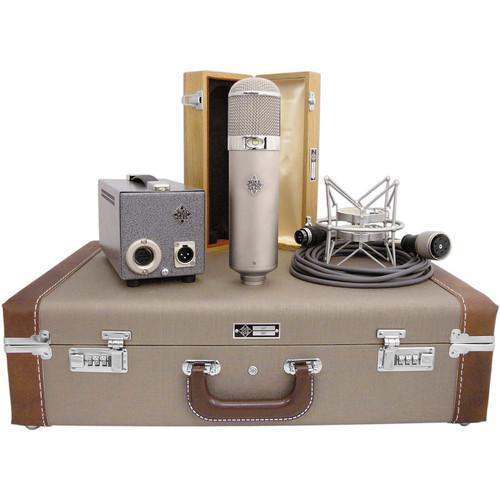

User Manual for Telefunken U47 Dual Pattern Tube Microphone Click to enlarge the picture
Contents of the user manual for the Telefunken U47 Dual Pattern Tube Microphone
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
|
User manual for the Telefunken U47 Dual Pattern Tube Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|
Product description The U47 Dual Pattern Tube Microphone from Telefunken has been a staple in the recording industry since 1946. The first microphone to provide switchable cardioid and omnidirectional polar patterns, the U47 delivers both the warmth and versatility expected of the vintage studio tube microphone. The famous M7 capsule features pristine tonal response and high SPL, and is coupled with Telefunken's BV8 output transformer and VF14K vacuum tube. The VF14K tube is Telefunken's first plug-and-play design. The coveted U47 is sought after by leading recording professionals for capturing both vocals and instruments alike. - The first condenser microphone to offer selectable polar patterns (cardioid and omni)
- The large, chrome head grille houses the newly manufactured M7 capsule
- New BV8 output transformer and new "plug-n-play" VF14K vacuum tube
- Authoritative mid-range and extended low-end response
UPC: 899051002244 In the Box Telefunken U47 Dual Pattern Tube Microphone Locking Flight Case Power Supply Shock Mount 25' Cable Wooden Box Limited 1-Year Warranty (4-Year Additional Warranty After Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken U47 Dual Pattern Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken U 47 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 127 dB SPL | | THD | < 0.3% | | Impedance | 400 Ohms | | Sensitivity | 24.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 85 mA | | Length | 9.76" / 248 mm | | Diameter | 2.24" / 57 mm | | Weight | 22.01 oz / 624 g | | | | Package Weight | 29.75 lb | | Box Dimensions (LxWxH) | 25.9 x 24.8 x 11.5" |
