User Manual for Telefunken U47 Dual-Pattern Tube Microphone Stereo Set Click to enlarge the picture
Contents of the user manual for the Telefunken U47 Dual-Pattern Tube Microphone Stereo
- Product category: Tube Microphones Telefunken
- Brand: Telefunken
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telefunken Tube Microphones
 |
User manual for the Telefunken U47 Dual-Pattern Tube Microphone Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telefunken product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telefunken user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telefunken product will considerably shorten its lifespan!
|

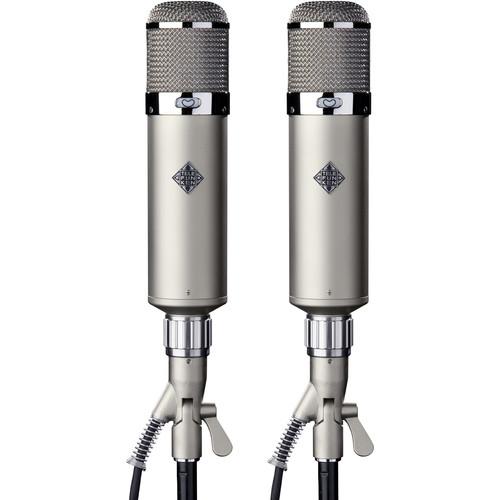

Product description The U47 Dual-Pattern Tube Microphone Stereo Set from Telefunken is a matched stereo pair of Telefunken U47 condenser microphones. The U47 has been a staple in the recording industry since 1946. The first microphone to provide switchable cardioid and omnidirectional polar patterns, the U47 delivers both the warmth and versatility expected in a vintage studio tube microphone. The famous M7 capsule features pristine tonal response and high SPL, and is coupled with Telefunken's BV8 output transformer and VF14K vacuum tube. Also, the VF14K tube is Telefunken's first plug-and-play design.The U47 has been sought after by leading recording professionals for capturing both vocals and instruments. With the U47 stereo set, you now have the option of using X/Y recording as well as spaced omni recording techniques. Designed for convenience, the set comes with a dual microphone-capable power supply included. Each component is hand selected to allow for as close of a match between the two microphones in each system as possible. Capsules are tuned to each other, and transformers and tubes are tested for matched gain and frequency response. - Offers selectable polar patterns (cardioid and omni)
- The large, chrome head grille houses the newly manufactured M7 capsule
- New BV8 output transformer and new "plug-n-play" VF14k vacuum tube
- Authoritative mid-range and extended low-end response

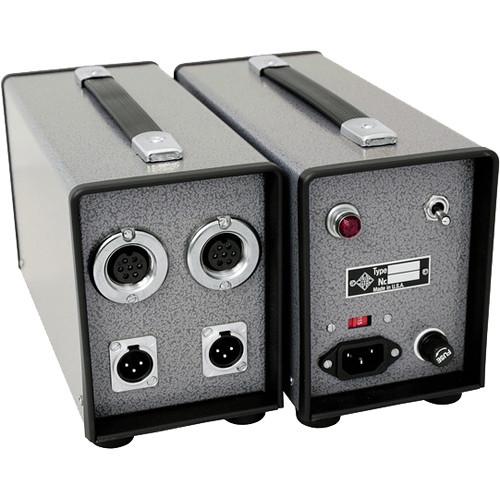

- Custom dual power supply powers both mics at once

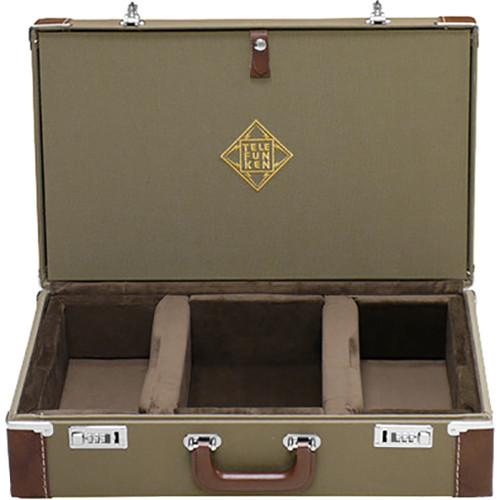

- Locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply

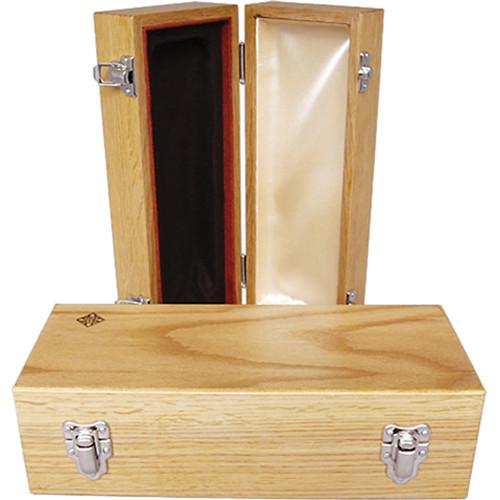

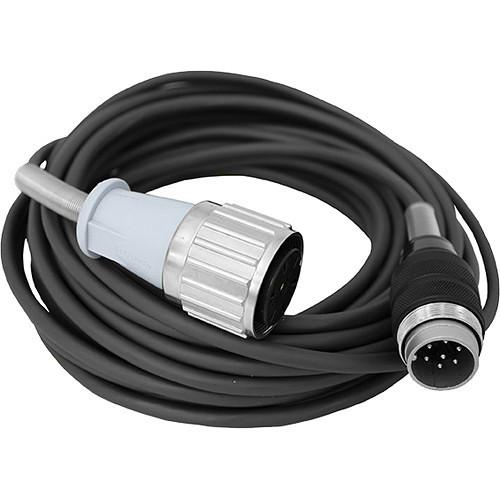

In the Box Telefunken U47 Dual-Pattern Tube Microphone Stereo Set 2 x U47 Tube Microphone Dual Power Supply 2 x Connecting Cable 2 x Wooden Storage Box Locking Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telefunken U47 Dual-Pattern Tube Microphone Stereo Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelefunken U 47 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 9 dB A-Weighted | | Maximum SPL | 127 dB SPL | | THD | < 0.3% | | Impedance | 400 Ohms | | Sensitivity | 24.5 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 85 mA | | Length | 9.76" / 248 mm | | Diameter | 2.24" / 57 mm | | Weight | 22.01 oz / 624 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
