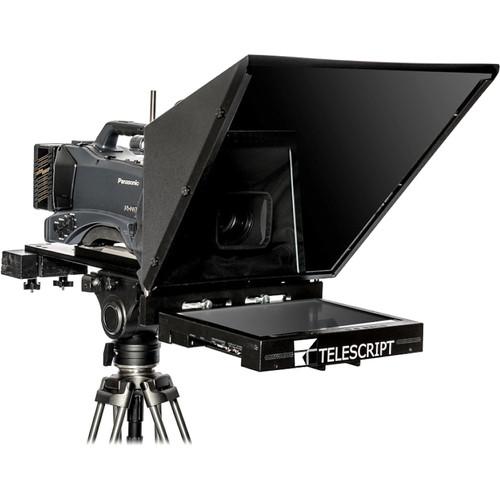

User Manual for Telescript FPS150s-SDI In-Studio On-Camera Flat Panel Prompting System with 15" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Telescript FPS150s-SDI In-Studio On-Camera Flat Panel
- Product category: Teleprompters Telescript
- Brand: Telescript
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telescript Teleprompters
|
User manual for the Telescript FPS150s-SDI In-Studio On-Camera Flat Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telescript product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telescript user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telescript product will considerably shorten its lifespan!
|
Product description Anatomy of a Teleprompter Read More ryssdbzbdevxtycqdvfdvrvwzabdqqdzey The FPS150s-SDI In-Studio On-Camera Flat Panel Prompting System from Telescript can be used with any ENG camera. FPS150s-SDI reflects text from the display screen onto a beamsplitter mirror positioned in front of the lens. With help of isopropyl alcohol and a soft cloth (not included), you can easily clean the beamsplitter glass. The FPS150s-SDI supports direct viewing. With the direct view option, operators can remove the hood and beam-splitter if desired. This configuration is suitable for jibs and technocranes in an outdoor setting. - Built-in image reverse function
- Maximum viewing distance of 35'
- SDI, HDMI, VGA, component, NTSC/PAL composite video, loop inputs
In the Box Telescript FPS150s-SDI In-Studio On-Camera Flat Panel Prompting System with 15" LCD Monitor Trapezoidal LensView Assembly Mount Assembly with 23" Counter Balancing Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telescript FPS150s-SDI In-Studio On-Camera Flat Panel Prompting System with 15" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelescript FPS150S-SDI Specs | Screen Size | 15.0" (38.1 cm) | | Maximum Viewing Distance | 2.0 to 35.0' (0.6 to 10.7 m) | | Supported Camera | ENG/Mini/Studio | | Beamsplitter | Trapezoidal | | Backlight | Backlight LED | | Brightness | 1000 nits (HighBrite) | | Reverse Action | Image: Horizontal & vertical | | Inputs | SDI, HDMI, VGA, component, NTSC/PAL composite video, loop | | Power Input | 12 VDC/4 A via 4-pin XLR | | Power Consumption | 28 W | | Locking Mechanism | Locking power and video connectors | | Case Material | Cool rolled steel | | Weight | 21.5 lb (9.8 kg) | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 24.0 x 20.75 x 17.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
