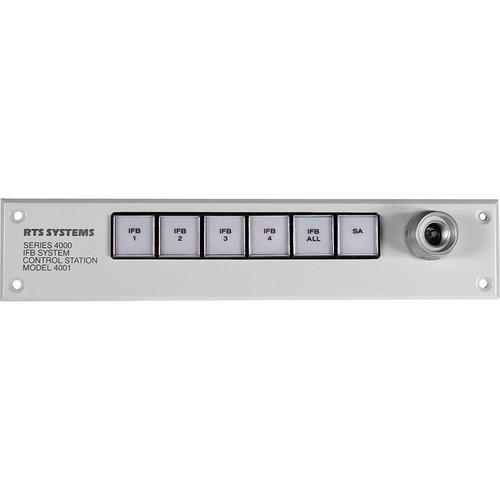

User Manual for Telex 4-Position Control Station For 4 IFB, 1 SA Click to enlarge the picture
Contents of the user manual for the Telex 4-Position Control Station For 4
- Product category: IFB & Cueing Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex IFB & Cueing
|
User manual for the Telex 4-Position Control Station For 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex 4-Position Control Station For 4 IFB, 1 SA allows you to control up to 4 talent feeds together with 1 Stage Announce Send. The station has 2 audio sends for each IFB channel. The station itself is easy to use with illuminated switches for easy use in any lighting situation, programmable priority levels, and a gooseneck microphone connector. - Controls up to 4 separate talent feeds plus 1 Stage Announce Send
- 2 distinct audio sends per IFB channel for interrupt/non-interrupt or multiple program feeds
- Has illuminated switches, programmable priority levels and gooseneck mic connector and is shipped with a wall power supply
- Optional rack kit is also available
- Requires one 4010 central IFB
UPC: 701001081080 Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex 4-Position Control Station For 4 IFB, 1 SA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex 4001 Specs | Function | Control station | | Form Factor | Rack-mount | | Frequency Response | 50 Hz to 16 kHz
+0, -3 dB | | Signal to Noise Ratio | 58 dB | | Total Harmonic Distortion | 0.2% | | Nominal Input Level | Microphone: 123mV p-p
Line: -15 dBu to -5 dBu | | Input Impedance | Microphone: 470 Ω
Line: 4.7 k Ω Unbalanced input | | Gain | 54 to 14 dB | | Nominal Output Level | -10 dBu, balanced, Z=300 Ω | | Power Requirements | 14 VAC, 200 mA | | Color | Gray | | Dimensions (DxWxH) | 8.5 x 3.4 x 1.75" (21.59 x 8.64 x 4.45 cm) | | Weight | 2.1 lb (950 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
