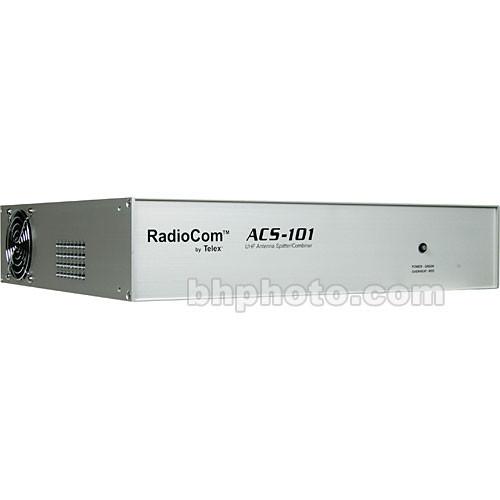

User Manual for Telex ACS-101 - Broadband UHF Antenna Combiner Splitter Click to enlarge the picture
Contents of the user manual for the Telex ACS-101 - Broadband UHF Antenna
- Product category: Wireless Intercom Accessories Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wireless Intercom Accessories
|
User manual for the Telex ACS-101 - Broadband UHF Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex ACS-101 amplified broadband combiner/splitter enables the operation of 10 UHF wireless intercom base transceivers using only two antennas. In addition to accommodating 10 transmit and 10 receiver antennas, it provides power connections for up to 10 base transceivers.
The ACS-101 features excellent output isolation, along with the broadband input filtering and amplification necessary for multi-frequency systems to prevent inter modulation. The unit is an ideal complement to the Telex BTR-1, RKP-4B, BTR-700 or BTR-800 series of UHF wireless intercoms, and supports directional and bi-directional log periodic antennas, along with standard 1/2 wave antenna types. - UHF antenna splitter and combiner for Telex wireless intercom systems
- High DC output power with low intermodulation distortion and high isolation between ports
- Accepts 1/2 wave, directional, and bi-directional log periodic antennas
- Power for up to 10 transceivers
- TNC connectors for consistent impedance across frequency range
UPC: 800549280396 In the Box Telex ACS-101 - Broadband UHF Antenna Combiner/Splitter (120V, US) Rack Mounting Kit Power Cable 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex ACS-101 - Broadband UHF Antenna Combiner Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex ACS-101 Specs | # Of Channels | 10 | | RF Frequency Range | Splitter: 614-746MHz
Combiner: 470-608MHz | | Attenuation / Gain | Not Specified by Manufacturer | | Dimensions (WxDxH) | 16.7 x 14.6 x 3.5" (426 x 372 x 89mm) | | Weight | 10.4 lbs (4.6kg) | | | | Package Weight | 18.25 lb | | Box Dimensions (LxWxH) | 21.1 x 19.5 x 6.5" |
