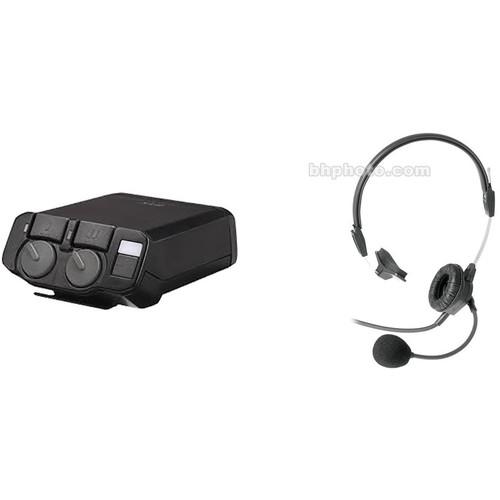

User Manual for Telex BP-325 Dual-Channel Binaural Programmable Beltpack and PH-88R5 Headset Kit Click to enlarge the picture
Contents of the user manual for the Telex BP-325 Dual-Channel Binaural Programmable Beltpack
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex BP-325 Dual-Channel Binaural Programmable Beltpack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex BP-325 Dual-Channel Binaural Programmable Beltpack and PH-88R5 Headset Kit from features a microprocessor-controlled 2-channel select intercom beltpack and a PH-88R5 single-sided, super-lightweight RTS communication headset. It is designed for use with an RTS two-wire intercom system. The BP-325 beltpack can be used to send and receive call signals to other devices on the intercom channel including audible call alerts on the listen side. It is compatible with dynamic microphones only but features 4-or 5-pin XLR headset connections. It is powered externally via the intercom system power supply on channel 1. The PH-88R5 is a single-sided, super-lightweight headset, which is comfortable for use all day long. It offers a dynamic noise-canceling gooseneck microphone with a semi-rigid and fully-adjustable boom for precise positioning. The wide-band dynamic earphones are covered in moleskin for superior fit, isolation, and frequency response. - Telex RTS BP-325 2-Channel Portable Beltpack Station (Black) Styled in black, the Telex RTS BP-325 is a 2-channel portable beltpack station designed to work in conjunction with RTS Two-Wire intercom systems and the appropriate, dynamic headset mic. It facilitates conversations across the air-waves in one of two fashions: you can either hold down the Talk button—which instantiates momentary mode, allowing you to remain inaudible when you're not pressing the button—or, conversely, tap the Talk button a few times, which will occasion the mechanism to latch into an ever-on position. Be advised, if you instantiate latching mode, everything you say will be heard until such time as you turn it off. This unit also sports the ability to send out a call signal, should you need page someone on one of the two provided channels. Likewise, you might also find yourself paged; in this case, the red call LED will flash, presenting you with the opportunity to speak with the person courting your attention.The RTS BP-325 also features a sidetone adjustment control for changing the level of your own voice in your discrete pair of headphones whilst talking. The unit supports mono and stereo headsets, and there's also a separate connector for monaural carbon-mic headsets. Furthermore, the RTS BP-325 sports the ability to generate an inaudible signal which can effectively "kill" the ongoing signals of unattended intercom stations.
- Call Function
- Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side
- Microphone Kill Detect
- Microprocessor controlled microphone kill detect
- Powered Externally
- Powered externally, via the intercom system power supply on channel one
- Headset
- Headset 4- or 5-pin XLR connection is available
UPC: 800549425490 - Telex PH-88R5 - Lightweight RTS Single Sided Intercom Headset Comparably Lightweight at 4.6 oz, the Telex PH-88R5 is a single sided intercom headset with a dynamic, noise cancelling boom microphone, and a padded adjustable headband. The semi-rigid gooseneck microphone boom is fully adjustable and easily positioned, and the earpiece features a moleskin covering for a comfortable and secure fit. The headset cable connector is a 5-pin XLR Male type. UPC: 800549415279
In the Box - RTS BP-325 2-Channel Portable Beltpack Station (Black) vxqffscbxueczwcdycbsatvxeuyq
- Limited 3-Year Warranty
- PH-88R5 - Lightweight Single Sided RTS Intercom Headset
Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BP-325 Dual-Channel Binaural Programmable Beltpack and PH-88R5 Headset Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Telex RTS BP-325 2-Channel Portable Beltpack Station (Black)
| Material of Construction | Polystyrene and polycarbonate mix | | Impedance | Across Intercom Line: 10 kOhms typical | | Noise | -75 dBu contribution to 200 Ohms Intercom Line | | Program Input | Maximum input level: +20 dBu
Nominal input level: -10 to +8 dBu
Frequency response: 100 Hz to 12 kHz, ±3 dB | | Connector | Monaural Dynamic-mic Headset Connector
XLR-4-31 receptacle (J13)
Pin 1 - Microphone low
Pin 2 - Microphone high
Pin 3 - Common
Pin 4 - Headphone high
Stereo Dynamic-mic Headset Connector
XLR-5-31 receptacle (J14)
Pin 1 - Microphone low
Pin 2 - Microphone high
Pin 3 - Common
Pin 4 - Headphone left high
Pin 5 - Headphone right high
Carbon-mic Headset Connector (J1)
1/4", 3-conductor Phone JackUsed for Headset:
Tip - Carbon microphone
Ring - Headphone
Sleeve - Common
Used for Mic Switch:
Tip - Remote switch normal-open contact
Ring - No connection
Sleeve - Remote switch common
Intercom Line Input Connector (J11)
XLR-3-31 female receptacle
Pin 1 - Common
Pin 2 - Channel 1 intercom audio and +DC
Pin 3 - Channel 2 intercom audio
Line Loop/Aux Connector (J10)
XLR-3-32 male receptacleUsed for Loop-through:
Pin 1 - Common
Pin 2 - Channel 1 intercom audio and +DC
Pin 3 - Channel 2 intercom audioUsed for Program Input:
Pin 1 - Common
Pin 2 - Program input high
Pin 3 - Program input lowUsed for Remote Mic Switch and/or External Power:
Pin 1 - Common
Pin 2 - +22 to +24 VDC
Pin 3 - Remote switch normal-open contact | | Power Requirements | 30 VDC nominal (standard RTS line), 65 to 85 mA | | Environmental Requirements | Storage: -4 to 176° F (-20 to 80° C); 0% to 95% humidity, noncondensing
Operating: 32 to 122° F (0 to 50° C); 0% to 95% humidity, noncondensing | | Dimensions (H x W x D) | 5.0 x 3.8 x 2.1" (127.0 x 96.3 x 52.1 mm) | | Weight | 12 oz (340 g) | | | | Box Dimensions (LxWxH) | 8.9 x 4.9 x 4.35" | - Telex PH-88R5 - Lightweight RTS Single Sided Intercom Headset
| Type | Lightweight Single Sided RTS Intercom Headset with Dynamic Noise-Cancelling Microphone | | Frequency Range | 300 Hz - 15 kHz | | Microphone Type | Dynamic, Noise-Cancelling | | Mic Frequency Response | 30 Hz - 10 kHz | | Impedance | 150 Ohms (Headphone)
200 Ohms (Microphone) | | Sensitivity (0 VU) | Not specified by Manufacturer | | Maximum Input Power | Not specified by Manufacturer | | Connectors | 1 x 5-Pin XLR Male (A5M) | | Cable Length | 6' (1.8 m) | | Weight | 4.6 oz (130.4 g) | | | | Box Dimensions (LxWxH) | 10.35 x 9.0 x 2.85" |
