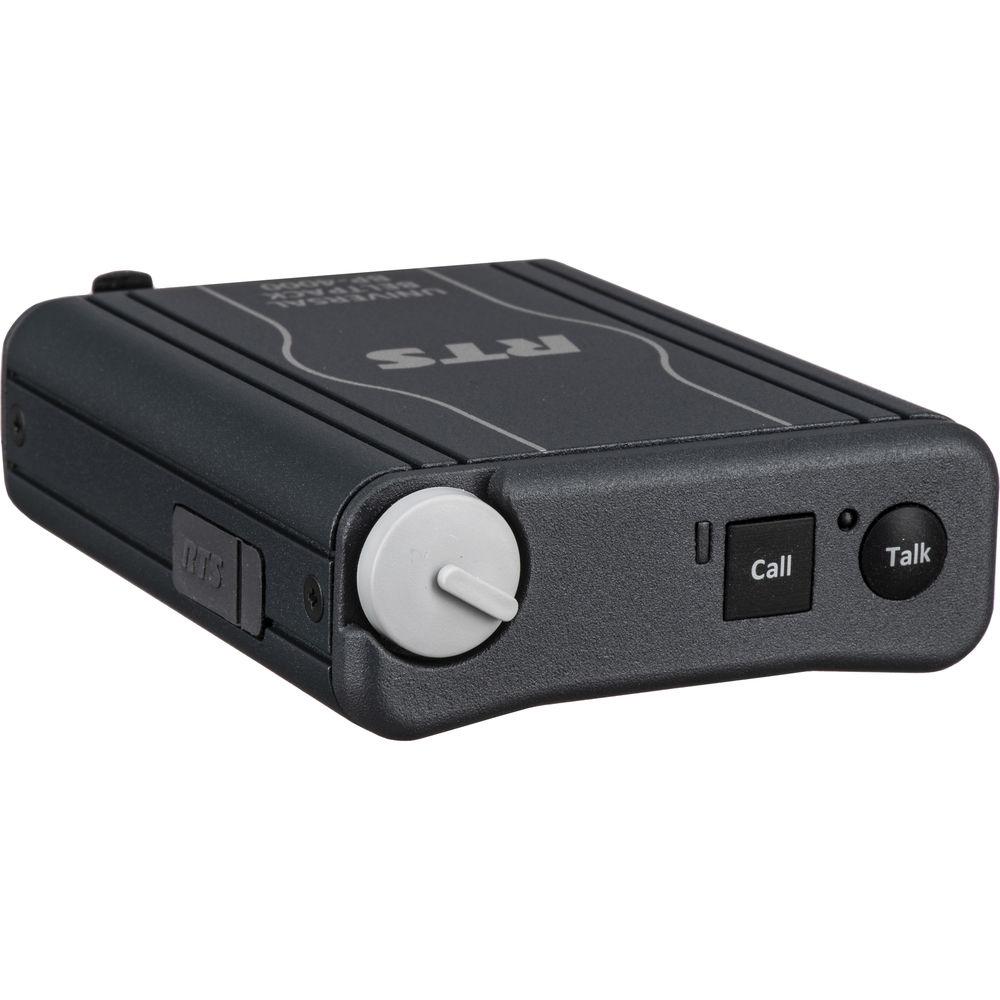

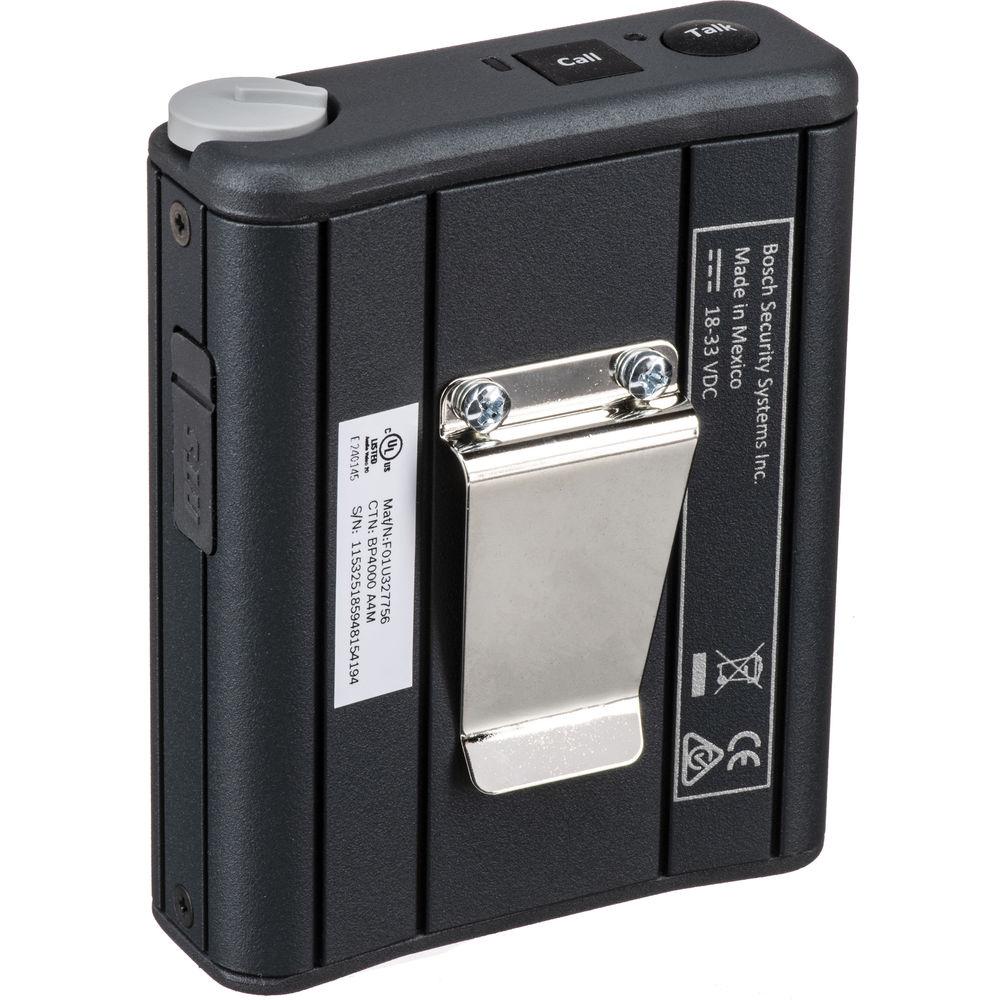

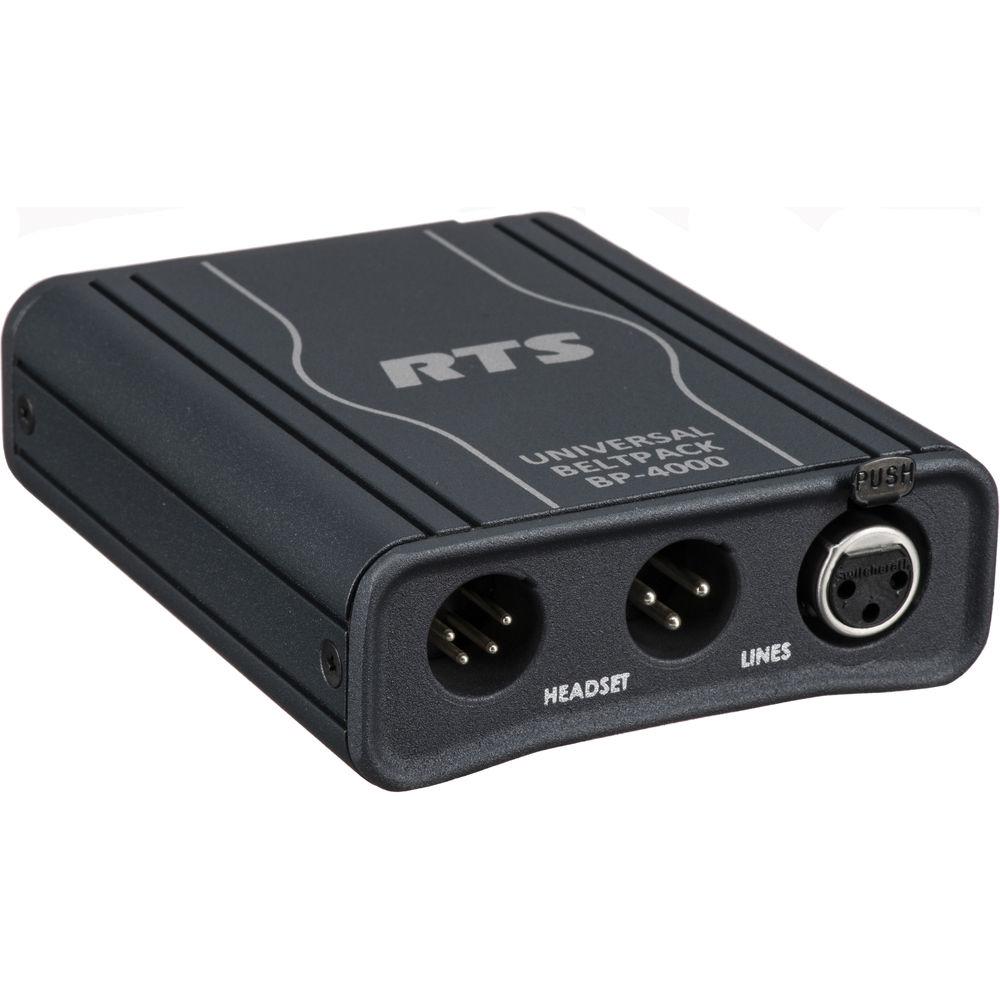

Product description With the Telex BP4000A4M Single-Channel Portable Beltpack Headset Station, you can stay in communication on an RTS, Audiocom, or Clear-Com intercom system. This wired beltpack station features auto-wiring scheme detection, which automatically recognizes the system you plug it into, and configures itself to be used with it.
The beltpack also features intelligent power management, so you can daisy-chain up to 40 beltpacks by using a single (optional) PS-20 power supply. A current pump circuit constantly keeps tabs on overall cable length, versus the actual current consumption, so each beltpack receives the voltage it needs.
The BP-4000 has additional features to help make it easy to integrate it into an intercom system, including guided setup and various communication controls. Connections are made by means of a male, 4-pin XLR connection. - Enhanced Talk Button Control
- You have the option to set your talk settings to either "always on", "always off", or "switching". A built-in blinking lamp gives you a visual indicator to incoming calls.
- Remote Microphone Kill Switch
- Any user on the intercom can instantly mute the mics on all attached BP4000A4M beltpacks by sending an inaudible "kill signal". This feature can be overridden if needed, but is useful to have in situations where an open mic somewhere in the partyline needs to be immediately silenced.
- Voice Guided Setup
- Rather than configure internal jumpers and switches, short voice prompts help you navigate the menu options to configure the BP4000A4M. If needed, you also have the ability to reset the beltpack to factory default settings.
- Headset Compatibility
- The BP4000A4M has a 4-pin male XLR port that is compatible with a (separately available) 4-pin female XLR headset. Both dynamic and electret headset microphones are supported.
UPC: 800549831789 In the Box Telex BP4000A4M Single-Channel Portable Beltpack Headset Station (4-Pin XLR, Male) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BP4000A4M Single-Channel Portable Beltpack Headset Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex RTS BP4000 Specs | Connection | 1 x XLR (4-Pin, Male) | | Call Signaling | Balanced Intercom Channel: 20 kHz, Send and Receive
Unbalanced Intercom Channel: 20 kHz/DC, Send and Receive | | Mic Off Frequency | Balanced Intercom Channel: 24 kHz, Send and Receive | | Output Level | Balanced Intercom Channel: 0.0 dBu, Nominal
Unbalanced Intercom Channel: 0.0 dBu, Nominal | | Load Impedance | Balanced: 300 Ohms
Unbalanced: 200 Ohms | | Noise | Balanced: < -60 dBu
Unbalanced: < -60 dBu | | Total Harmonic Distortion | Balanced: < 1.0%
Unbalanced: < 1.0% | | Bridging Impedance | Balanced: > 10 kOhms
Unbalanced: > 10 kOhms | | Headphone Amplifier | Maximum Output: > 140 mW into 150-Ohm Load
Frequency Response: 200 Hz to 8 kHz (±2 dB)
Audible Alert: 1 kHz
Total Harmonic Distortion: < 1.0%
Sidetone: > 20 dB Dynamic Range | | Maximum Operating Current | Balanced: 52 mA
Unbalanced: 45 mA | | Power | 18 to 33 VDC | | Operating Temperature | 32 to 131° F / 0 to 55° C) | | Operating Humidity | 5 to 95%, non-condensing | | Storage Temperature | -4 to 158° F / -20 to 70° C | | Storage Humidity | 15 to 90%, Non-Condensing | | Dimensions (W x D x H) | 3.7 x 1.3 x 4.7" / 95.2 x 34.2 x 119.2 mm
3.7 x 1.6 x 4.8" / 95.2 x 39.4 x 121.6 mm (with Belt Clip and Top Panel Button) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.6 x 6.3 x 2.2" |
