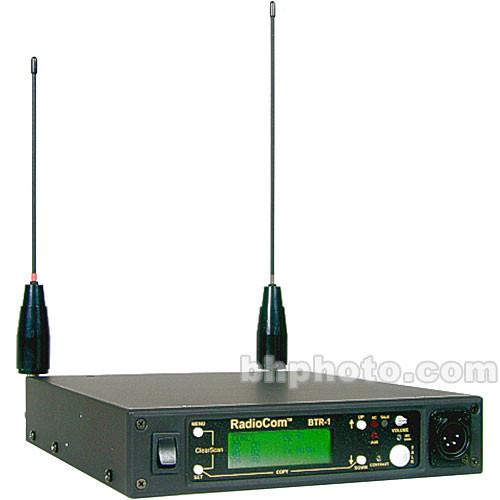

User Manual for Telex BTR-1 - One-to-One UHF Intercom Base Station with Digital Encryption - B4 Click to enlarge the picture
Contents of the user manual for the Telex BTR-1 - One-to-One UHF Intercom
- Product category: Base Stations Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Base Stations
|
User manual for the Telex BTR-1 - One-to-One UHF Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex BTR-1 is a unique professional UHF wireless intercom base station system with a 1-to-1 (one base station to one belt pack) full-duplex, digitally encrypted design, for use in sports or commercial applications. The BTR-1 is equipped with UHF frequency agility, digital audio security encryption, the patented ClearScan channel search, three audio channel capability with 2-wire line mix, signal relay closure, and a base station RF meter. The bright, backlit LCD display of the BTR-1 offers an intuitive graphical user interface, and the unit offers the advanced technology of Intelligent Power Control, DSP Digital Audio Processing and proprietary digital audio encryption, providing clean sound and secure communications at a high professional level. - Wireless one-to-one UHF intercom Base Station with frequency agility, full-duplexing, digital security encryption, and huge selection of available frequencies organized in independent 18 MHz bands
- CAN Bus remote network connectivity
- Factory selected preset frequency groups, 1000' operating range, Transmit power level switch
- Six channels of 2-wire intercom access, relay contact closure for base station with remote beltpack activation feature
- Telex or RTS front panel 4-pin headset connector reads dynamic or electret headset boom mic type automatically
- Enhanced ClearScan two-button frequency selection for optimal, interference- and intermodulation-free location use, ranks available frequencies in order of reliability
- Frequency change from base station or beltpacks
- Large backlit LCD, transparent, menu-driven Graphic User Interface for simplified navigation and assignment
- Full function Talk/Listen headset station with dedicated headset and boom mic volume and gain controls ,allows for fifth simultaneous user(director, producer, engineer) on intercom channel
- Compatibility with Audiocom, Clear-Com, RTS/RTS matrix wired and wireless intercoms, dedicated 2-wire XLE and 4-wire RJ-11 connectors
- AC or DC operation in 12 to 15 Volt range
- Table top or rackmount placement with supplied rackmount kits
In the Box Telex BTR-1 - One-to-One UHF Intercom Base Station with Digital Encryption - B4 BTR-1 Base Station In-Line Power Supply 2 x 1/2 Wave Antennas Gain Adjust Plastic Screwdriver Large Phillips Pan Head Screwdriver Small Phillips Pan Head Screwdriver Single Unit Rackmount Bracket Dual Unit Rackmount Bracket Dual-Terminal Plug 4 x Rubber Feet 15-pin Interconnect Cable Owner's Manual Warning Card 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BTR-1 - One-to-One UHF Intercom Base Station with Digital Encryption - B4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BTR-1 Specs | | | System Modulation | FM | | Frequency Range | 482 - 608 MHz in 18 MHz TX/RX Bands
614 - 746 MHz in 18 MHz TX/RX Bands | | Operating Range | Up to 1000'(Line of Sight) | | Tuning | 0.005%, Synthesized IF's | | Power | 12-15VAC @1 Amp | | Battery Life | Not Applicable | | Charging Time | Not Applicable | | FCC License | Part 74, B5DM519
License Required | | | | Output | 50mW typical (high)
5mW (normal) | | Deviation | Complies with FCC 74.861 | | Modular Distortion | <1% @full deviation | | | | Sensitivity | <0.8 uV for 12 dB SINAD | | IF Bandwidth | Not Specified by Manufacturer | | Image Rejection | >70dB | | Controls and Indicators | Front Panel:
1 x Power Switch
2 x Menu and Set Buttons
2 x Up and Down Buttons
1 x Contrast Adjust Trim
1 x Talk Button
1 x Talk Light
1 x Microphone Gain Trim
1 x Auxiliary Peak Level LED
1 x Peak Intercom Level In/Out LED
1 x Headset Volume Control
1 x Backlit LCD Display | | Connectors | Front Panel:
1 x 4-pin Male XLR Telex Headset Connector*
Rear Panel:
2 x Female Color-Coded TNC Transmit/Receive Connectors
4 x Male/Female 3-pin XLR 2-Wire Intercom Connectors
2 x 15-pin D-Sub Loop Thru
1 x RJ-11 4-Wire Intercom Port
1 x RJ-11 Auxiliary Audio Connector
2 x RJ-45 Remote CAN Bus Connectors
1 x Phoenix Plug Relay Connector 1 x IEC Power Receptacle
*Also available as 4-pin Female XLR for RTS Headsets | | Antenna | 2 x 1/2 Wave, TNC Connector | | Dimensions | 8.25 x 1.7 x 9" (209 x 44 x 229mm) | | Weight | 3.8 lb (1.6 kg) |
