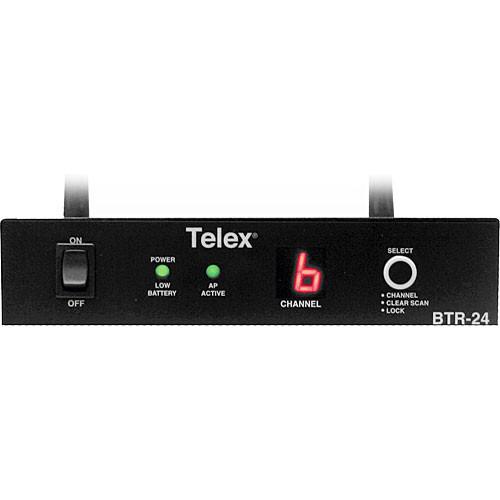

User Manual for Telex BTR-24 - 2.4GHz Multi-Channel Wireless Base Station Access Point Click to enlarge the picture
Contents of the user manual for the Telex BTR-24 - 2.4GHz Multi-Channel Wireless
- Product category: Base Stations Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Base Stations
|
User manual for the Telex BTR-24 - 2.4GHz Multi-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The BTR-24 from Telex is a wireless base station access point that can support up to 10 TR-24 beltpacks in full-duplex mode, and an unlimited number of listen-only users. This multi-channel base station uses the license-free 2.4GHz IEEE 802.11b WiFi standard. The unit has a built-in lithium ion battery that offers up to 10 hours of continuous operation. It can also run via wall power.
The BTR-24 system offers three audio channels, which are selectable from each beltpack. Your privacy is ensured thanks to 64-bit audio encryption. The ClearScan feature automatically scans and selects the best RF channel for communication when the system is started. - Easy-to-use wireless base station
- Can be rack mounted or stand alone
- Supports up to 10 beltpacks in full-duplex mode, or an unlimited number of beltpacks in listen-only mode
- Wireless range of up to 800' line-of-sight with beltpacks
- Operates on 2.4GHz IEEE 802.11b WiFi standard
- ClearScan function automatically scans and selects a clear RF channel
- Operates for up to 10 hours on internal battery. Can also run off of wall power
- Three audio channels, selectable at each beltpack
UPC: 800549445276 In the Box Telex BTR-24 - 2.4GHz Multi-Channel Wireless Base Station Access Point Rack Mounting Hardware Power Supply 2 x Antennas 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BTR-24 - 2.4GHz Multi-Channel Wireless Base Station Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BTR-24 Specs | Technology | 2.4GHz, IEEE 802.11b Wireless LAN Standard (WiFi) | | FCC License | None Required | | Number of Users | 2-10 Users Per Base Station, Full-Duplex Mode
Unlimited, Listen-Only | | Encryption | 64-bit (DES) Encryption Key | | Battery Type | Internal Lithium Ion Rechargeable | | Battery Life | 8-10 Hours (8 Hour Charge Time) | | Frequency Response | 400Hz - 5.5kHz | | Dynamic Range | >75dB | | Antenna | External TNC-RP | | Indicators | 1 x Power/Battery Status Indicator
1 x AP Active Indicator
1 x 7-Segment LED Channel Indicator | | Dimensions (LxWxH) | 6 x 7.5 x 1.7" (152 x 191 x 43mm) | | Weight | 2.7 lbs (1.2kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 18.1 x 11.4 x 3.9" |
