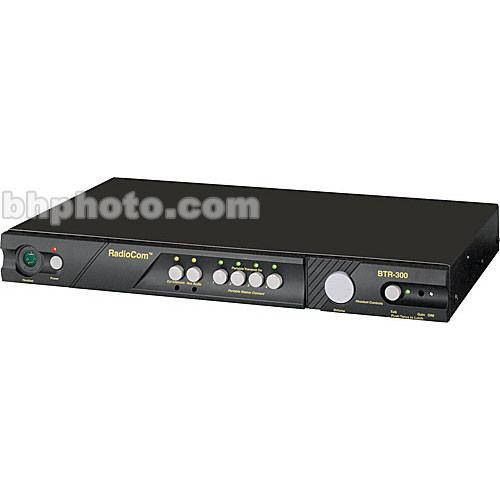

Product description The Telex BTR-300 is a VHF wireless intercom Base Station, featuring simultaneous, full-duplex support of up to 4 remote stations and 16 beltpack transceivers, and features a 2000' (beltpack to beltpack) operating range. The higher VHF frequency allocation and advanced front-end RF filtering have been acquired and designed to avoid DTV operating bands and minimize localized RF interference on location. The BTR-300 features a comprehensive set of controls, switches and connectors facilitating use with both wired and wireless intercoms (including 4-wire stations), PA systems, and recording devices. Both Telex and RTS headsets, equipped with either electret or dynamic boom microphones, may be used. The BTR-300 is a fully professional base station in design and construction, and a versatile solution as either the basis of an independent wireless intercom system, or as an expansion unit for an existing one. - Flexible, full-duplex VHF wireless intercom Base Station with simultaneous communications support of up to 4 portable and wired stations and 16 beltpack transceivers
- Frequency allocation designed to avoid DTV band allocations, greatly reduce interference with improved "high-Q" front-end RF filtering and unique channel assignments
- Computerized frequency selection for maximized precision, consistent operability
- Rugged, shielded all-metal casing, table top or rackmount use
- Intercom loop-thru connectors with existing external wired intercom stations, External Intercom switch with dedicated level trim and LED indicator
- Auxiliary audio connectors to PA systems, recording devices and 4-wire intercoms; Auxiliary Enable switch with dedicated level control and LED indicator
- 3-position CONT/OFF/REMOTE transmit mode switch allows base station to be used solely as monitor, as full transceiver with transmitter always engaged, or as transmitter activated only by remote portable activity
- Dedicated RF indicator lights for each remote portable station, individual Portable Enable In/Out switches allow individual monitoring for In position, individual muting for selected station in Out position
- Telex or RTS Headset connectors with dedicated headset volume control
- Adjustable headset microphone trim control with gain compressor for overload protection, dedicated gain light indicator
- Local external speaker out jack with volume trim control
- Headset mic selector switch for electret or dynamic microphone use, separate Mic Push-To- or Lock-To-Talk local headset microphone enabler switch
In the Box Telex BTR-300 - VHF Wireless Intercom Base Station - 710B 2 x 5/8 Wave Antennas 12 V AC/DC 700 mA Power Supply Rack Mounting Hardware Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BTR-300 - VHF Wireless Intercom Base Station - 710B in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BTR-300 Specs | System Modulation | FM | | Frequency Range | 150 - 216 MHz | | Operating Range | Up to 2000'(line of sight, beltpack to beltpack) | | Tuning | Crystal Controlled, 0.005% | | Power | 12 - 15 V AC/DC | | Battery Life | Not Applicable | | Charging Time | Not Applicable | | FCC License | Notification under FCC Part 15 | | Output | 50 mW Typical | | Deviation | 3 kHz | | Modular Distortion | <1% at Rated Output | | Sensitivity | <0.5 uV for 12 dB SINAD | | IF Bandwidth | Not Specified by Manufacturer | | Image Rejection | 65 dB or better | | Controls and Indicators | Front Panel:
1 x Power On/Off Switch
1 x Power On LED Indicator
1 x External Intercom Switch
1 x External Intercom Level Control
1 x External Intercom LED Indicator
1 x Auxiliary Audio Enable Switch
1 x Auxiliary Audio Level Control
1 x Auxiliary Audio LED Indicator
1 x Headset Mic On Switch
1 x Headset Volume Control Knob
1 x Local Push-to-Talk LED Indicator
1 x Local Microphone Gain Control
1 x Overmodulation LED Indicator
4 x Portable Transmit/Station Enable Switches
4 x Portable Enable LED Indicators
Rear Panel:
1 x 3-Position Transmit Switch
1 x Headset Microphone Select Switch
1 x External Speaker Volume Control | | Connectors | Front:
1 x 4-pin XLR Male Telex Headset Connector*
Rear:
2 x Color-Coded Transmit/Receive Antenna Connectors
1 x 3-pin XLR Female Auxiliary Input
1 x 3-pin XLR Male Auxiliary Output
1 x 3-pin XLR Female Intercom In
1 x 3-pin XLR Male Intercom Out
1 x 1/4" 8 Ohm External Speaker Out
1 x 12 V AC/DC Power In
*Also available with 4-pin XLR Female Connector for RTS Headsets | | Antenna | 2 x 5/8 Wave*
SO239 Connector on Chassis
*Transmit and Receive | | Dimensions | 15.75 x 1.75 x 10.5" (400 x 45 x 260mm) | | Weight | 4.5 lb (2 kg) |
