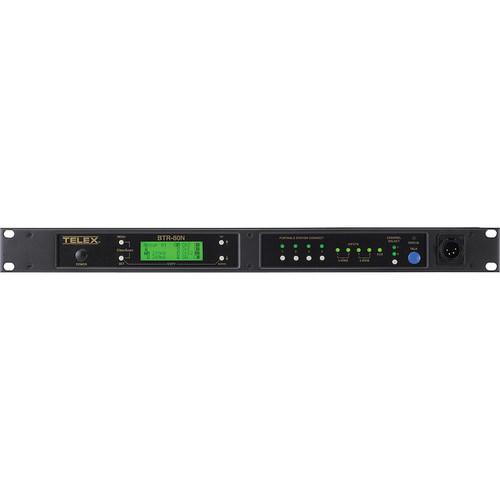

User Manual for Telex BTR-80N 2-Channel UHF Base Station Click to enlarge the picture
Contents of the user manual for the Telex BTR-80N 2-Channel UHF Base Station
- Product category: Base Stations Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Base Stations
|
User manual for the Telex BTR-80N 2-Channel UHF Base Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex BTR-80N 2-Channel UHF Base Station (A4M Telex, F3: 482-500MHz Transmit/650-668MHz Receive) is a 2-channel, frequency-agile UHF wireless intercom base station with channel access from each of 4 full-duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), the patented Enhanced ClearScan channel search feature, and a talk/listen headset station at the base.
The BTR-80N features a transparent graphical user interface and a backlit display, with advanced technology functions such as combination tone code/RF noise squelch and DSP digital audio processing.
This unit has an A4M Telex headset jack and works on F3: 482-500MHz Transmit/650-668MHz Receive frequencies. - Improved narrow band wireless delivers an unprecedented 25kHz of modulated band width, allowing more users per channel in the cramped UHF spectrum.
- Wireless UHF intercom base station with frequency agility, full-duplexing, and huge selection of available frequencies organized in independent 18 MHz bands
- Factory selected preset frequency groups, 1000' operating range, Transmit power level switch
- Independent front Portable Station enable/disable buttons with LED status indicators, front panel headset connector reads dynamic or electret headset boom mic types automatically
- Enhanced ClearScan 2-button frequency selection for optimal, interference- and intermodulation-free location use, ranks available frequencies in order of reliability
- Simultaneous support of up to 4 beltpacks, expandable
- Large backlit LCD, transparent, menu-driven graphic user interface for simplified navigation and assignment
- Full function talk/listen headset station with dedicated headset and boom mic volume and gain controls ,allows for fifth simultaneous user(director, producer, engineer) on intercom channel
- Compatibility with Audiocom, Clear-Com, RTS/RTS matrix wired and wireless intercoms, dedicated 2-wire XLE and 4-wire RJ-11 connectors
- Dual voltage power supply for international use, XLR balanced auxiliary audio input and output connectivity
UPC: 800549296007 In the Box Telex BTR-80N 2-Channel UHF Base Station (A4M Telex, F3: 482-500MHz Transmit/650-668MHz Receive) Power Cord 2 x Antennas Screwdriver 2 x SA Relay Terminal Plugs 4 x Rubber Feet Owner's Manual Warning Card 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex BTR-80N 2-Channel UHF Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BTR-80N Specs | | | System Modulation | FM | | Frequency Range | F3: 482-500MHz Transmit/650-668MHz Receive | | Operating Range | Up to 1000' (line of sight) | | Tuning | 0.005%, Synthesized IFs | | Power | 100-240VAC, 50/60Hz, IEC receptacle | | FCC License | Part 74
License required | | | | Output | 100mW max | | Deviation | 40kHz | | Modular Distortion | <1% @ full deviation | | | | Sensitivity | < 0.8uV for 12dB SINAD | | IF Bandwidth | Not specified by manufacturer | | Image Rejection | > 70dB | | Controls and Indicators | Front Panel:
1 x Power switch
2 x Menu and set buttons
2 x Up and down buttons
4 x Portable station enable/disable buttons
3 x 2-wire, 4-wire, select wired intercom control LED buttons
2 x Intercom in/out switches
2 x Auxiliary interface enable LED buttons
2 x Auxiliary in/out switches
1 x Headset volume control
1 x Headset microphone gain control
1 x Talk button
1 x Backlit LCD display
1 x Talk/overmod LED indicator
4 x Portable station status LED indicators
Rear Panel:
1 x Transmit power high/norm switch
1 x Transmit on/fff switch
1 x 3-way Telex, RTS, Clear-Com I/C select switch | | Connectors | Front Panel:
1 x A4M Telex headset jack
Rear Panel:
2 x Female color-coded TNC transmit/receive connectors
2 x Male/female 3-pin XLR 2-wire intercom connectors
1 x RJ-11 base station link jack
2 x Male/female 3-pin XLR auxiliary audio I/O connectors
1 x 3-pin XLR male stage announce out
1 x IEC power receptacle | | Antenna | 2 x 1/2 wave, TNC connector | | Dimensions | 19 x 1.7 x 14" (483 x 44 x 356mm) | | Weight | 7.2 lbs (3.2kg) | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 22.8 x 16.4 x 5.2" |
