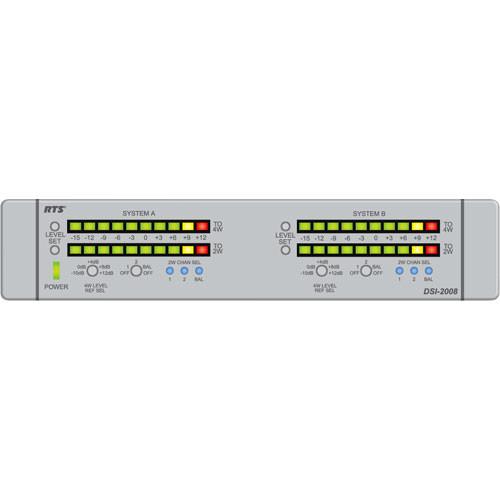

User Manual for Telex DSI-2008U Digital System Interface System-to-Stem Adapter with Call Light Click to enlarge the picture
Contents of the user manual for the Telex DSI-2008U Digital System Interface System-to-Stem
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex DSI-2008U Digital System Interface System-to-Stem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The DSI-2008U from Telex is a digital system interface and system-to-system adapter that allows you to interface a pair of 2-wire intercom lines to a pair of 4-wire lines, as well as interface balanced and unbalanced 2-wire lines. Advanced digital processing automatically nulls 2-wire lines, eliminating the need for test tones, nulling adjustments, and ducking adjustments.
The system has LED peak level meters for convenient level matching between interfaced lines. The system is Clear-Com compatible and has a direct ADAM/Zeus Audio connection. The system consists of 2 independent, transformer-isolated hybrids for outstanding performance. The built-in call light board provides additional compatibility with RTS 2-wire and Telex Audiocom systems. The universal power pack provides worldwide operation. - Rackmount design for convenient installation
- Allows you to interface a pair of 2-wire intercom lines to a pair of 4-wire lines, as well as interface balanced and unbalanced 2-wire lines
- Advanced digital processing automatically nulls 2-wire lines, eliminating the need for test tones, nulling adjustments, and ducking adjustments
- LED peak level meters provide convenient level matching between interfaced lines
- 2 independent, transformer-isolated hybrids for outstanding performance
- Direct ADAM/Zeus Audio connection
- Built-in call light board provides additional compatibility with RTS 2-wire and Telex Audiocom systems
- Universal power pack provides worldwide operation
UPC: 701001086269 In the Box Telex DSI-2008U Digital System Interface/System-to-Stem Adapter with Call Light Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex DSI-2008U Digital System Interface System-to-Stem Adapter with Call Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex DSI-2008 Specs | Frequency Response | 200Hz - 5kHz, ±3dB | | Signal to Noise Ratio | -70dB, Nominal | | Crosstalk | -80dB, Nominal | | Input Impedance | 5 kOhms (2-Wire)
10 kOhms (4-Wire) | | Output Impedance | 5 kOhms (2-Wire)
200 Ohms (4-Wire) | | Power | 100-250VAC, 50/60Hz, 18W | | Dimensions (HxWxD) | 1.75 x 8.2 x 8.25" (45 x 208 x 210mm) | | Weight | 2.9 lbs (1.32kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 4.2" |
