User Manual for Telex ES-4000A - 4-Channel Wired Intercom Expansion User Station Click to enlarge the picture
Contents of the user manual for the Telex ES-4000A - 4-Channel Wired Intercom
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex ES-4000A - 4-Channel Wired Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|

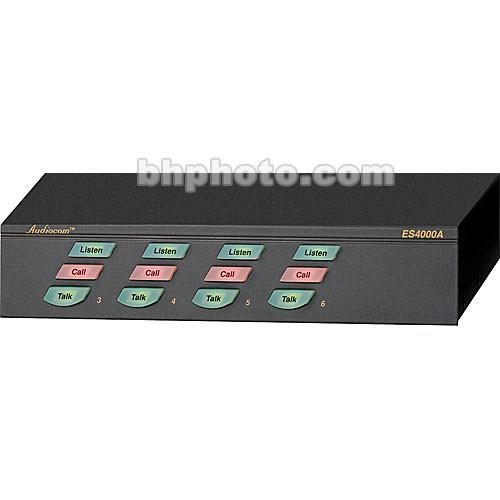

Product description The Telex ES-4000A is a 4-channel, full-duplexing wired intercom user station. Up to 4 units may be connected to the US-2002 user station for a total of 16 additional channels. The ES-4000A offers backlit function keys, speaker outputs, standard XLR or DB9 program inputs, and overload and short-circuit protection and fault indication. The ES-4000A features Clear-Com compatibility for integration with existing systems, flexible self-contained or in-line powering options, tabletop or rackmount use, and professional, rugged construction. - Multi-Channel User wired expansion Intercom Station with full duplexing and call capability
- Separate channel outputs on D-sub connector with, separate program level trims
- Backlit Listen, Call and Talk keys for each channel
- Expansion output for connection to additional units, up to 16 additional channels supported
- Red, flashing Incoming Call light indications with selectable beep tone
- Mic Kill Key turns off all microphones on channel for quick channel clearance
- Separate Program Input for each channel allows connection to line level audio sources for headset or speaker monitoring or routing to intercom channel; assignable interrupt for to-channel audio while speaking on channel
- Intercom Channel unbalanced operation mode for Clear-Com compatibility; dedicated Balanced/Unbalanced operation mode switch
UPC: 800549426183 In the Box Telex ES-4000A - 4-Channel Wired Intercom Expansion User Station 2 x Termination Plugs 1/8" EXP In/Out Cable 15-pin D-sub Channel Output Cable 4 x Rubber Feet Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex ES-4000A - 4-Channel Wired Intercom Expansion User Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex ES-4000A Specs | Output Connectors | 4 x RCA Phono Speaker Out Jacks
1 x 1/8" Stereo Mini Expansion Out Jack
1 x 15-pin D-Sub Ch. 3-6 Outputs | | Input Connectors | 1 x DB9F Program Input
1 x 12-15 VDC Power In
1 x 1/8" Stereo Mini EXP In | | Output Level | Program Input: 1.0 Vrms nominal, 2.3 Vrms maximum
Intercom Channels, Balanced Mode: 1.0 Vrms nominal
Intercom Channels, Unbalanced Mode: 1.0 Vrms +/-10%
PA Output: 235 mVrms nominal
Speaker Output: 0 db(1.0 Vrms)nominal | | Input Level | Program Input: 100 mV Maximum | | Input Impedance | Program Input: 75 kOhms
Intercom Channels, Balanced Mode: 300 Ohms
Intercom Channels, Unbalanced Mode: 150 Ohms | | Frequency Response | 200 Hz - 8 kHz +1/-3 db | | THD + N | <0.2% at Channel Output | | Minimum Common Mode Rejection | >50 dB(Program Input/Intercom Channels, Balanced Mode) | | Voltage Gain | Program Input: 25 +/-3 dB | | Voltage Output | 24 VDC | | Call Signaling | Send: 20 kHz +/-100 Hz, 0.5 Vrms +/-10%
Receive: 20 kHz +/-800 Hz, 100 mVrms | | Sidetone | Intercom Channels, Balanced Mode: -40 dB, 35 dB range | | Microphone Type | No | | Microphone Input | No | | Phantom Power | Yes, 24 VDC Nominal | | Headset Connector | No | | Maximum Current Capacity | Not Specified by Manufacturer | | Maximum # of Belt Packs | Not Applicable | | Input Power Requirement | 100 - 240 Volts, 50/60 Hz | | Power Adapter | 12 - 15 VDC, 65 to 150 mA | | Dimensions | 1.75 x 8.25 x 10.31" (44.5 x 209.5 x 261.9mm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 12.6 x 11.7 x 3.1" |
