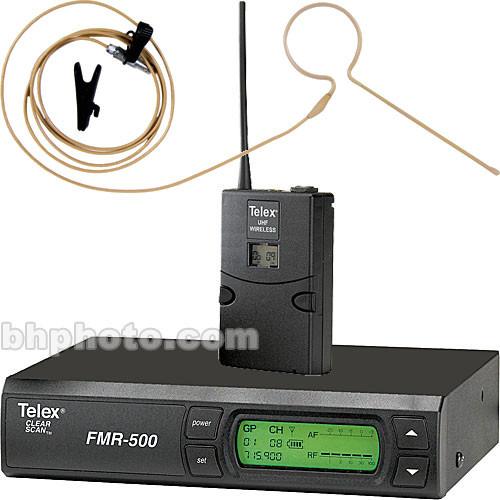

User Manual for Telex FMR-500 Wireless Headset Microphone System - Includes: FMR-500 Receiver, WT-500 Belt-Pack Transmitter and RE97 Headset Microphone Click to enlarge the picture
Contents of the user manual for the Telex FMR-500 Wireless Headset Microphone System
- Product category: Wireless Systems Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wireless Systems
|
User manual for the Telex FMR-500 Wireless Headset Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex FMR-500 series wireless microphone systems provide professional UHF flexibility and quality while remaining affordable. The FMR-500 systems deliver a professional feature set that includes UHF operation, 1,112 selectable frequencies and Clear Scan automatic channels selection. The FMR-500 system is available as a handheld, belt-pack or combination system, this system includes the FMR-500 receiver, WT-500 Belt-Pack and RE97 miniature headset microphone.The FMR-500 receiver is a half-rack mount unit that features diversity reception, resulting in minimal RF drop-out and interference. The FMR-500 features balanced XLR and 1/4" phone outputs and the back-lit LCD display provides, transmitter battery status, channel and frequency, diversity status, radio frequency and audio level. The Clear Scan auto channel selection allows quick setup, transmitter matching, and new channel selection if RF conditions change.The WT-500 belt-pack is light weight and operates on a single 9 volt battery. The transmitter features a TA4-male connection that is capable of accepting microphone or line level signal. The WT-500 also features an LCD display for monitoring status on all system parameters. Overall the FMR-500 series is more than suitable for fixed sound reinforcement in schools, clubs, theaters, rental houses and more. - RE97 Head Worn Microphone
- The slim, ultra low-profile RE97 features flexible adjustment, right or left ear configuration and an omni-directional polar pattern for a uniform pick up of direct and off-axis audio.
- Moisture Resistant
- The RE97 resists moisture, protecting the element against damage due to perspiration, humidity, etc.
- Frequency Agile UHF
- The receiver and transmitter both operate over UHF frequencies. The system is frequency agile providing over 1,112 possible, user programmable frequencies in 25kHz steps.
- Diversity Reception
- The FMR-500 receiver features dual internal receivers, set to the same frequency. Enhanced DSP allow both receivers to compete for the strongest reception without interference, noise or drop-out.
- Advanced ClearScan
- Advanced ClearScan technology allows quick, easy frequency setup. Channels are scanned and the clearest channels within the clearest preset groups are automatically selected.
In the Box Telex FMR-500 Wireless Headset Microphone System - Includes: FMR-500 Receiver, WT-500 Belt-Pack Transmitter and RE97 Headset Microphone (Brown) (Band A - 648 - 676MHz) FMR-500 Diversity Receiver 2 x WT-500 Belt-Pack Transmitter 2 x RE97 Miniature Head-worn Microphones 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex FMR-500 Wireless Headset Microphone System - Includes: FMR-500 Receiver, WT-500 Belt-Pack Transmitter and RE97 Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex F.01U.144.712 Specs | | | Type of System | Frequency Agile UHF Headset | | RF Carrier Frequency Range | Band A - 648 - 676MHz | | Approx. Working Range | not specified by manufacturer | | Overall Frequency Response | 50Hz to 15kHz +/- 2dB | | Signal-to-Noise Ratio | > 100dB A Weighted | | # Of Channels | 1,112 in 25kHz steps | | # Of Simultaneous Systems | 10 | | | | Type of Receiver | FMR-500 UHF Diversity | | Type of Outputs | Balanced 3-pin XLR
Balanced 1/4" Phone | | Headphone Monitoring | No | | Power Requirements | 12v AC/DC 300mA | | Battery Type/Approx. Life | AC Power Only | | Display | Backlit LCD - Group/Channel, Frequency, Transmitter Battery, Diversity Status, RF and Audio Level Meters | | Mounting Options | Includes single and dual rack mount hardware with front mount antenna cables | | Antenna Type | Fixed Length Dual BNC Diversity UHF | | Dimensions | 1.72 x 7.5 x 5.9" (43.69 x 190.50 x 150mm) (HxWxD) | | Weight | not specified by manufacturer | | | | Type of Transmitter | WT-500 UHF Belt-Pack | | Type of Input Connector | TA4 (mini 4-pin) | | Type of Microphone | RE97 Miniature Head-worn Microphone | | Polar Pattern | Omni-directional | | Interchangeable Mic Heads | Compatible with Telex / Electro Voice microphones with TA4 connection | | Battery Type/Approx. Life | 9 Volt Battery | | Mute Switch | Single Button On/Off Switch | | Level Control | not specified by manufacturer | | Antenna Type | Flexible external 1/4 wave | | Display | LCD Display | | Dimensions | 3.8 x 2.38 x .92" (96.5 x 60.5 x 23.4mm) (HxWxD) | | Weight | not specified by manufacturer |
