User Manual for Telex IC-100 - 6-Channel Intercom Source Assign Panel for Audiocom Click to enlarge the picture
Contents of the user manual for the Telex IC-100 - 6-Channel Intercom Source
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex IC-100 - 6-Channel Intercom Source contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|

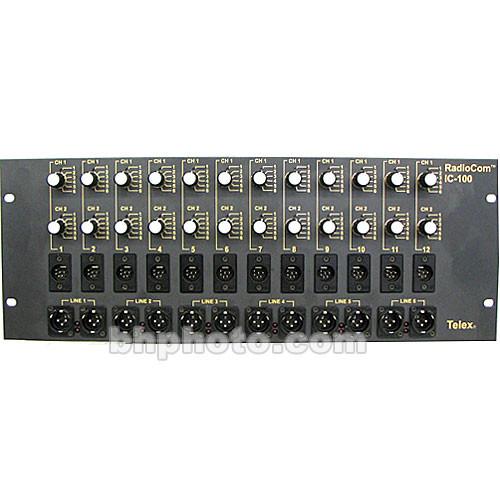

Product description The Telex IC-100 is a six-channel intercom source assign panel that allows any two of six input lines to be assigned to any one of twelve two-channel inputs. The six input lines are also available as loop through outputs and are protected against transients and power crosses. Front-panel rotary switches allow reconfiguration without channel cross-connection. In the Box Telex IC-100 - 6-Channel Intercom Source Assign Panel for Audiocom 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex IC-100 - 6-Channel Intercom Source Assign Panel for Audiocom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex IC-100 Specs | Bridging Impedance | 44 k ohms (Each Channel) | | Supply Current | 20mA (Each Channel) | | Peak Pulse Capability | 1500W | | Fuse Rating | 1.5A Fast Blow | | Overvoltage Protection | Less than 1.5A Indefinite Duration | | Connectors (Front Panel) | 12 x 6-Pin XLR Assigned Outputs
12 x 3-Pin XLR Loop/Through Outputs | | Connectors (Rear Panel) | 1 x 15-Pin D Sub Input Connector
6 x 3-Pin XLR Input Connectors
6 x 3-Pin XLR Power Supply Input Connectors
2 x 25-Pin D Sub Assigned Output Connectors
1 x 15-Pin D Sub Loop/Through Output Connector
1 x 15-Pin D Sub Power Supply Output Connector
1 x 4-Pin D-Sub External Lines Output Connector | | Dimensions (HxWxD) | 7 x 19 x 5" (178 x 483 x 127 mm) | | Weight | 10 lbs (4.5 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
