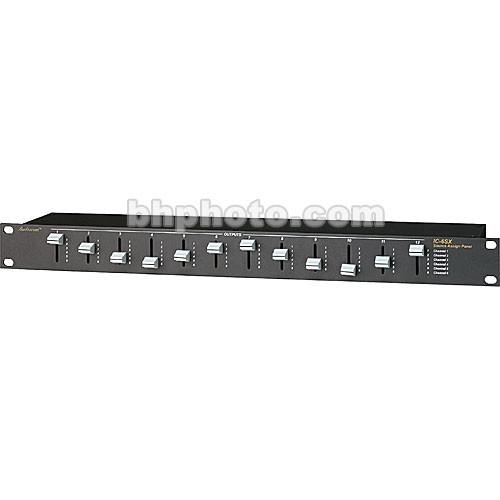

User Manual for Telex IC-6SX - 6-In 12-Out Assignment Router Panel for Telex Audiocom Wired Intercom System Click to enlarge the picture
Contents of the user manual for the Telex IC-6SX - 6-In 12-Out Assignment
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex IC-6SX - 6-In 12-Out Assignment contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex IC-6SX is a professional, passive channel assignment panel, designed for use with that company's Audiocom wired intercom system series. The intuitively arrayed set of front panel switches allows for distribution of up to 6 source signals to 12 destinations; these could be remote stations, beltpacks, and other wired components. Connections are of the standard XLR type. The rear panel Link D-sub connector allows for connection to another IC-6SX, which acts essentially as a 12-output expander. - 1 RU passive rackmount wired intercom source assignment panel
- Standard 3-pin XLR connectors for inputs and outputs
- Link cable connector for dual unit operation, output expansion
- Large front panel assign select switches for simplified settings
UPC: 800549426947 In the Box Telex IC-6SX - 6-In/12-Out Assignment/Router Panel for Telex Audiocom Wired Intercom System Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex IC-6SX - 6-In 12-Out Assignment Router Panel for Telex Audiocom Wired Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex F.01U.118.698 Specs | Matrix Type | Passive, Mechanically Switched | | Inputs | 6 x 3-pin XLR Female, Balanced | | Outputs | 12 x 3-pin XLR Male, Balanced
1 x 15-pin D-Sub Link I/O | | Controls | 12 x Selector Switches | | Power | Not Applicable, Passive Unit | | Dimensions (HxWxD) | 1.75 x 19 x 3.85" (44.5 x 482 x 98mm) | | Weight | 3.44 lb (1.56 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 25.6 x 12.5 x 3.0" |
