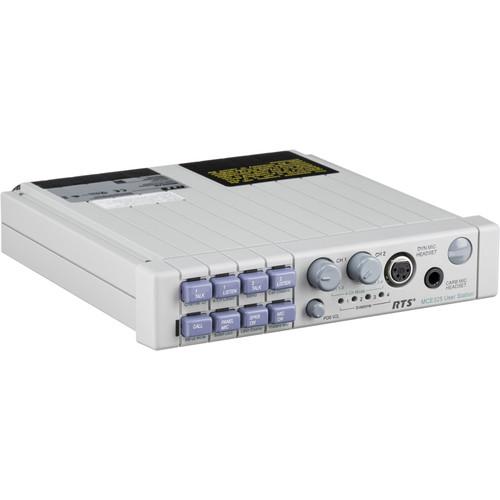

Product description The Telex MCE-325 User Programmable User Station is a 4-channel intercom station used to establish monitoring and communication within an RTS compatible intercom system. The MCE-325 may be used as a headset station or as a speaker station with the optional MCS-325 modular speaker. It's completely compatible with 2 or 4 wire intercom lines (or combination of both). An array of external sources may be interfaced with the MCE-325, including two-way radios, paging systems, satellite circuits and more. - Call Signaling
- Call signaling is accomplished using an inaudible (20 kHz) signal to activate a call indicator LED.
- Instantaneous Auto-Reset
- Instantaneous Auto Reset (IAR), the newest technology in performance and safety, which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up.
- Remote "Talk-Off"
- Active, unattended remote station microphones may be deactivated by momentarily injecting an inaudible (24 kHz) signal into the corresponding intercom line. The MCE-325 can send and receive "talk-off" signals.
- VOX Circuit
- The MCE-325 may be programmed for voice activation of the microphone.
- Simple IFB
- Program audio assigned to a channel is interrupted during talk.
- External Device Keying
- External devices, such as two-way radios, speaker mute relays, or paging systems may be activated through key outputs at the auxiliary connector on the rear panel. The key outputs may also be used to expand the simple IFB function, allowing any one of a number of MCE325 stations to interrupt the program source and talk on the line.
- Microphone Limiter
- The microphone preamplifier circuit contains a limiter, which helps to equalize voice levels.
- Fully Programmable
- Retains programming even when power is shut off.
UPC: 800549319423 In the Box Telex MCE-325 User Programmable User Station (A4F) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex MCE-325 User Programmable User Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex MCE325 A4F Specs | Bridging Impedance | 10,000 ohms typical | | Noise | Noise Contribution to 200-ohm line: -90dB | | Frequency | Call signal frequency: 20kHz, crystal controlled
Talk-off frequency: 24kHz, crystal controlled | | Maximum Voltage Gain | 54dB | | Frequency Response | 100Hz to 8,000Hz, ±3 dB | | Maximum Voltage Gain | Microphone preamplifier: 54dB
Headphone amplifier: 30dB Speaker amplifier: 30dB | | Impedance | Microphone preamplifier input: 1,000 ohms
Headphone impedance: 50 to 600 ohms Speaker impedance: 8 to 18 ohms | | Limiter | 30dB | | Output Voltage | Headphone: 8 Vp-p
Speaker amplifier: 16 Vp-p | | Output Power | 5W into 8 ohms | | Connectors | - Intercom Line Connector XLR type, 3-pin (male-female loop through on two-wire
- Channel 1 and 2, or four-wire channel A; Female only on two-wire channel 3 and 4, or four-wire channel B - Dynamic mic XLR type, 6-pin female
- Carbon mic 1⁄4-inch phone jack, 3-circuit - Auxiliary connector 25-pin, female, D-Sub
- Program inputs 1⁄4-inch phone jack, 3-circuit - Speaker output 1⁄4-inch phone jack, 3-circuit
- Panel mic 1⁄4-inch phone jack, metal busing, 3-circuit | | Material | Thermo-plastic front panel, aluminum case, light gray | | Power Supply | 115 to 230 VAC, 20 VA max, 12 to 25 VDC, 100 to 125 mA quiescent, 900 mA max | | Dimensions (HxWxD) | 1.72 x 8.2 x 8" (44 x 208 x 203mm) | | Weight | 4.25 lbs (1.93kg) | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 17.0 x 11.3 x 4.5" |
