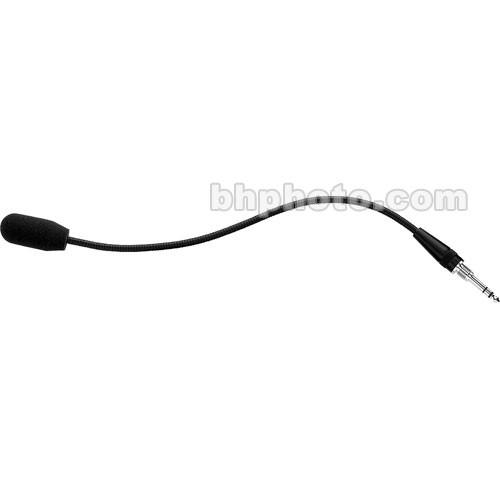

User Manual for Telex MCP-90-12 - 12" Miniature Gooseneck Panel Microphone Click to enlarge the picture
Contents of the user manual for the Telex MCP-90-12 - 12" Miniature Gooseneck
- Product category: Paging & Security Microphones Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Paging & Security Microphones
|
User manual for the Telex MCP-90-12 - 12" Miniature Gooseneck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex MCP-90-12 is a lightweight, phantom-powered miniature gooseneck panel microphone with a TRS output connector that easily mounts to Telex and other RTS keypanels and selected Audiocom wired intercom stations. The MCP-90-12 is outfitted with a back-electret condenser design and a directional cardioid polar pattern, allowing for increased sensitivity, minimal ambient sound pickup, and virtually nullified handling noise. The supplied custom windscreen provides pop filtering, overload protection and response-shaping. - Miniature, ultra-lightweight back-electret condenser gooseneck panel microphone with TRS connector for RTS keypanels and select Audiocom intercoms
- Single-D cardioid back-electret design for improved sensitivity, directivity and intelligibility in keypanel operator and intercom base station communications applications
- Versatile custom windscreen provides pop filtering, response-shaping and prevents overload of microphone
- Full-range frequency reproduction and sound pickup optimized for close-up use and directional pickup pattern
- Accepts wide range of phantom power options from 1.5 to 9 VDC, easily supplied by most communications panels designed with 1/4" inputs
UPC: 800549444774 In the Box Telex MCP-90-12 - 12" Miniature Gooseneck Panel Microphone Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex MCP-90-12 - 12" Miniature Gooseneck Panel Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex MCP-90-12 Specs | Transducer | Dual Condenser, Back-Electret | | Polar Pattern | Cardioid | | Frequency Response | 100 Hz - 15 kHz | | Dynamic Range (Typical) | 102 dB | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Maximum Input Sound Level | Not Specified by Manufacturer | | Power Requirements | 1.5 - 9VDC Phantom | | Output Impedance | Compatible with RTS and Telex Intercom Panels | | Output Connectors | 1 x 1/4" TRS Phone | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 12 x 0.55" (68.6 x 14mm) (Length x Head Diameter) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 20.3 x 2.1 x 1.3" |
