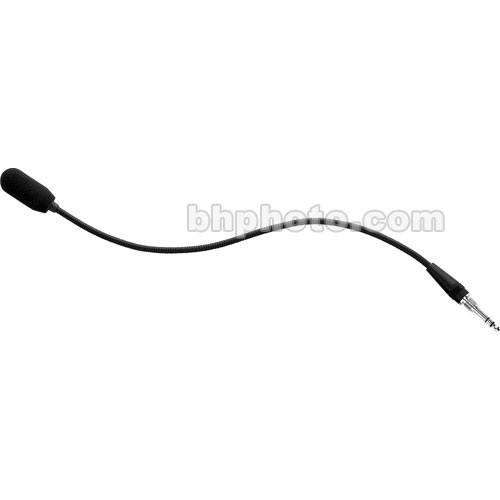

User Manual for Telex MCP90-18 - Panel Mount Gooseneck Microphone for Telex Intercoms - 18" Click to enlarge the picture
Contents of the user manual for the Telex MCP90-18 - Panel Mount Gooseneck
- Product category: Paging & Security Microphones Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Paging & Security Microphones
|
User manual for the Telex MCP90-18 - Panel Mount Gooseneck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The Telex MCP90 is a gooseneck electret condenser microphone, designed for front panel connection to that company's RTS, and several Audiocom, wireless or wired intercom main stations. The wide frequency response and cardioid pickup pattern of the MCP90 allow for optimal speech intelligibility and minimal ambient intrusion. The unique, custom-threaded 1/4" TRS connector allows the microphone to be secured in a screw-like fashion to a main station front panel; the requisite phantom power is provided by the host station, and the mic will operate successfully within a wide 1.5 to 9 Volt range. - Miniature condenser gooseneck mic with proprietary threaded TRS connector for front panel attachment to Telex RTS and select Audiocom intercom stations
- Mic output impedance fully RTS compatible
- Back-electret design feature for greater sensitivity, wider frequency response and lower handling noise
- Frequency response and pickup pattern optimized for close-up use
- 1.5 - 9 Volt phantom power operation
- Supplied proprietary windscreen provides maximum pop filtering, response shaping and overload protection
UPC: 701001036325 In the Box Telex MCP90-18 - Panel Mount Gooseneck Microphone for Telex Intercoms - 18" Foam Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex MCP90-18 - Panel Mount Gooseneck Microphone for Telex Intercoms - 18" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex MCP-90-18 Specs | Transducer | Dual Condenser, Back-Electret | | Polar Pattern | Cardioid | | Frequency Response | 100 Hz - 15 kHz | | Dynamic Range (Typical) | 102 dB | | Signal-to-Noise Ratio | Not specified by Manufacturer | | Maximum Input Sound Level | Not specified by Manufacturer | | Power Requirements | 1.5 - 9 VDC Phantom Power Supply | | Output Jitter | Not specified by Manufacturer | | Output Connectors | 1/4" Threaded TRS Male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Head Diameter: 0.55" (14mm)
Gooseneck Diameter: 0.79" (20mm)
Stem to Head Length: 18" (457.2mm) | | Weight | Not specified by Manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 29.5 x 2.0 x 1.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Telex MCP90-18 - Panel Mount Gooseneck Microphone for Telex Intercoms - 18"
| Subject: Difficult to remove the gooseneck mic. Help or advice needed. | | Date: 19.02.2026 06:20:34 | Name: Joe Matos | | Hi, I picked up an RTS KP-32 intercom and it has a gooseneck MCP90 mic installed, however I can't get it to come off. I read that it is reverse threaded 1/4" TRS, however when I tried by gripping it hard and turning clockwise, it still didn't come off. And turning counterclockwise also didn't come off. It seems stuck and I'm afraid to put too much pressure on it or use a vice grip or pliers to twist it off. Is there a trick to this that I'm missing or why is it so difficult to get off? Thanks for any advice or comment in advance. | | Post reply |
