User Manual for Telex PS-20 Power Supply Click to enlarge the picture
Contents of the user manual for the Telex PS-20 Power Supply
- Product category: Wired Intercoms Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Wired Intercoms
|
User manual for the Telex PS-20 Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|

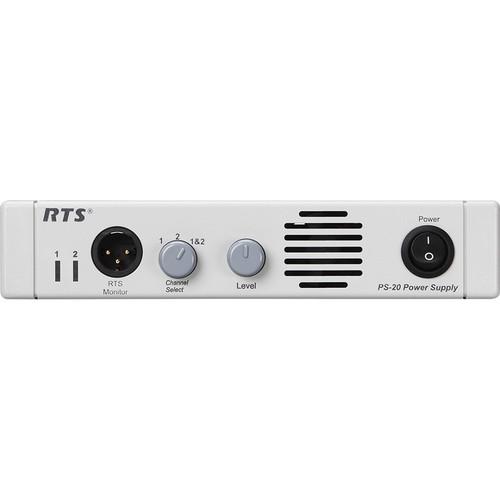

Product description The PS-20 Power Supply from Telex is a versatile power supply that can be used for installed applications. The slim chassis can be mounted in a standard 19" equipment rack for convenience and versatility. The unit features an XLR program input, 4 XLR RTS primary outputs, and 2 1/4" outputs on the rear panel, and an XLR RTS monitor output on the front panel. A small speaker on the front panel also provides monitoring functionality.
The power supply can be used for audio linking, intercom channel connections, and more. The front panel offers a level control and a channel selector knob that lets you choose channel 1, channel 2, or both. There are also LED status indicators for channels 1 and 2. The rear panel lets you choose between CC, RTS/2, and RTS/4 modes, and also lets you switch the impedance between 200 and 400 ohms. Note: Brackets for rack installation are sold separately. - Can be mounted in a standard 19" equipment rack for convenience and versatility
- Ideal for audio linking, intercom channel connections, monitoring, and more
- The unit features an XLR program input, 4 XLR RTS primary outputs, and 2 1/4" outputs on the rear panel, and an XLR RTS monitor output on the front panel
- A small speaker on the front panel also provides monitoring functionality
- The front panel offers a level control, plus a channel selector knob that lets you choose channel 1, channel 2, or both
- LED status indicators are provided for channels 1 and 2
- Controls on the rear panel let you choose between CC, RTS/2, and RTS/4 modes, and also let you switch the impedance between 200 and 400 ohms
UPC: 800549427975 In the Box Telex PS-20 Power Supply Power Cord 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex PS-20 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex PS-20 Specs | Connectors | 1 x XLR RTS program input
4 x XLR RTS main outputs
2 x 1/4" outputs
1 x XLR RTS monitor output
1 x AC power input | | Finish | Grey | | Dimensions (HxWxD) | 1.75 x 8.2 x 8.56" (45 x 208 x 218mm) | | Weight | 5 lbs (2.27kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 17.0 x 11.4 x 4.6" |
