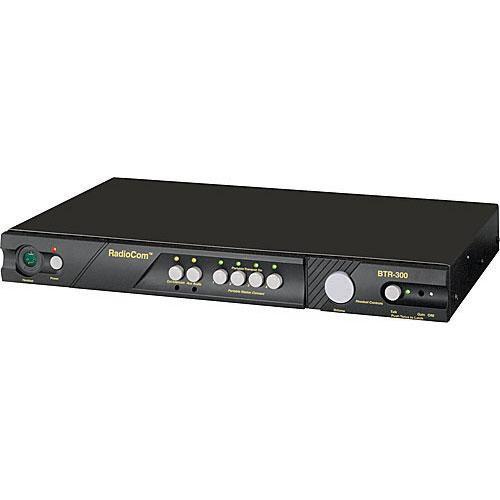

User Manual for Telex RadioCom BTR-300 VHF Fixed Crystal Wireless Intercom Base Station Click to enlarge the picture
Contents of the user manual for the Telex RadioCom BTR-300 VHF Fixed Crystal
- Product category: Base Stations Telex
- Brand: Telex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Telex Base Stations
|
User manual for the Telex RadioCom BTR-300 VHF Fixed Crystal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Telex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Telex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Telex product will considerably shorten its lifespan!
|
Product description The RadioCom BTR-300 from Telex is professional-quality wireless intercom base-station that can operate in full duplex with up to four TR-300 belt pack transceivers. Full duplex operation allows for natural conversation, without having to wait for another user to finish speaking before you can respond. A transmitter and headset input is included on the BTR-300 so the operator can fully communicate with the portable units. An auxiliary input enables you to feed the system with any other audio material you may need, as well as link two BTR-300 base stations together. The BTR-300 has been designed to easily integrate with many kinds of wired intercom systems. Internal switches enable you to accommodate the BTR-300 to work with Clearcom, RTS 2 Wire, and 4 Wire intercoms. This system operates on selected frequencies in the 150 - 216 MHZ VHF band. It has a powerful transmission range of up to 2000' (609.6 meters) when the various transceivers are within line of sight of one another. Its metal enclosure offers superior shielding. When you need a communication system with excellent performance and build quality, the Telex RadioCom BTR-300 will deliver. - Features four receivers to operate up to four TR 300 belt packs with full duplex communication
- One transmitter is built into the BTR-300 with a headset input on the front panel to communicate with the portable belt packs
- Compatible with many other wired intercom manufacturers, designed to interface easily with wired systems
- Powered by an external AC power supply, or any 12V AC/DC 700 mA source
- RF indicator lights on the front panel for each portable belt pack
- Speaker output jack with adjustable volume control
- Metal casing offers superior shielding
- Tabletop or rack mountable operation
In the Box Telex RadioCom BTR-300 VHF Fixed Crystal Wireless Intercom Base Station 5/8-Wave Transmit Antenna 5/8-Wave Receive Antenna Rack Mount Brackets External AC Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Telex RadioCom BTR-300 VHF Fixed Crystal Wireless Intercom Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTelex BTR-300 Specs | Frequency Range | 150 - 216 MHz | | Microphone Input Type | 4-Pin XLR Headset Jack | | Receiver | Dual Conversion Superheterodyne, FM | | Limiter | Internal Compressor | | Signal-to-Noise Ratio | 90 dB | | Distortion | Less Than 1% @ Rated Output | | Image Rejection | 70 dB or Better | | Front Panel Controls and Indicators | External Intercom Button
Auxiliary Audio Button
4 x Portable Transmit On/Portable Station Connect Buttons
Volume Control
Push To Talk Button
Gain Control
Power Button | | Power Requirements | 12V AC/DC 700 mA | | Dimensions | 15.75 x 1.75 x 10.5" (400 x 45 x 260 mm) | | Weight | 4.5 lbs (2 kg) | | | | Package Weight | 10.1 lb | | Box Dimensions (LxWxH) | 20.0 x 14.25 x 5.25" |
